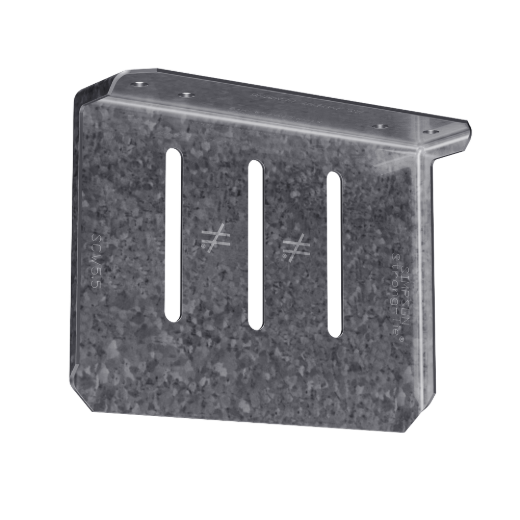

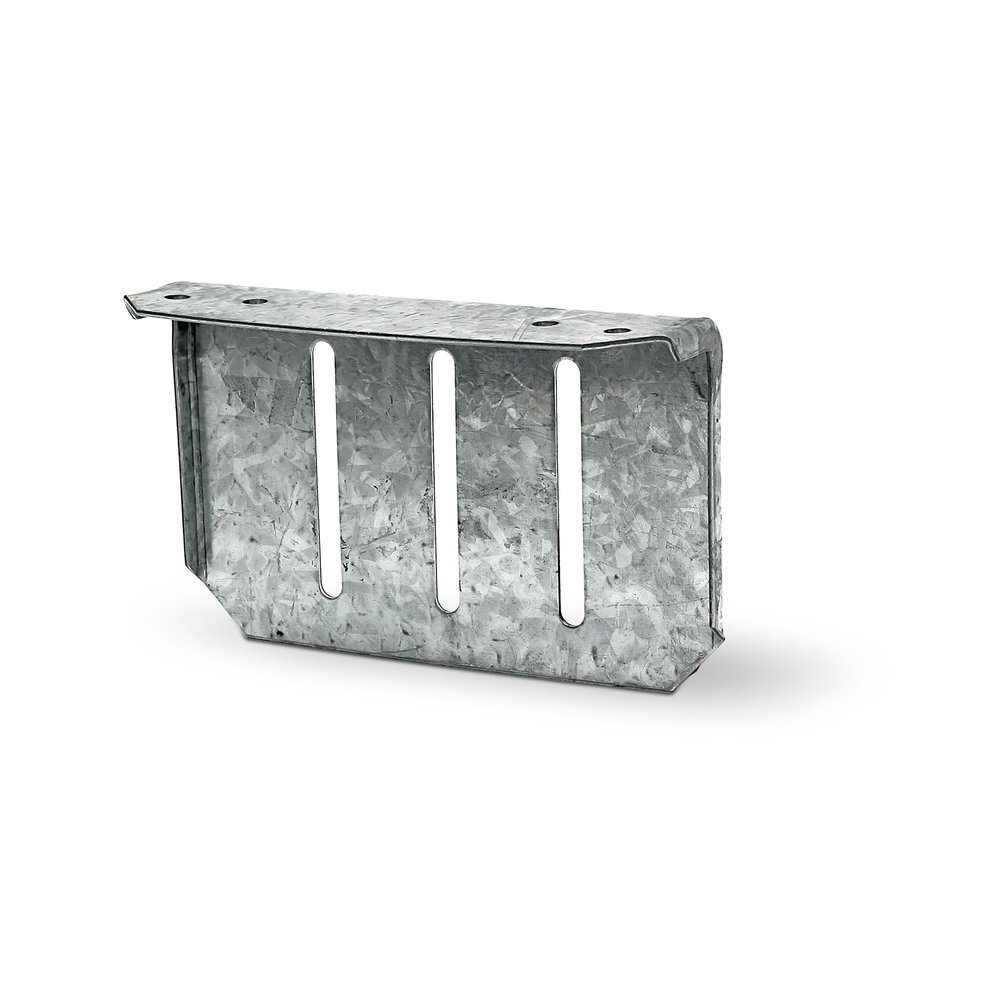

Simpson SCW 5-1/2" Head-of-Wall Slide-Clip Connector w/ Screws - 25/box

Mfr.: Simpson Strong-Tie
Item #: I050747
Mfr. #: SCW5.5-KT
*
Pickup at Corona | Change Delivering to 90001 | Change

Price: $92.60
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

SCW slide-clip connectors are primarily used in head-of-wall applications that require vertical movement relative to the structure. The connector can also be used to strengthen window and door jambs for projects that utilize slip-track. The precision-manufactured shouldered screws provided with the SCW connector are designed to prevent overdriving and to ensure the clip functions properly.
  • Provides a full 1 in. of both upward and downward movement
  • Clips that allow 1-3/8 in. of upward and downward movement are available by special order
  • Anchor holes located to maximize performance
  • Simpson Strong-Tie 'No-Equal' stamps mark the center of the slots to help ensure correct shouldered-screw placement

Features

  • Provides a full 1 in. of both upward and downward movement
  • Clips that allow 1-3/8 in. of upward and downward movement are available by special order
  • Anchor holes located to maximize performance
  • Simpson Strong-Tie 'No-Equal' stamps mark the center of the slots to help ensure correct shouldered-screw placement
  • Width: 5-1/2 in.
  • Made from 54-mil (16-gauge) steel

Includes

  • Precision-manufactured shouldered screws

Specifications


Width5-1/2 inchMaterial54-mil (16-gauge) steel
Products specifications
Code Listing ICC-ES ESR-3006
Country of Origin Varies (subject to change)
Finish / Coating Galvanized (G90)
Manufacturer's Warranty 25 Year Limited
Material Steel
Pack Quantity (25) per Box
Steel Gauge 16 ga
*
*
*
