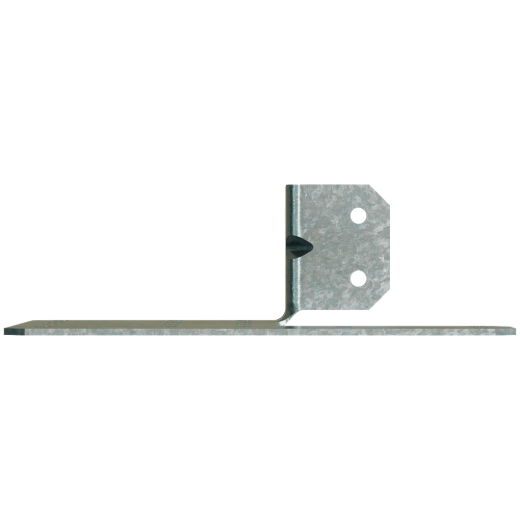

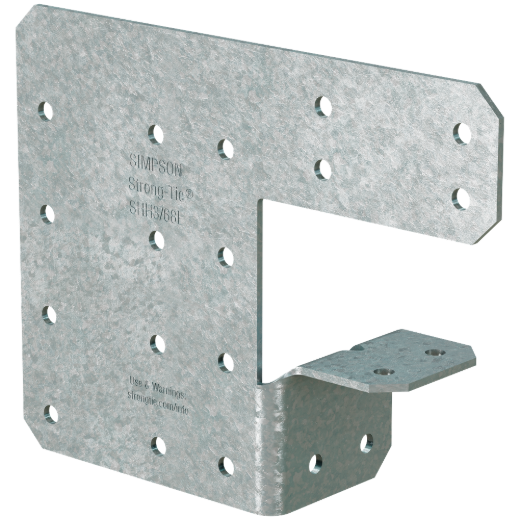

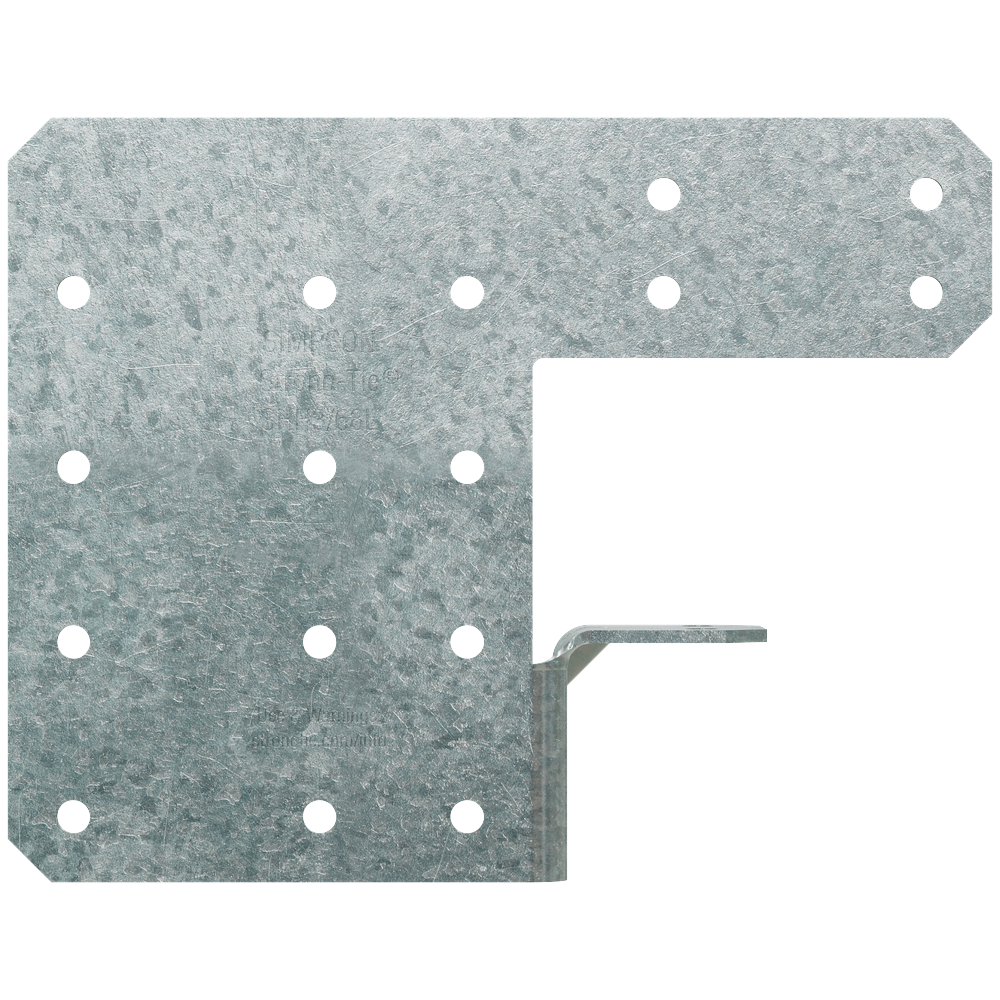

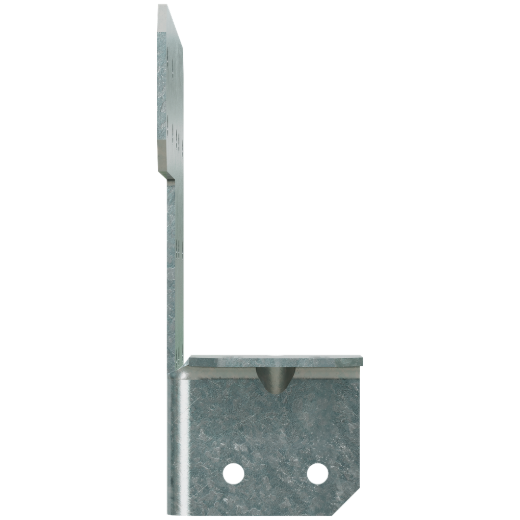

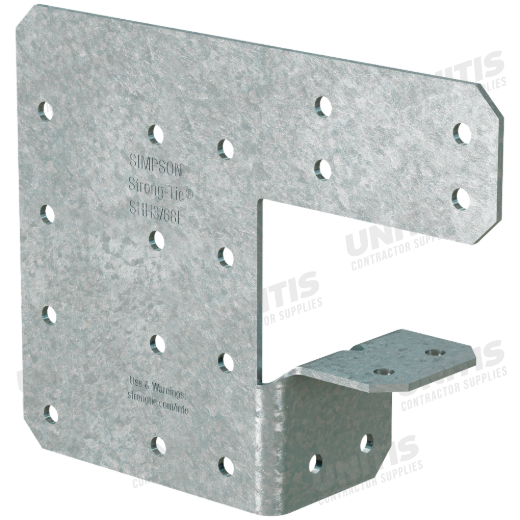

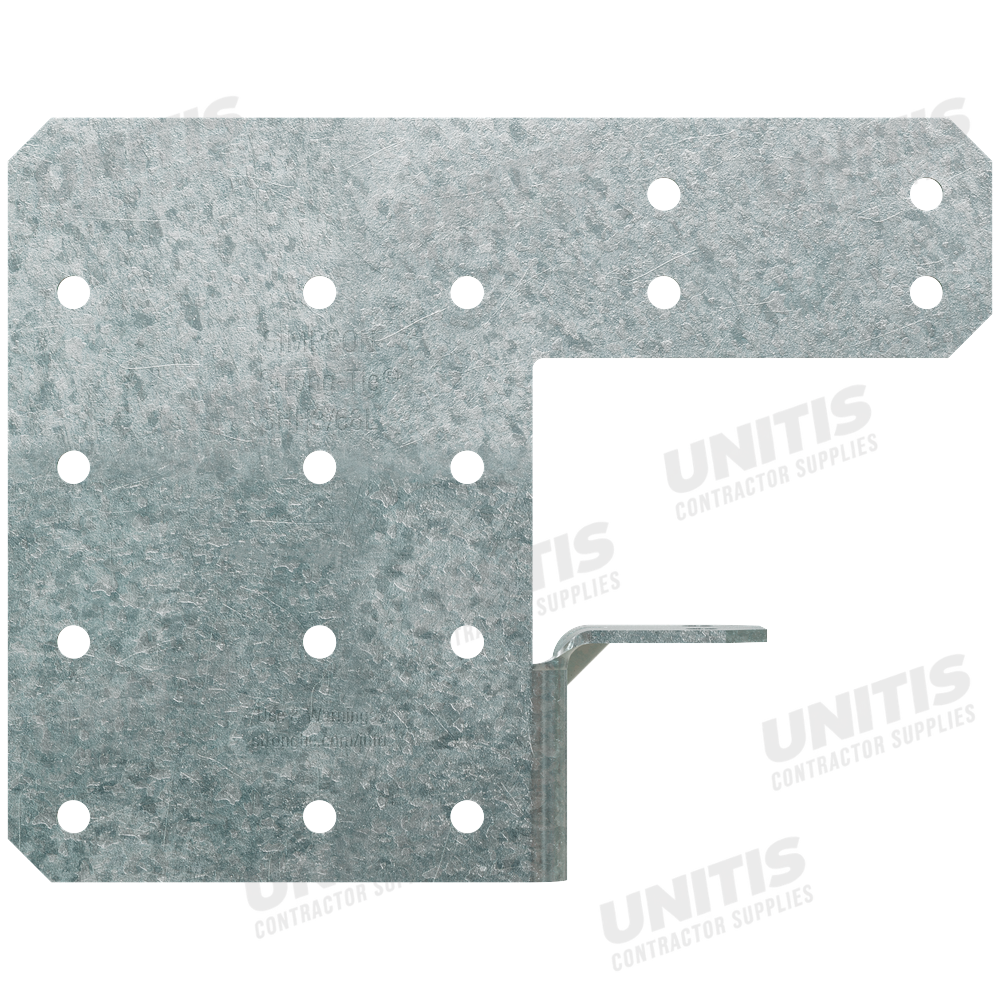

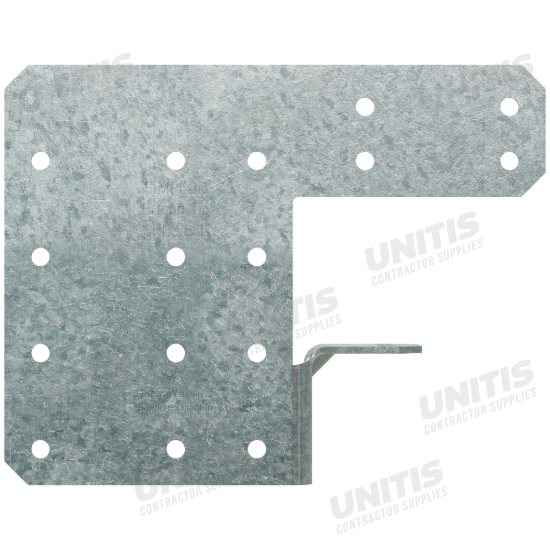

Simpson SHH 4-3/8" x 5-5/8" 68-mil Galvanized Steel Header Hanger - 24/box

Mfr.: Simpson Strong-Tie
Item #: I091925
Mfr. #: SHH3/68-KT24
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $178.25
i h h

Description

The Simpson Strong-Tie SHH steel header hanger is used to support traditional CFS box headers that are fabricated with top and bottom tracks, as well as large-flange lay-in headers that are common in curtain-wall construction. The connector geometry minimizes drywall buildup, and the screw count has been minimized through extensive testing. A wide array of value-engineered hole patterns are available that will accommodate different load levels while minimizing installed cost.
  • Bottom tabs transfer wind load and support header assembly during installation
  • Tabulated loads based on component assembly testing to mitigate design risk
  • Gusset coped to avoid 1-1/2 inch track legs for easier drywall installation
  • Screw-hole layout accommodates flange sizes from 1-5/8 inch to 3-1/2 inch for even load distribution
  • Made from 68-mil/14-gauge steel for 3-5/8 inch or 4 inch deep box headers and large-flange lay-in headers
  • Galvanized (G90) for extra corrosion resistance

Features

  • The bottom tabs transfer wind load from the horizontal window header to the jamb studs and help support the header assembly during installation
  • Tabulated loads are based on component assembly testing, which assists to mitigate design risk
  • To enable easier drywall installation, the gusset portion of the SHH is coped to avoid 1 1/2 inch (max.) track legs
  • The screw-hole layout at the jamb studs accommodates flange sizes of 1-5/8 in., 2 in., 2-1/2 in., 3 in. and 3-1/2 in. - this versatility allows the load to be evenly distributed along two lines of fasteners so that each jamb stud carries equal axial load with minimum eccentricity
  • Made from 68-mil/14-gauge steel intended for 3-5/8 in. or 4-in.-deep (max.) box headers and large-flange lay-in headers
  • Galvanized (G90) for extra corrosion resistance

Specifications


Material68-mil/14-gauge steelFinishGalvanized (G90)
Max Header Depth4 inchCompatible Flange Sizes1-5/8 inch, 2 inch, 2-1/2 inch, 3 inch, 3-1/2 inch
*
*
*
