Simpson SC 8" 10 ga. Bypass Framing Slide-Clip Connector w/ Screws - 25/box

Mfr.: Simpson Strong-Tie
Item #: I093634
Mfr. #: SC82-5/118-KT25
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $427.42
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

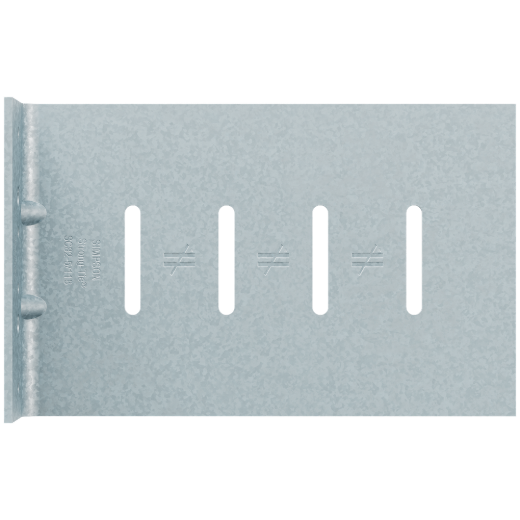

Ideal for high-seismic areas, Simpson Strong-Tie SC connectors are the optimal solution for slide-clip bypass framing. SC clips are often welded to the structure in high-seismic zones, but they also feature anchorage holes so that concrete screws or powder-actuated fasteners can be used to attach the clip to the structure. In addition to anchorage versatility, the SC clips include No-Equal stamps at the center of the slots to ensure proper shouldered screw placement. SC connectors are manufactured using heavy-duty steel to provide exceptional resistance to in-plane seismic load.
  • Provides a full 3/4 in. of both upward and downward deflection

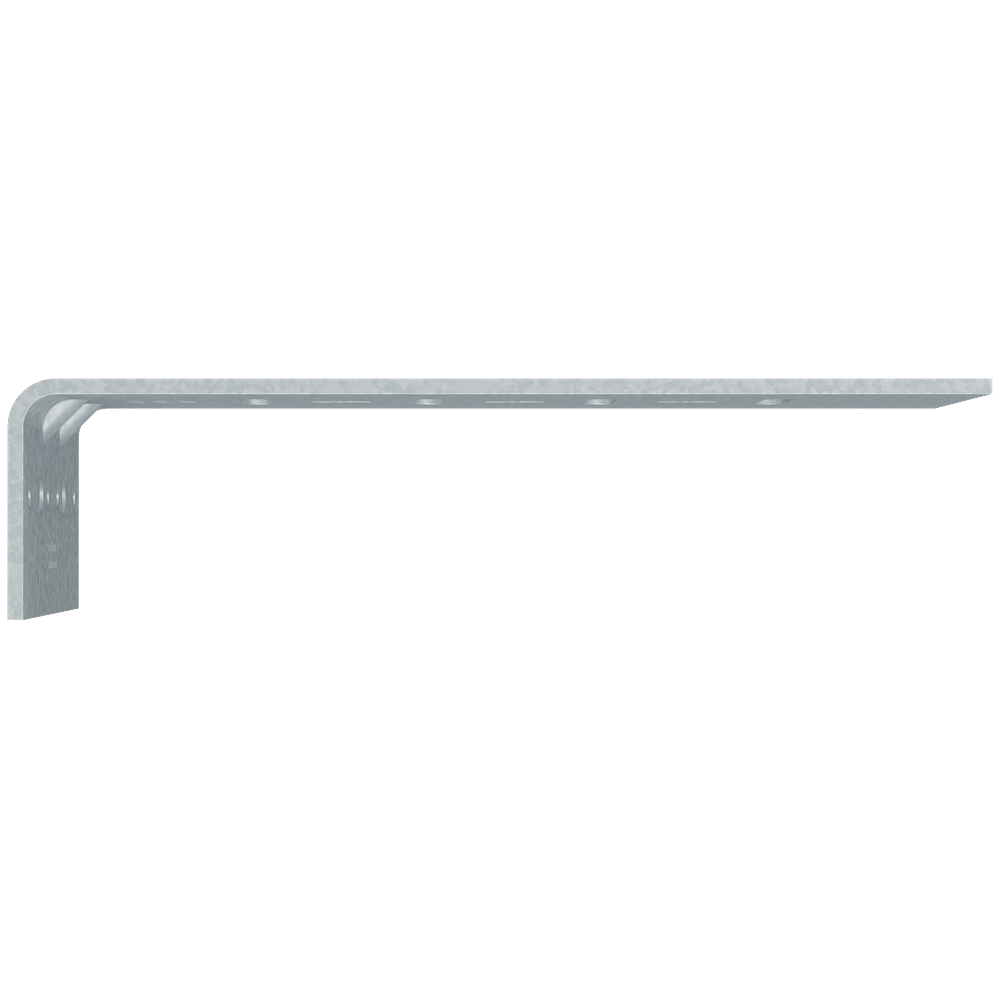

  • Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip

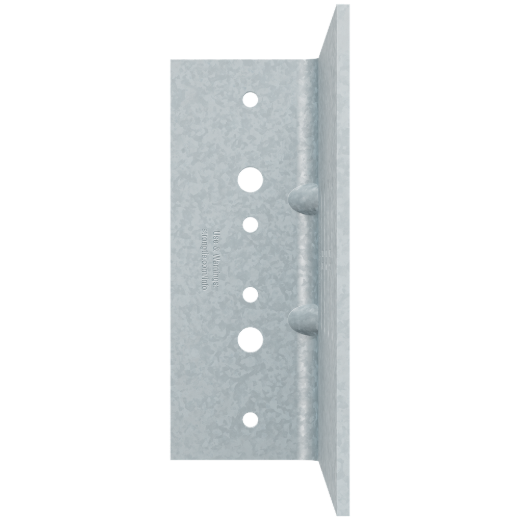

  • Prepunched large-diameter anchor holes accommodate 1/4 in. diameter concrete screws like the Simpson Strong-Tie Titen HD
  • Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157 in. diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive XL Large-Head Metal screw
  • Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly
  • 8 in. clip length, suitable for 8 in. stud; the maximum standoff distance is 1-1/2 in. for 8 in. studs

Features

  • Provides a full 3/4 in. of both upward and downward deflection
  • Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip
  • Prepunched large-diameter anchor holes accommodate 1/4 in. diameter concrete screws like the Simpson Strong-Tie Titen HD
  • Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157 in. diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive XL Large-Head Metal screw
  • Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly
  • 8 in. clip length, suitable for 8 in. stud; the maximum standoff distance is 1-1/2 in. for 8 in. studs

Includes

  • Precision-manufactured shouldered screws

Specifications


Clip Length8 inchStud Size8 inch
Maximum Standoff Distance1-1/2 inchDeflection Capacity3/4 inch upward and downward
MaterialHeavy-duty steel
*
*
*
