  • Simpson BPS 3" x 4-1/2" Slotted Bearing Plate with 5/8" Bolt Diameter

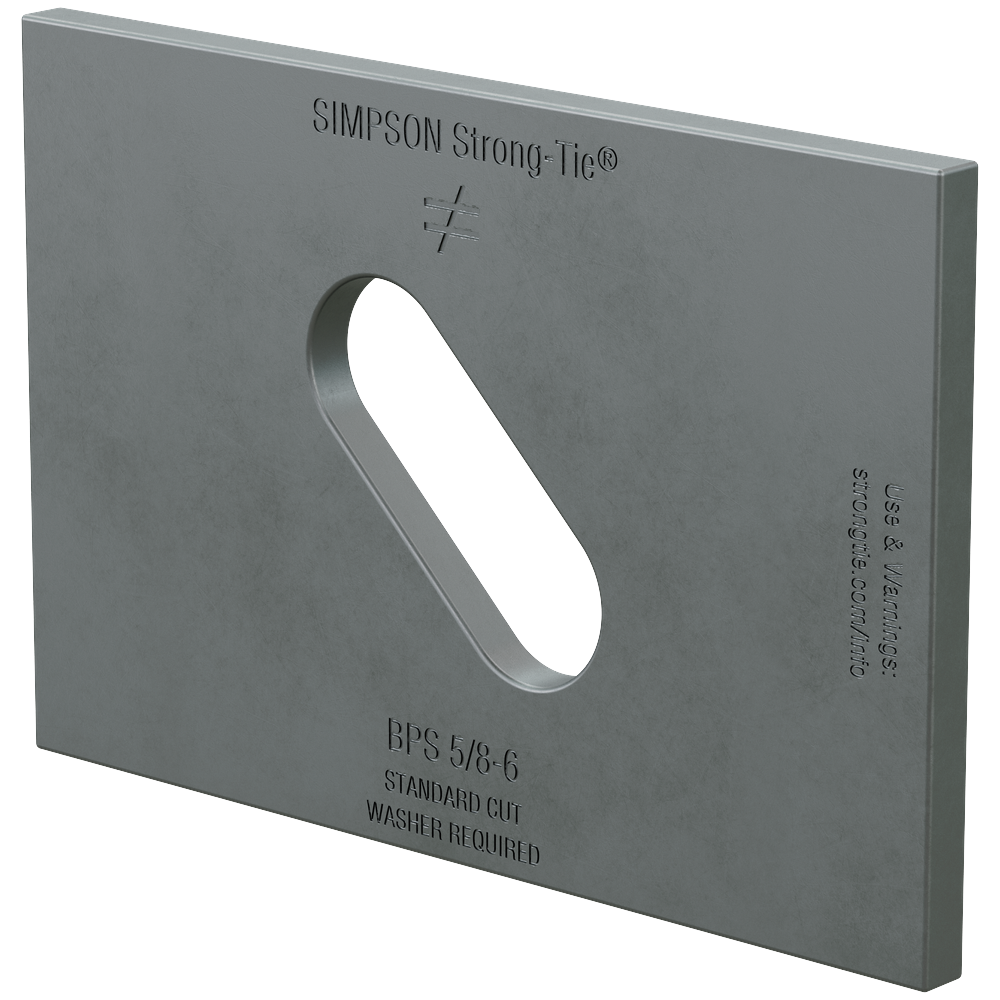

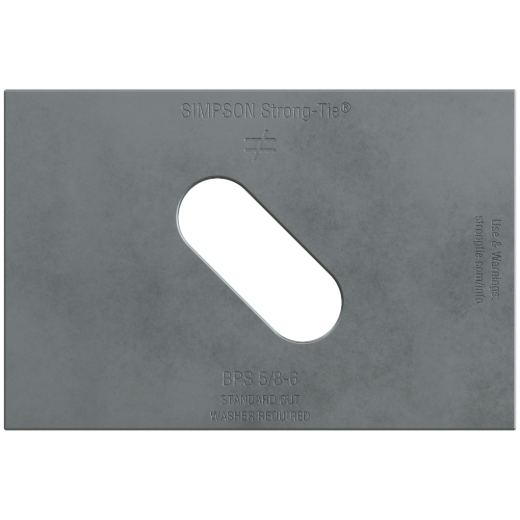

Simpson BPS 3" x 4-1/2" Slotted Bearing Plate with 5/8" Bolt Diameter

Mfr.: Simpson Strong-Tie
Item #: I092185
Mfr. #: BPS 5/8-6
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $12.08
i h h

Description

Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at these critical connections. Bearing plates are typically used on foundation anchor bolts in place of cut washers.
  • Offers increased flexibility while meeting the latest requirements of the code for 2x4 and 2x6 walls
  • The slotted hole allows for adjustability to account for bolts that are not in the middle of the sill plate

Features

  • Offers increased flexibility while meeting the latest requirements of the code for 2x4 and 2x6 walls
  • The slotted hole allows for adjustability to account for bolts that are not in the middle of the sill plate
  • Bolt diameter: 5/8 in.
  • Plate dimensions: 3 in. x 4-1/2 in.
  • Made from 3-gauge steel
  • Uncoated steel construction

Specifications


Bolt diameter5/8 inchPlate dimensions3 inch x 4-1/2 inch
Material3-gauge steelFinishUncoated steel
Products specifications
Width 3 inch, 3 inch
*
*
*
