  • Simpson S/LTTP2 Galvanized Tension Tie for Cold-Formed Steel

Simpson S/LTTP2 Galvanized Tension Tie for Cold-Formed Steel

Mfr.: Simpson Strong-Tie
Item #: I100462
Mfr. #: S/LTTP2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $34.67
i h h

Description

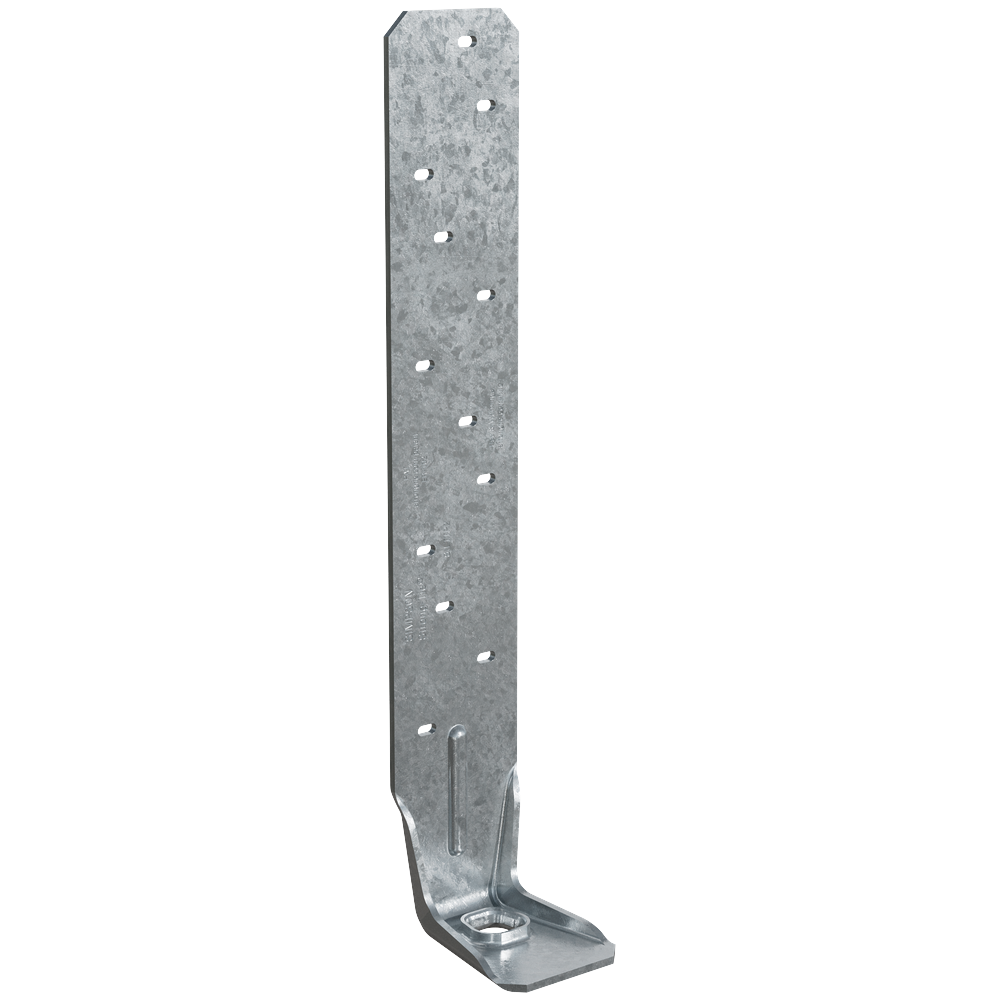

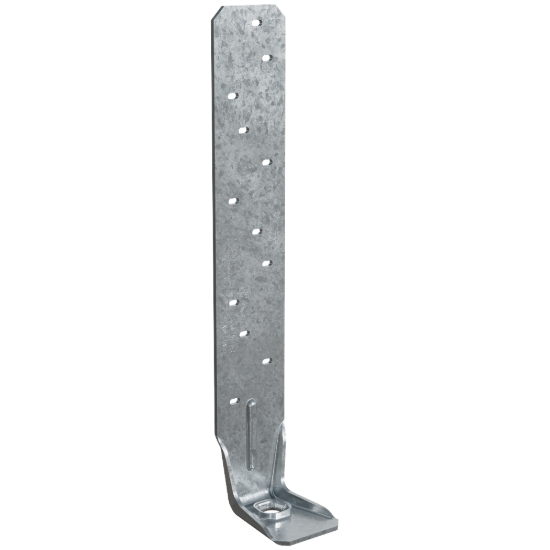

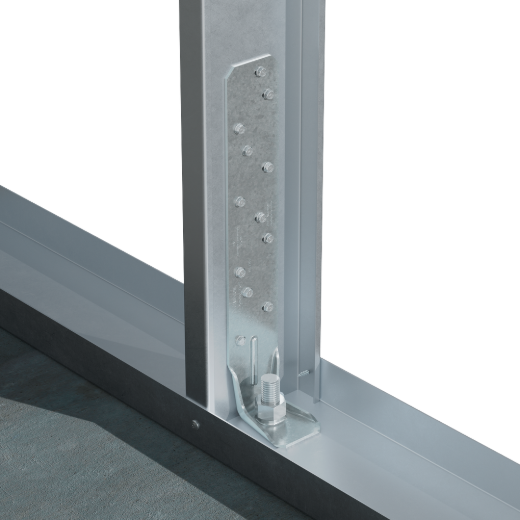

The Simpson Strong-Tie S/LTTP2 tension tie is ideal for retrofit or new construction. It is designed for easy installation for attachment with a 1/2-in. diameter post-installed or cast-in-place anchor to concrete and #10 screws to a CFS stud. The S/LTTP2 has flanges rolled into the bend and an extruded anchor bolt hole that provide increased strength and limit deflection.
  • Ideal for retrofit or new construction
  • Easy installation for attachment of 1/2-in. diameter post-installed or cast-in-place anchors to concrete and #10 screws to CFS studs
  • Flanges rolled into bend and extruded anchor bolt hole provide increased strength and limit deflection

Features

  • Ideal for retrofit or new construction
  • Easy installation for attachment of 1/2-in. diameter post-installed or cast-in-place anchors to concrete and #10 screws to CFS studs
  • Flanges rolled into bend and extruded anchor bolt hole provide increased strength and limit deflection
  • Length: 14-15/16 in.
  • Width: 2-9/16 in.
  • Made from 129-mil (10-gauge) steel

Specifications


Length14-15/16 inchWidth2-9/16 inch
Material129-mil (10-gauge) steel
*
*
*
