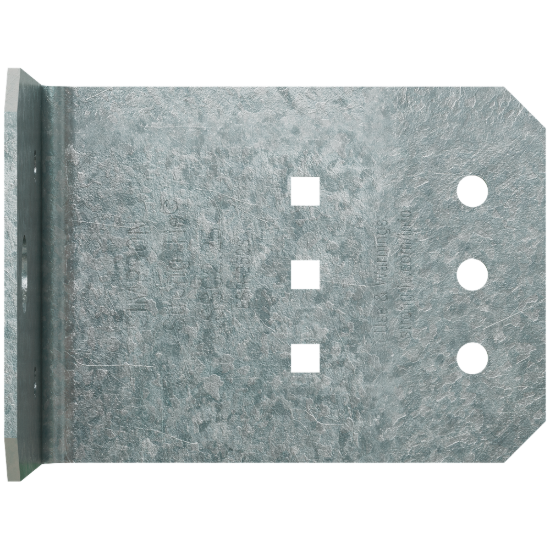

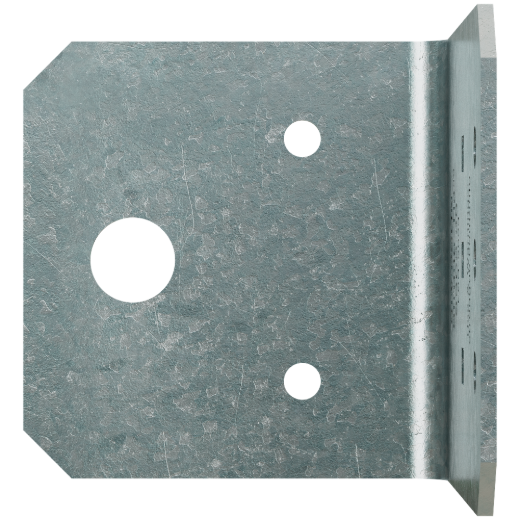

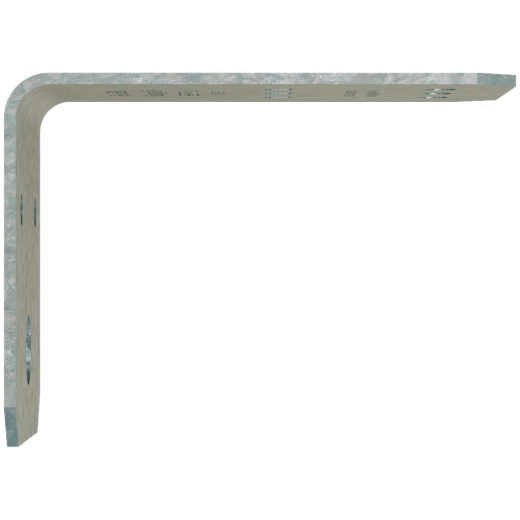

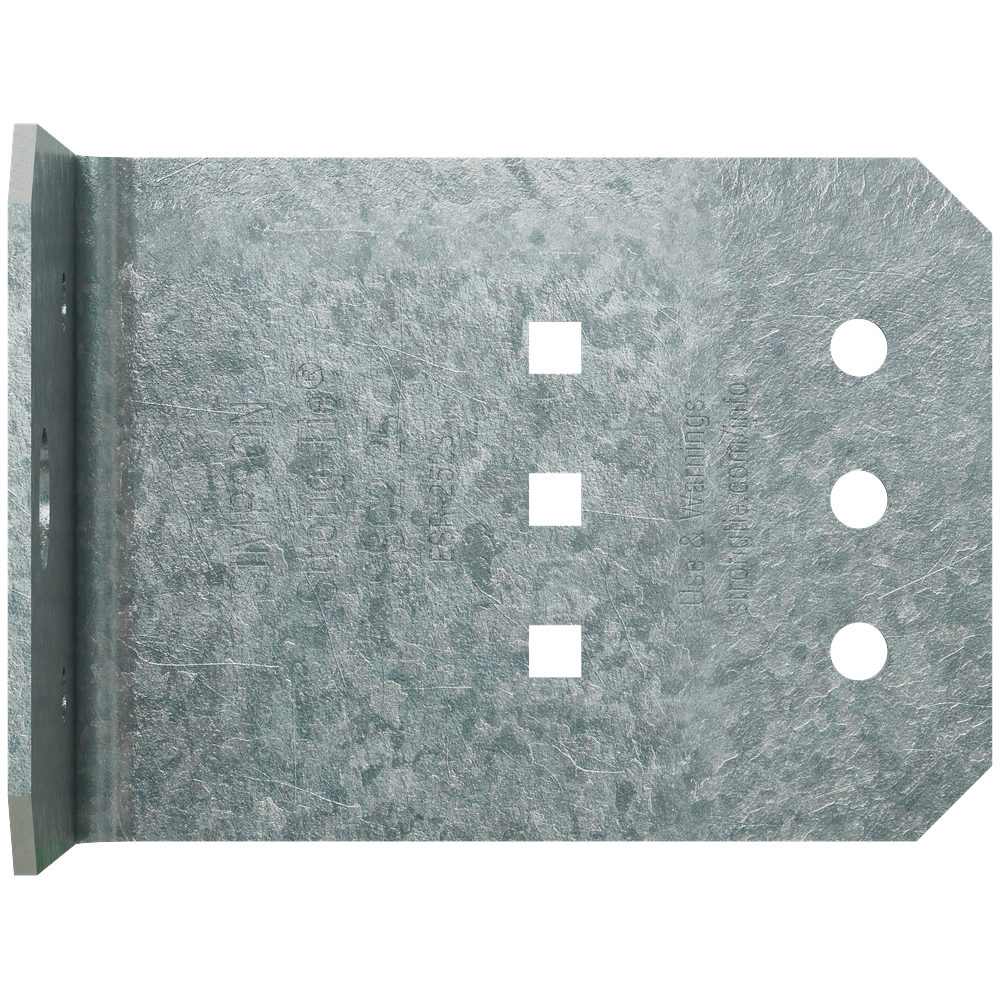

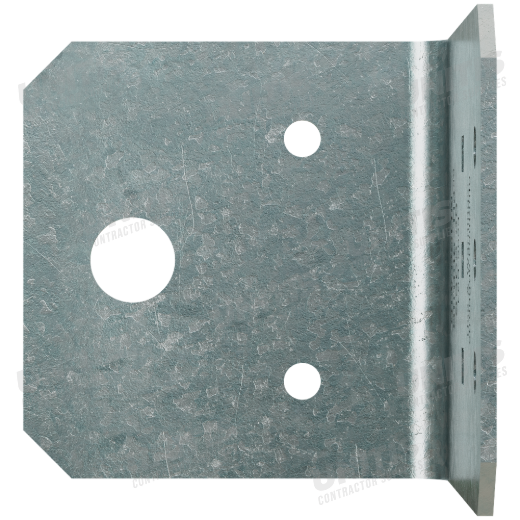

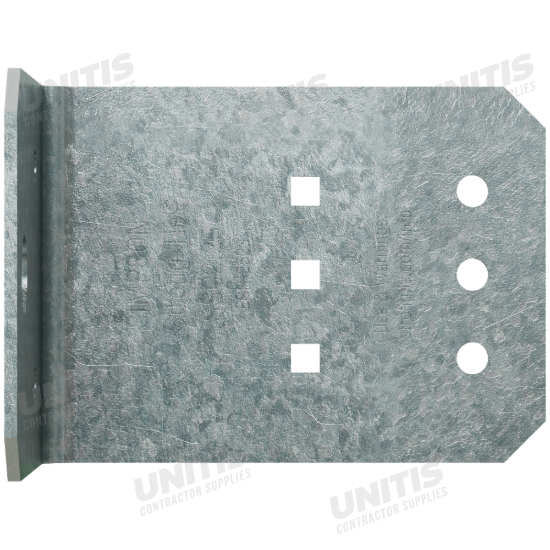

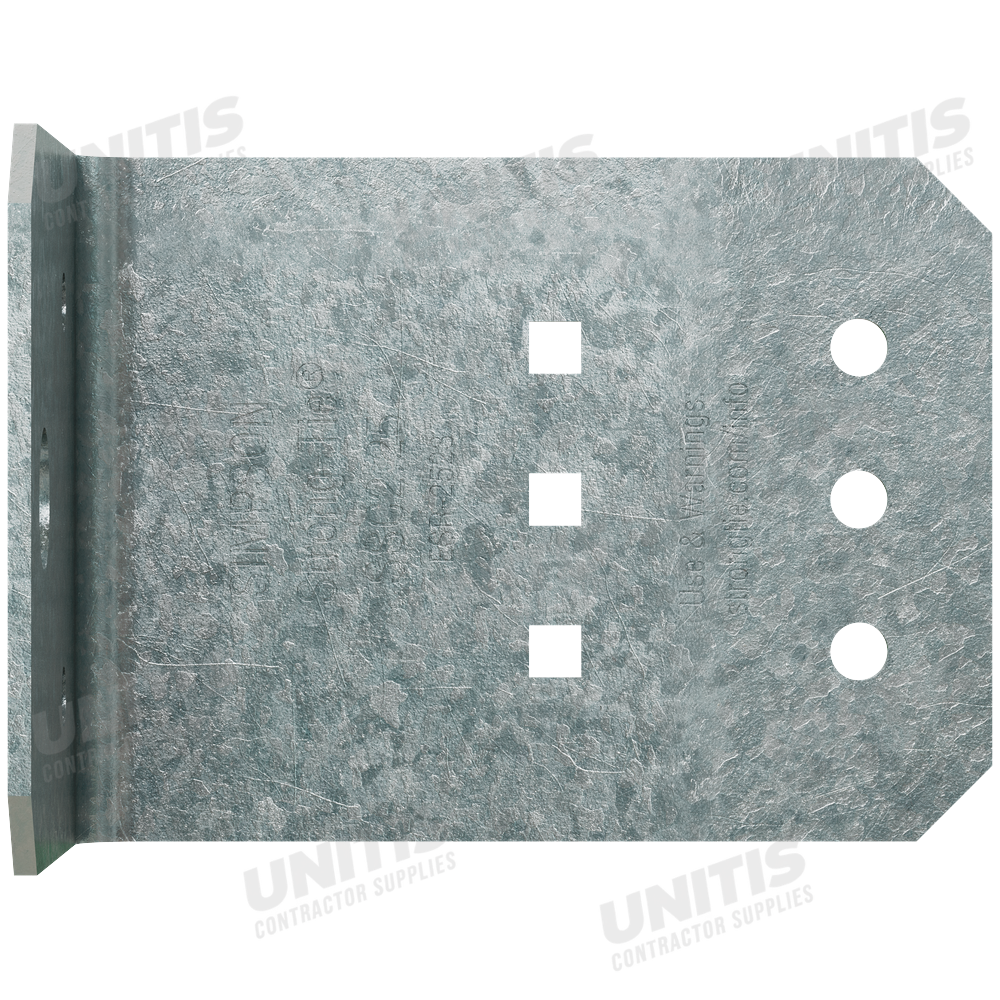

Simpson SSC 2-1/4" 14-Gauge Galvanized Steel-Stud Clip - 125/box

Mfr.: Simpson Strong-Tie
Item #: I051131
Mfr. #: SSC2.25-R125
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $277.11
i h h

Description

Simpson Strong-Tie SSC connectors are versatile utility clips ideal for a variety of stud-to-stud and stud-to-structure applications in cold-formed steel construction. The clips have been designed to enable easy installation on the open side of studs or joists with flanges up to 3 in. long and return lips up to 3/4 in. A wide pattern of strategic fastener locations allows the SSC to accommodate a variety of traditional and custom designs.
  • Prepunched holes reduce installation cost by eliminating predrilling
  • Intuitive fastener hole positions ensure accurate clip installation
  • Galvanized (G90) for extra corrosion resistance

Features

  • Prepunched holes reduce installation cost by eliminating predrilling
  • Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
  • SSC2.25 clips will accommodate 2 in.-wide flange and 5/8 in. stiffener lip
  • 4 in. leg length enables soft-side connections for studs and joists with flanges up to 3 in.
  • Also suitable for u-channel bridging
  • Galvanized (G90) for extra corrosion resistance

Specifications


Flange Accommodationup to 3 inchReturn Lip Accommodationup to 3/4 inch
SSC2.25 Flange Width2 inchSSC2.25 Stiffener Lip5/8 inch
Leg Length4 inchMaterialGalvanized (G90)
*
*
*
