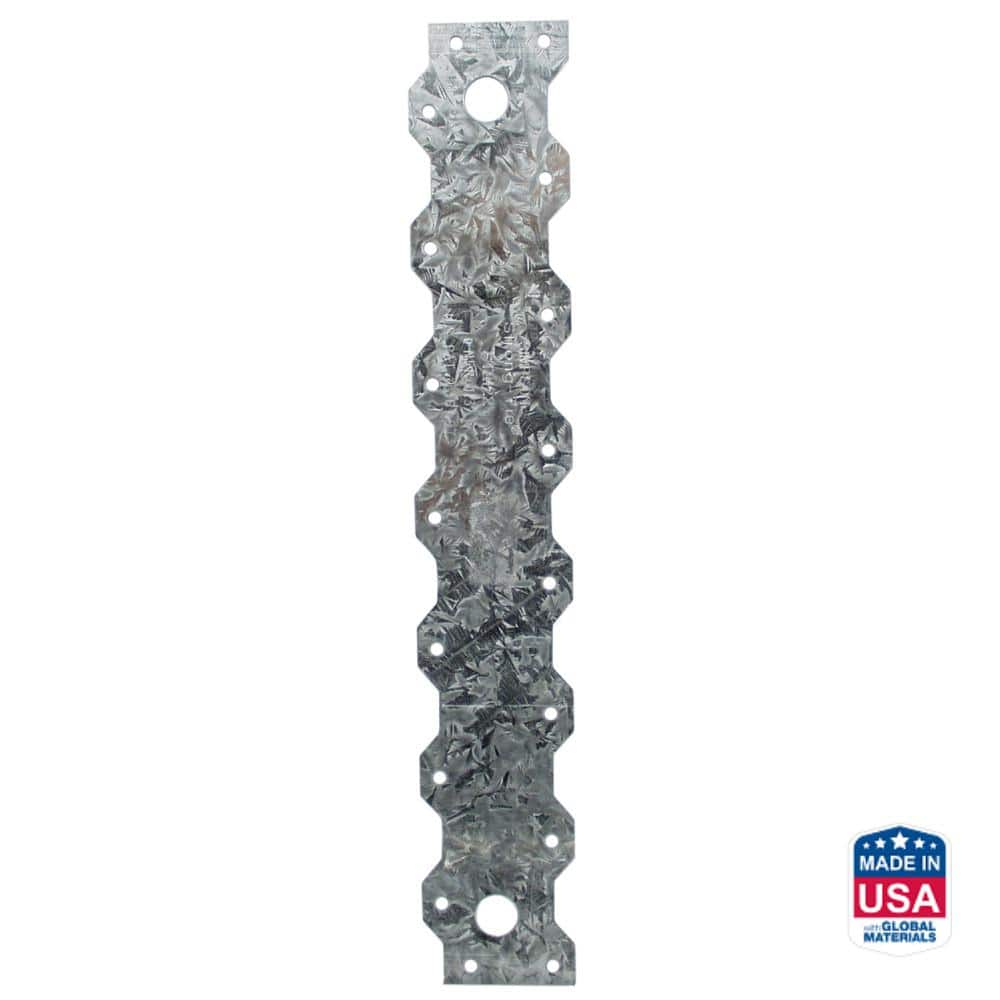

Simpson St Series 12-13/16-In 20-Gauge Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090868
Mfr. #: ST2122
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.37
i h h

Description

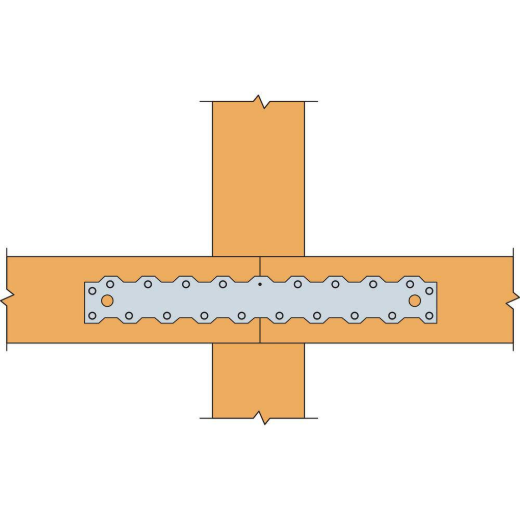

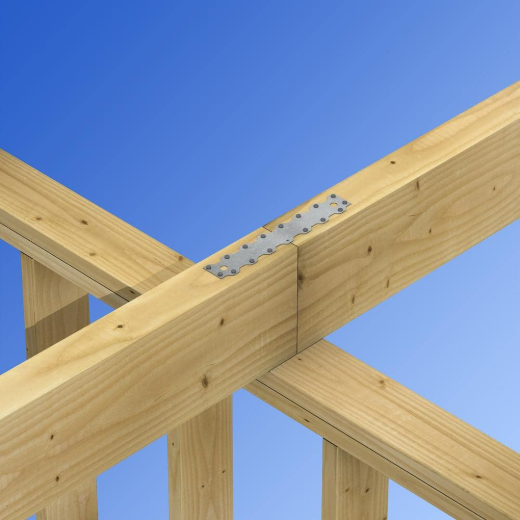

The Simpson Strong-Tie ST2122 is a load-rated, 20-gauge strap tie designed to effectively resist tension forces in wood-to-wood connections. This economical connector is ideal for use where top or bottom plates are cut, at wall intersections, or as ridge ties in framing. Its staggered nailing pattern is engineered to reduce the risk of wood splitting, ensuring a secure and durable structural connection.
  • Engineered for wind and seismic resistance
  • Staggered nail pattern prevents wood splitting

Features

  • G90 galvanized coating for corrosion protection
  • Precut design ensures quick job-site installation
  • Designed for use on the edge of 2x members
  • Load-rated for predictable structural performance

Includes

  • (1) 12-13/16 inch 20-Gauge Strap Tie
Products specifications
Model No. ST2122
Material 20-Gauge Steel
Finish G90 Galvanized

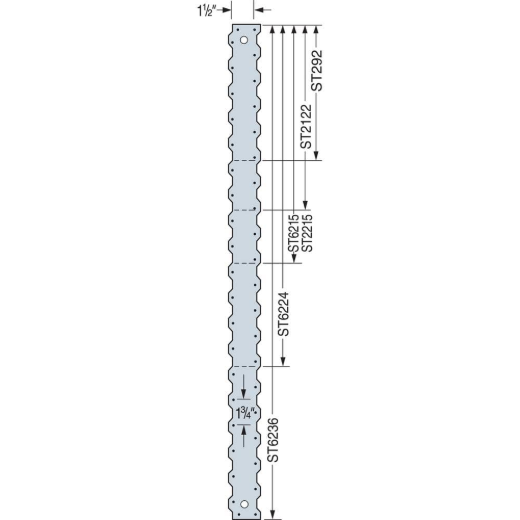

Length 12-13/16 inch
Width 2-1/16 inch
Fasteners (16) 16d Common Nails
Tension Load (DFSP) 1530 lbs.
Tension Load (SPFHF) 1510 lbs.
Product Type Strap Tie
*
*
*
