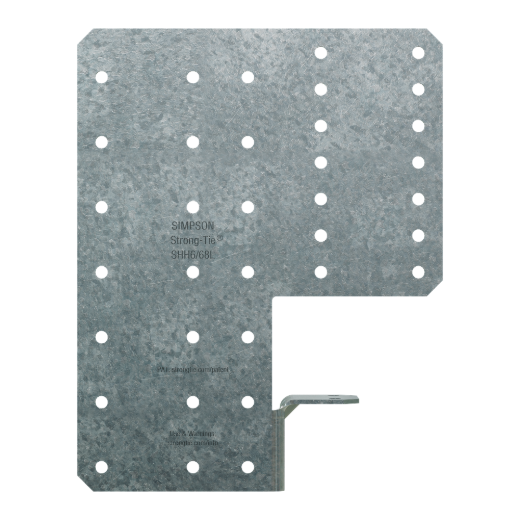

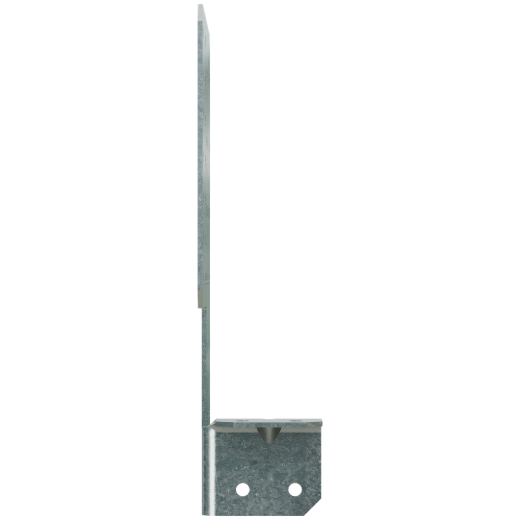

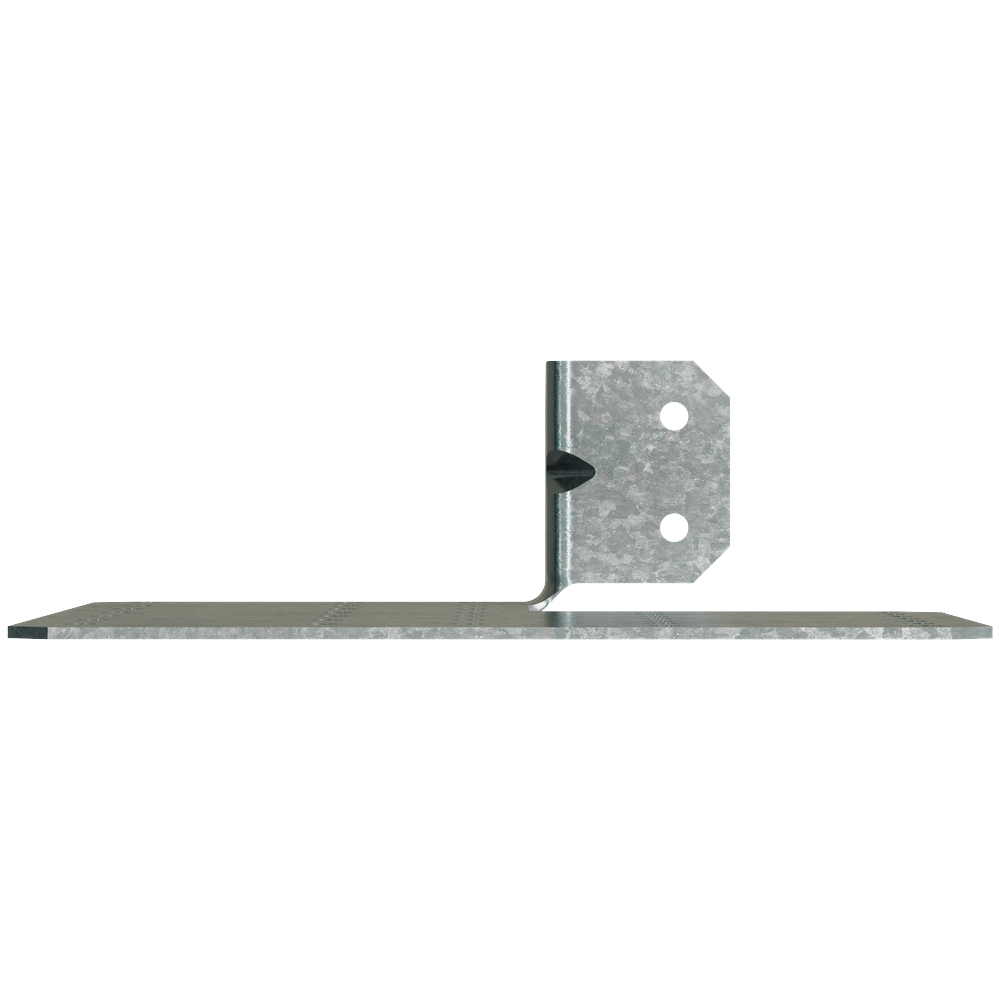

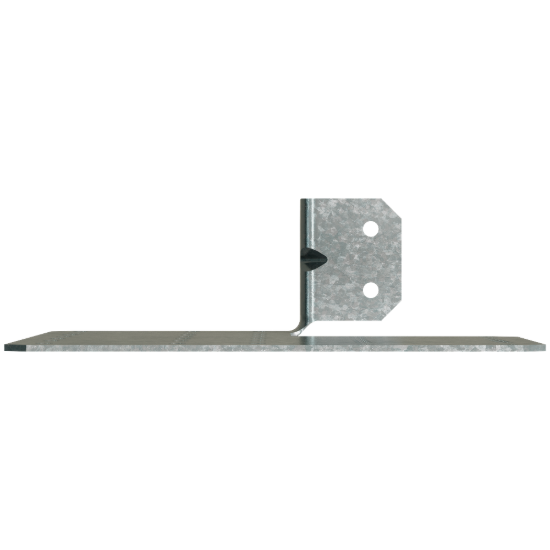

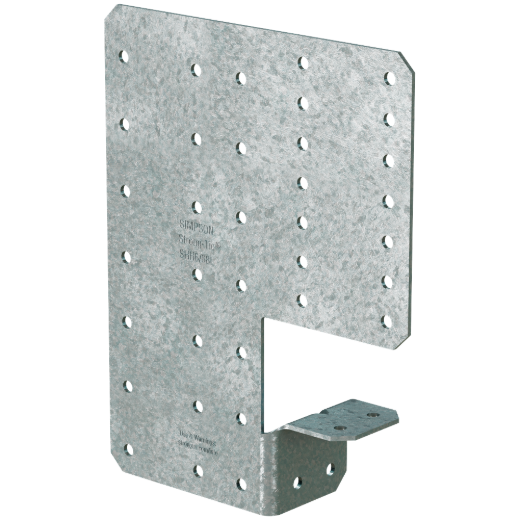

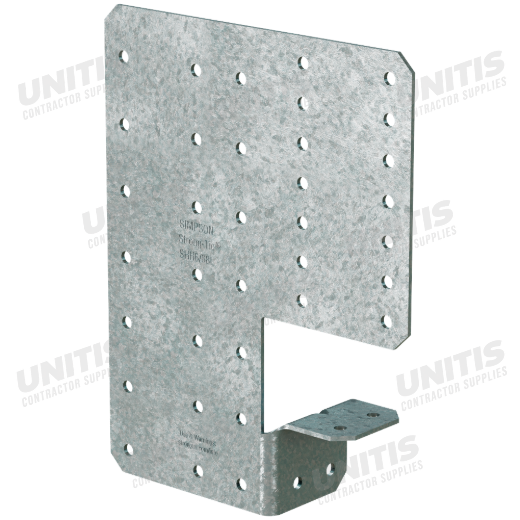

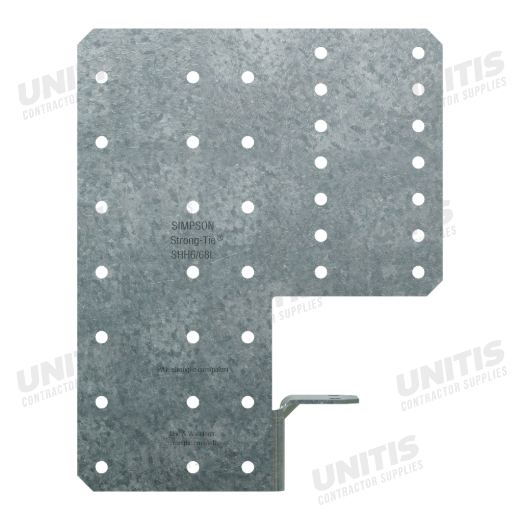

Simpson SHH 7-3/16" x 5-5/8" 68-mil Galvanized Steel Header Hanger - 24/box

Mfr.: Simpson Strong-Tie
Item #: I091927
Mfr. #: SHH6/68-KT24
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $211.55
i h h

Description

The Simpson Strong-Tie SHH steel header hanger is used to support traditional CFS box headers that are fabricated with top and bottom tracks, as well as large-flange lay-in headers that are common in curtain-wall construction. The connector geometry minimizes drywall buildup, and the screw count has been minimized through extensive testing. A wide array of value-engineered hole patterns are available that will accommodate different load levels while minimizing installed cost.
  • Bottom tabs transfer wind load from horizontal window header to jamb studs and help support header assembly during installation
  • Tabulated loads based on component assembly testing to mitigate design risk
  • Gusset portion coped to avoid 1-1/2 inch (max.) track legs for easier drywall installation
  • Screw-hole layout accommodates flange sizes of 1-5/8 in., 2 in., 2-1/2 in., 3 in., and 3-1/2 in.
  • Made from 68-mil/14-gauge steel for use with 6-in.-deep (min.) box headers
  • Galvanized (G90) for extra corrosion resistance

Features

  • The bottom tabs transfer wind load from the horizontal window header to the jamb studs and help support the header assembly during installation
  • Tabulated loads are based on component assembly testing, which assists to mitigate design risk
  • To enable easier drywall installation, the gusset portion of the SHH is coped to avoid 1 1/2 inch (max.) track legs
  • The screw-hole layout at the jamb studs accommodates flange sizes of 1-5/8 in., 2 in., 2-1/2 in., 3 in. and 3-1/2 in. - this versatility allows the load to be evenly distributed along two lines of fasteners so that each jamb stud carries equal axial load with minimum eccentricity
  • Made from 68-mil/14-gauge steel intended for use with 6-in.-deep (min.) box headers
  • Galvanized (G90) for extra corrosion resistance

Specifications


Material68-mil/14-gauge steelFinishGalvanized (G90)
Minimum Header Depth6 inchFlange Sizes Accommodated1-5/8 inch, 2 inch, 2-1/2 inch, 3 inch, 3-1/2 inch
Products specifications
Packaging 24 per box (12 LH, 12 RH)
*
*
*
