Simpson Strapmate Reusable Strap Holder

Mfr.: Simpson Strong-Tie
Item #: I090865
Mfr. #: SM1
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $7.19
i h h

Description

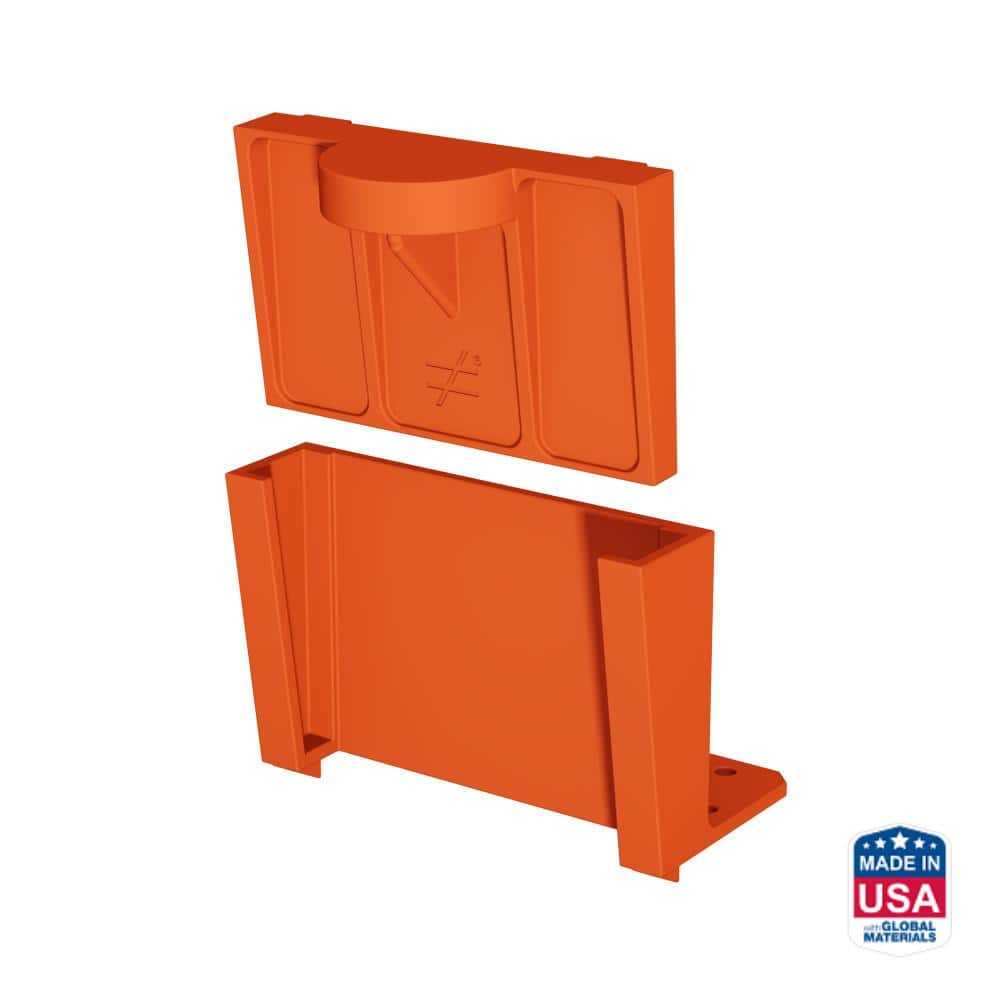

The Simpson StrapMate SM1 is a reusable strap holder specifically designed to maintain the vertical alignment of STHD and LSTHD straps during concrete pours. By securing the straps in place, it effectively minimizes the risk of concrete spalling and ensures a clean, professional finish. The friction-fit design allows for a fast and easy installation, providing a stable foundation for embedded connectors. This durable tool is engineered to withstand the rigors of the jobsite and can be used across multiple projects.
  • Reusable Design

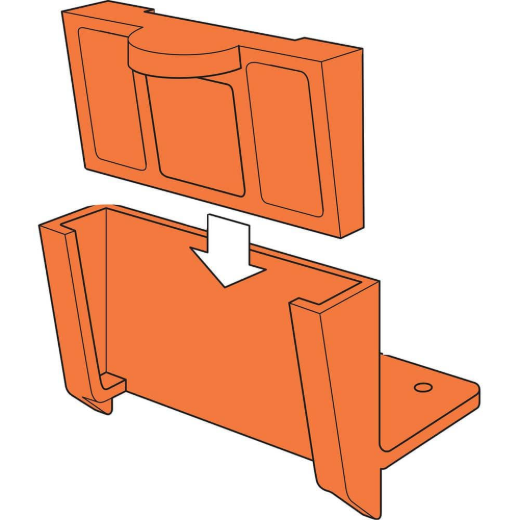

  • Friction Fit

Features

  • Designed to fit 3/4 inch plywood forms up to 1-3/4 inch LVL forms and larger.

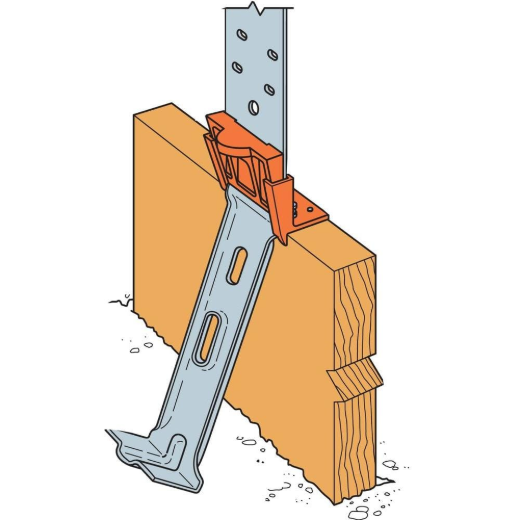

  • Positions the strap off the front edge of the form board for optimal alignment.
  • Compatible with Simpson Strong-Tie STHD and LSTHD embedded straps.
  • Made from high-strength engineered composite plastic.
Products specifications
Model Number SM1
Material Engineered Composite Plastic
Fasteners Required (2) 0.131 inch x 2-1/2 inch Duplex Nails
Form Thickness 3/4 inch to 1-3/4 inch LVL
Strap Compatibility STHD, LSTHD
*
*
*
