  • Simpson Strong-Bolt 2 - 1/2" x 4-1/4" Type 304 Stainless-Steel Wedge Anchor - 25/box

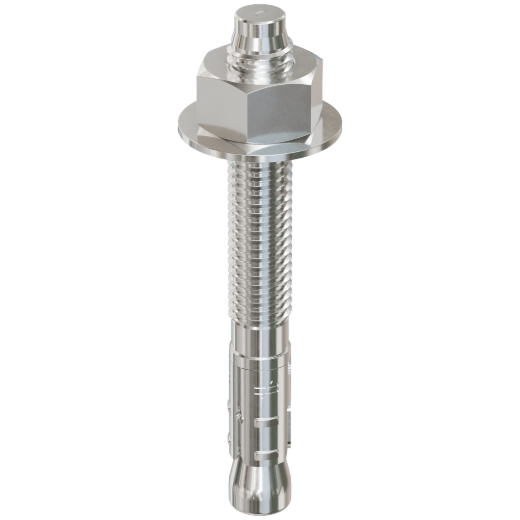

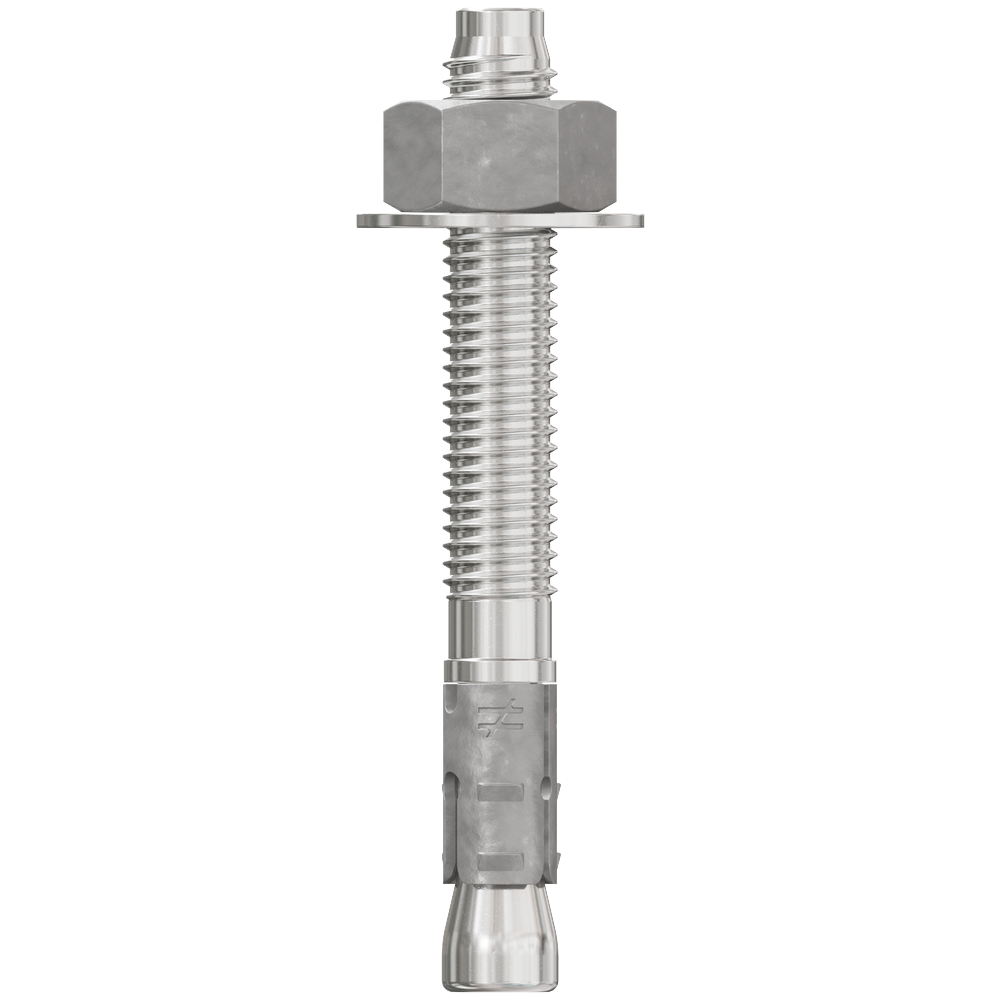

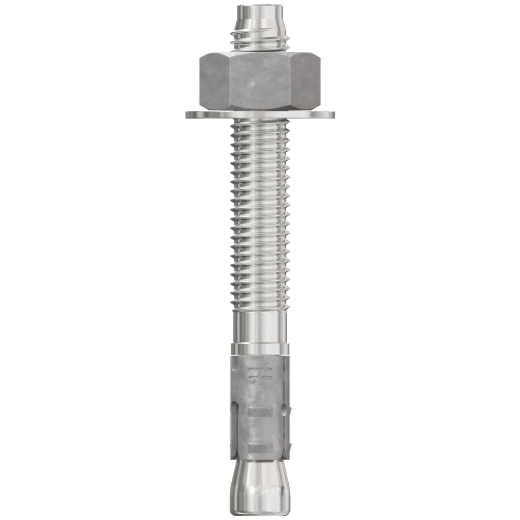

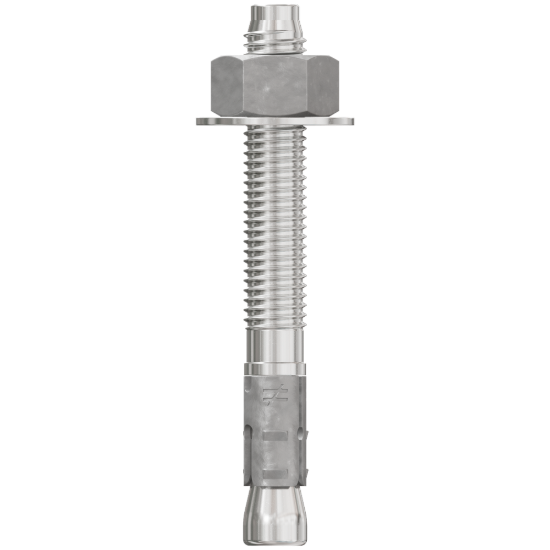

Simpson Strong-Bolt 2 - 1/2" x 4-1/4" Type 304 Stainless-Steel Wedge Anchor - 25/box

Mfr.: Simpson Strong-Tie
Item #: I093860
Mfr. #: STB2-50414S4F25
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $168.13
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Bolt 2 wedge anchor is a high-strength, stainless-steel mechanical anchor designed for cracked and uncracked concrete. It features a 1/2-inch diameter and 4-1/4-inch length, with Type 304 stainless steel for corrosion resistance. Ideal for outdoor or corrosive environments, it comes in a box of 25.
  • Type 304 stainless steel for corrosion resistance
  • For cracked and uncracked concrete
  • 1/2 inch diameter, 4-1/4 inch length
  • 25 anchors per box

Features

  • ICC-ES approved for cracked and uncracked concrete
  • Expansion wedge design for high load capacity
  • Stainless steel clip ensures consistent expansion
  • Suitable for seismic and wind loading applications
  • Easy installation with standard tools

Includes

  • 25 wedge anchors

Specifications


Diameter1/2 inLength4-1/4 in
MaterialType 304 Stainless SteelFinishPlain (uncoated)
Box Quantity25Anchor TypeWedge Anchor
For Use InCracked & Uncracked ConcreteMin Embedment2-1/4 in
Max Fixture Thickness1-3/4 inThread Length1-1/2 in
Head TypeHex NutStandardsICC-ES ESR-3187
Corrosion ResistanceHigh (304 SS)
*
*
*
