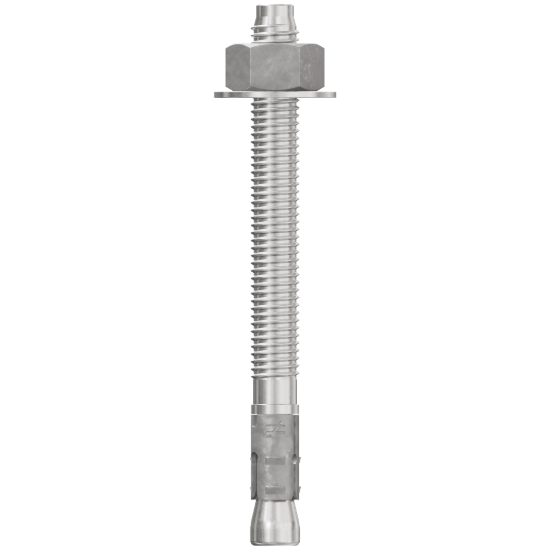

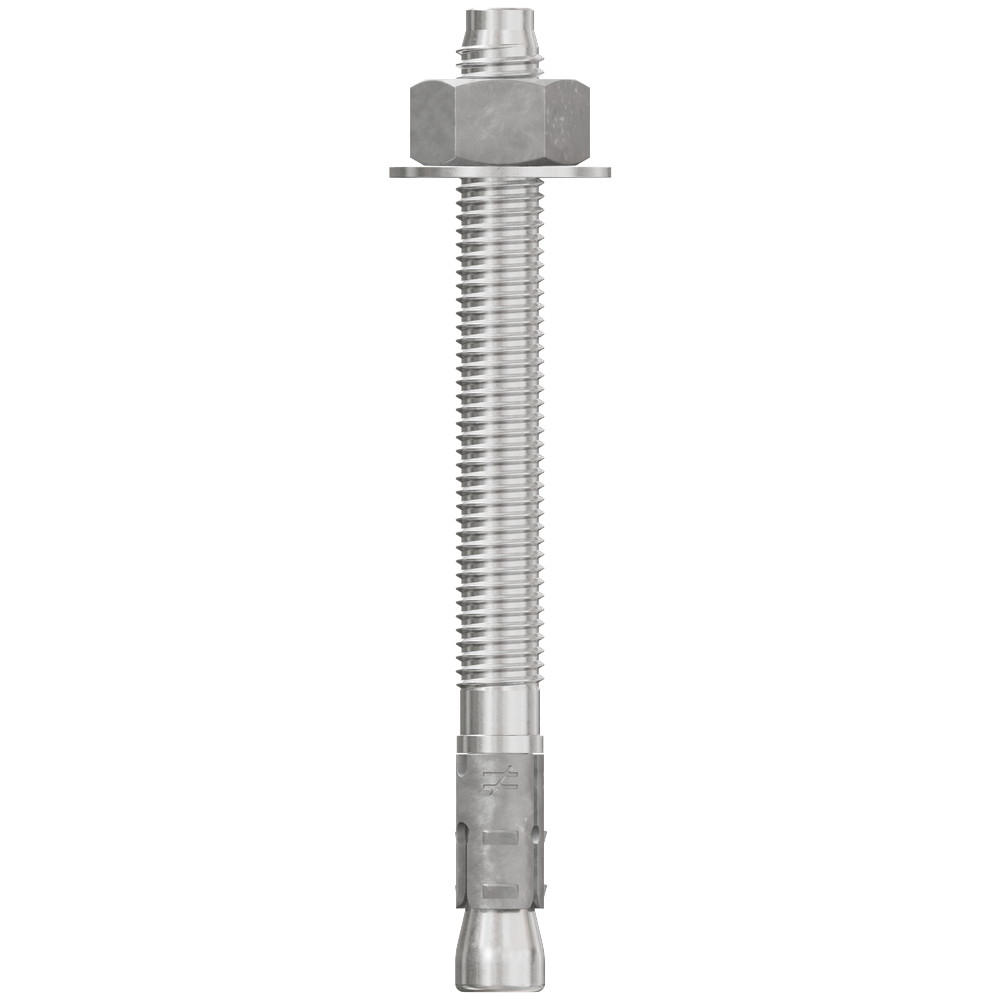

Simpson Strong-Bolt 2 - 1/2" x 5-1/2" Type 316 Stainless-Steel Wedge Anchor - 25/box

Mfr.: Simpson Strong-Tie
Item #: I093871
Mfr. #: STB2-50512S6F25
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $375.88
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Strong-Bolt 2 wedge anchor is a high-performance expansion anchor for cracked and uncracked concrete, with dual undercutting embossments for secondary expansion. This Type 316 stainless-steel version offers long-lasting corrosion resistance.
  • Type 316 stainless steel for corrosion resistance
  • Qualified for static and seismic loading (SDC A-F)
  • Suitable for horizontal, vertical, and overhead applications
  • Chamfered top prevents mushrooming during installation

Features

  • Qualified for cracked and uncracked concrete
  • Dual undercutting embossments for secondary expansion
  • Minimum concrete thickness 3-1/4 inch
  • Lightweight concrete-over-steel deck qualified

Specifications


ModelSTB2-50512S6F25Diameter1/2 inch
Length5-1/2 inchMaterialType 316 Stainless Steel
Box Quantity25
*
*
*
