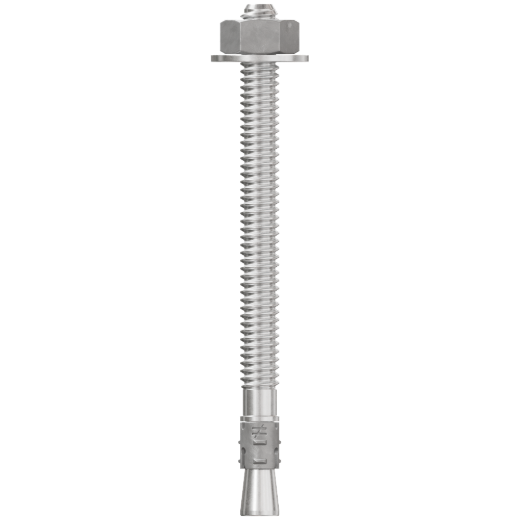

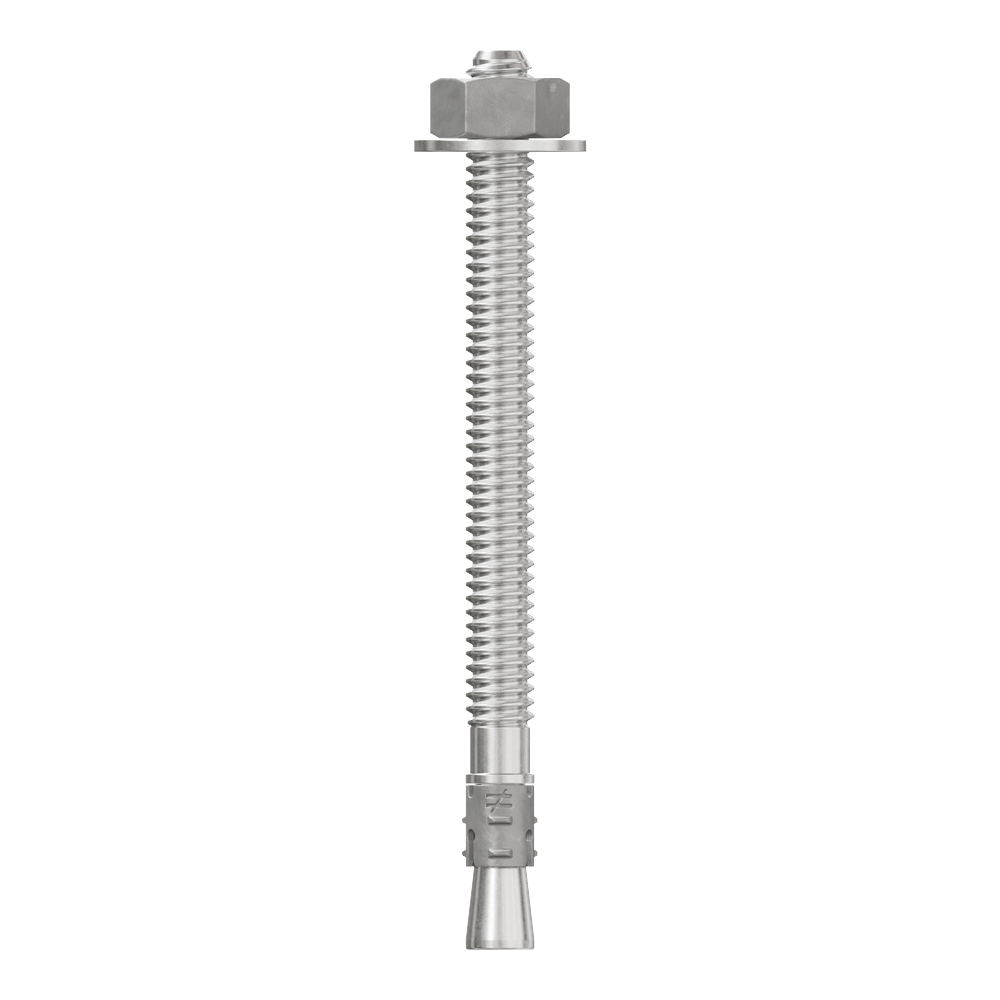

Simpson Strong-Bolt 2 - 1/4" x 3-1/4" Type 316 Stainless-Steel Wedge Anchor - 100/box

Mfr.: Simpson Strong-Tie
Item #: I093794
Mfr. #: STB2-25314S6F100
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $338.97
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Fully assembled wedge anchor made of Type 316 stainless steel for corrosion resistance. Designed for cracked and uncracked concrete, with a 1/4 inch diameter and 3-1/4 inch length.
  • Type 316 stainless steel construction
  • 1/4 inch diameter, 3-1/4 inch length
  • 100 anchors per box
  • For use in cracked and uncracked concrete

Features

  • Fully assembled with nut and washer
  • Drill bit size: 1/4 inch
  • Minimum fixture hole: 5/16 inch
  • Wrench size: 7/16 inch
  • Installation torque: 4 ft-lbf

Includes

  • 100 wedge anchors

Specifications


Model No.STB2-25314S6F100DescriptionFully Assembled
CoatingMaterialType 316 Stainless SteelSize (in.)1/4 x 3 1/4
Drill Bit Dia. (in.)1/4Thread Length (in.)2 7/16
Component Material Anchor BodyType 316 Stainless SteelComponent Material NutType 316 Stainless Steel
Component Material WasherType 316 Stainless SteelComponent Material ClipType 316 Stainless Steel
Packaging Qty.100
*
*
*
