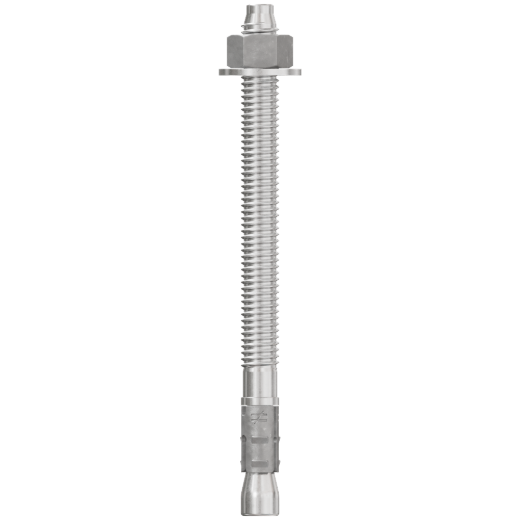

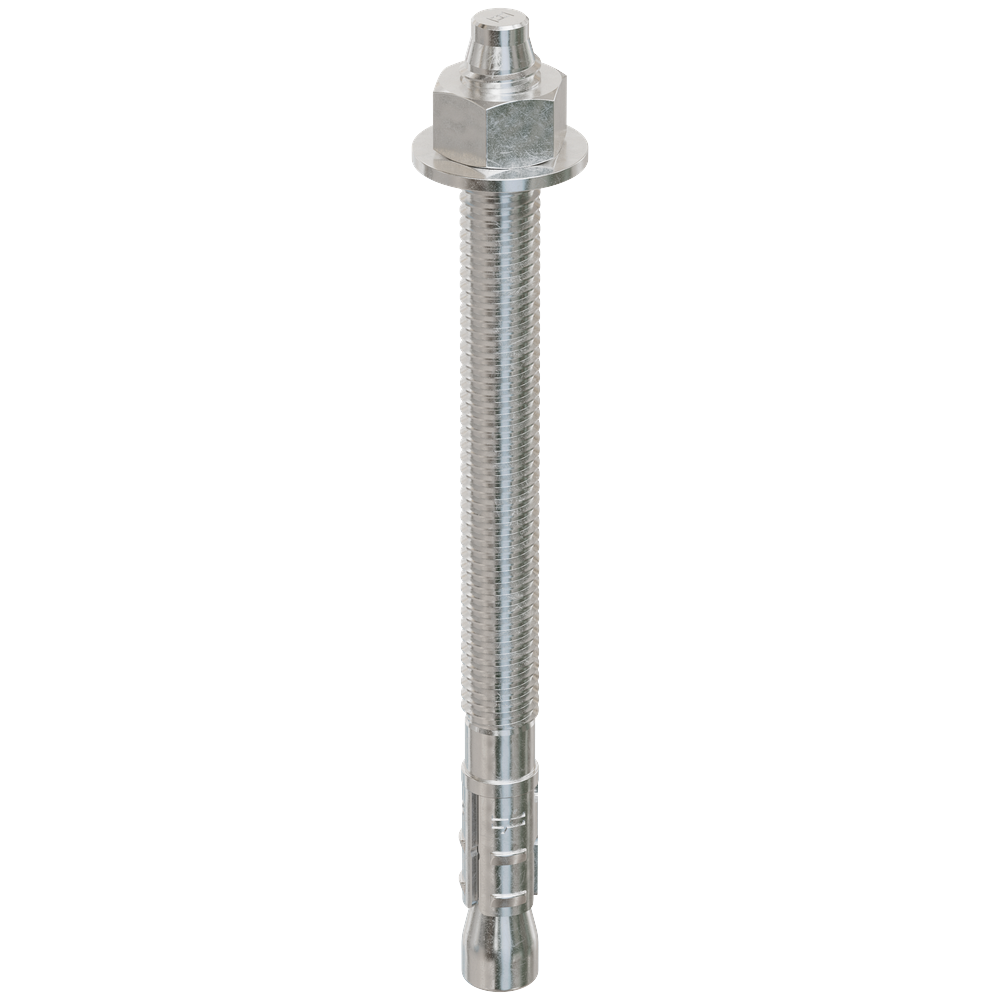

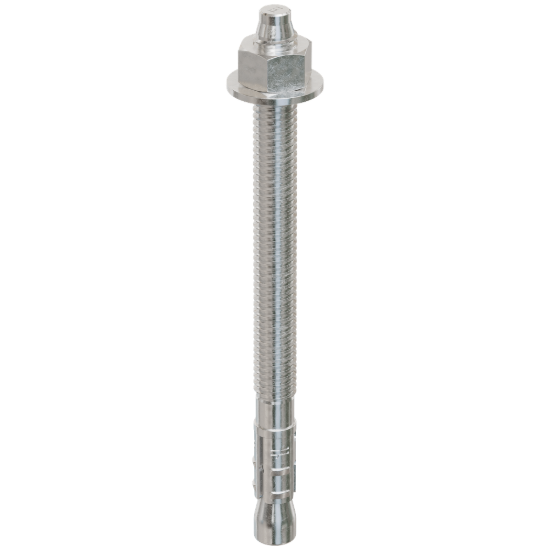

Simpson Strong-Bolt 2 - 3/8" x 5" Type 316 Stainless-Steel Wedge Anchor - 50/box

Item #: I093826
Mfr. #: STB2-37500S6F50
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $393.65
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Bolt 2 wedge anchor is a high-performance mechanical anchor designed for heavy-duty fastening in cracked and uncracked concrete. Made from Type 316 stainless steel, it offers superior corrosion resistance for outdoor and harsh environments. This 3/8 inch diameter by 5 inch length anchor comes in a box of 50.
  • Type 316 stainless steel for maximum corrosion resistance
  • Approved for cracked and uncracked concrete
  • 3/8 inch diameter, 5 inch length
  • 50 anchors per box

Features

  • ICBO/ICC-ES approved for seismic and wind loading
  • Expansion wedge design for secure holding
  • Suitable for wet and corrosive environments
  • Easy installation with standard tools

Includes

  • 50 wedge anchors

Specifications


Diameter3/8 inchLength5 inch
MaterialType 316 Stainless SteelFinishSmooth
Box Quantity50Anchor TypeWedge Anchor
StandardsICC-ES ESR-3190Min Embedment2-1/4 inch
Max Fixture Thickness2-3/4 inchThread Length1-1/4 inch
Head TypeHex NutDrive Size9/16 inch
Tensile StrengthVaries by concreteShear StrengthVaries by concrete
*
*
*
