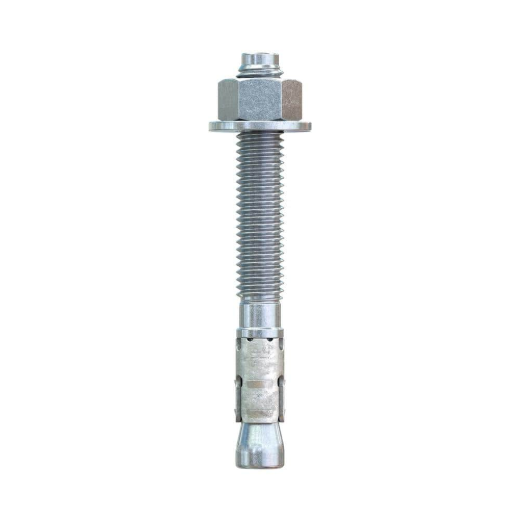

Simpson Strong-Bolt 2 Wedge Anchor 1/2 inch x 4-1/4

Mfr.: Simpson Strong-Tie
Item #: I093859
Mfr. #: STB2-50414P1
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.30
i h h

Description

The Simpson Strong-Tie STB2-50414P1 is a Strong-Bolt 2 Wedge Anchor, engineered for reliable anchoring in various concrete applications. It is suitable for both cracked and uncracked concrete, making it a versatile choice for construction projects. This anchor is designed to withstand static and seismic loading conditions, providing a secure fastening solution. Its robust construction ensures dependable performance and longevity.

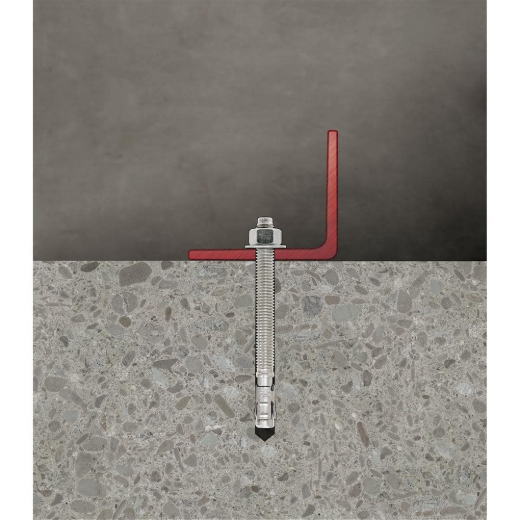

  • Wedge-type expansion anchor

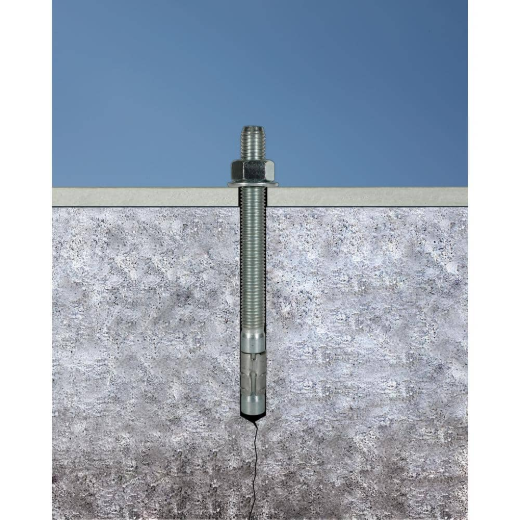

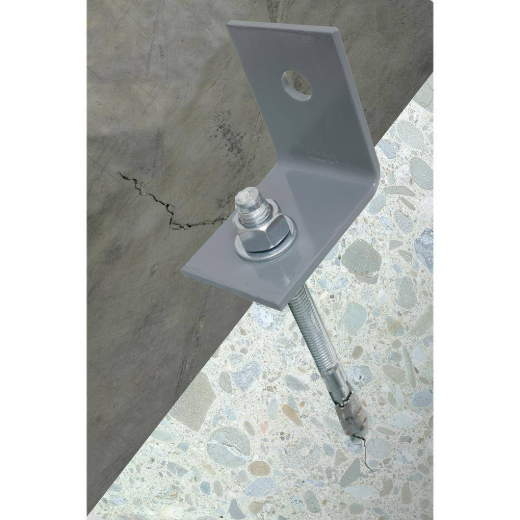

  • Suitable for cracked and uncracked concrete
  • Designed for static and seismic loading conditions

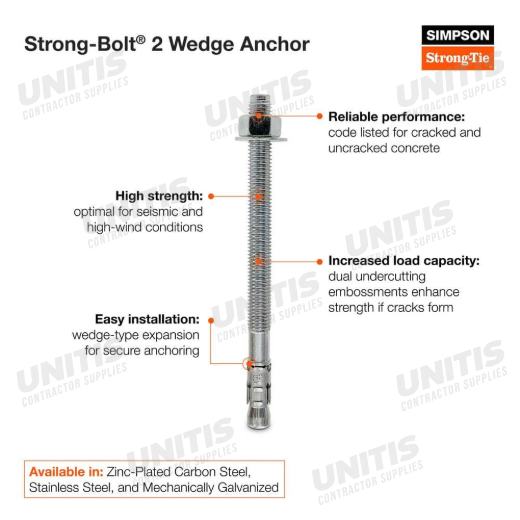

Features

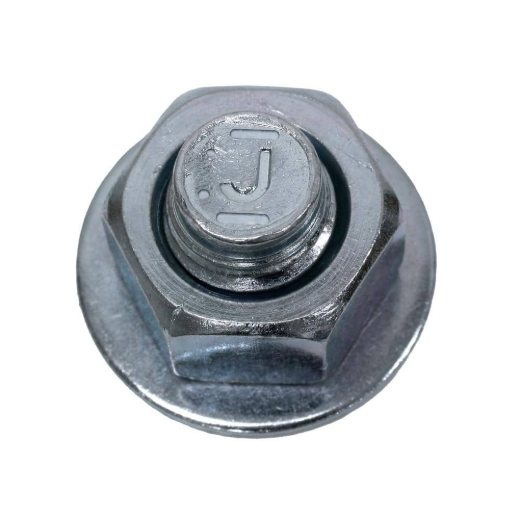

  • Chamfered top prevents mushrooming during installation.
  • Qualified for seismic design categories A through F.

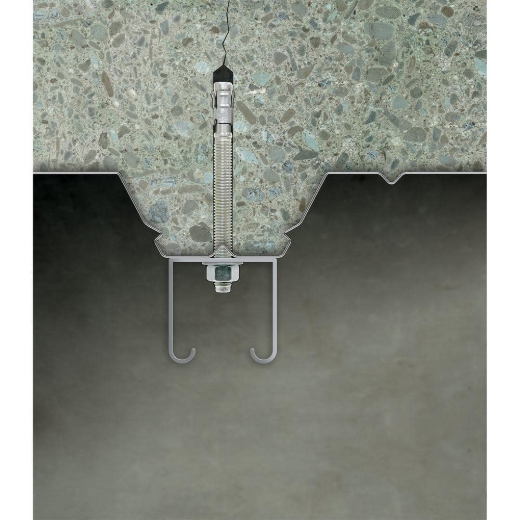

  • Suitable for horizontal, vertical, and overhead applications.

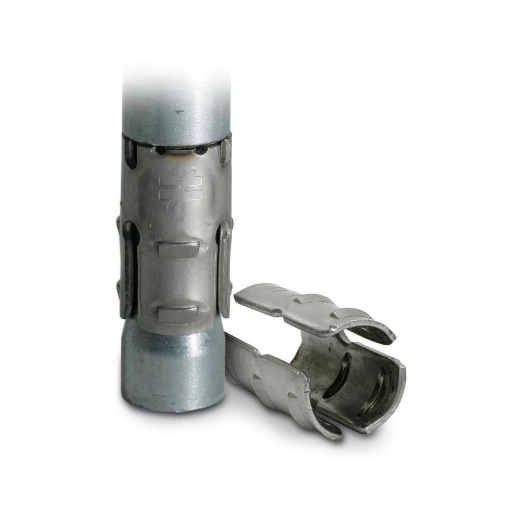

  • Features dual undercutting embossments for secondary expansion in case of cracking.
  • Tested per ACI355.2 and AC193.

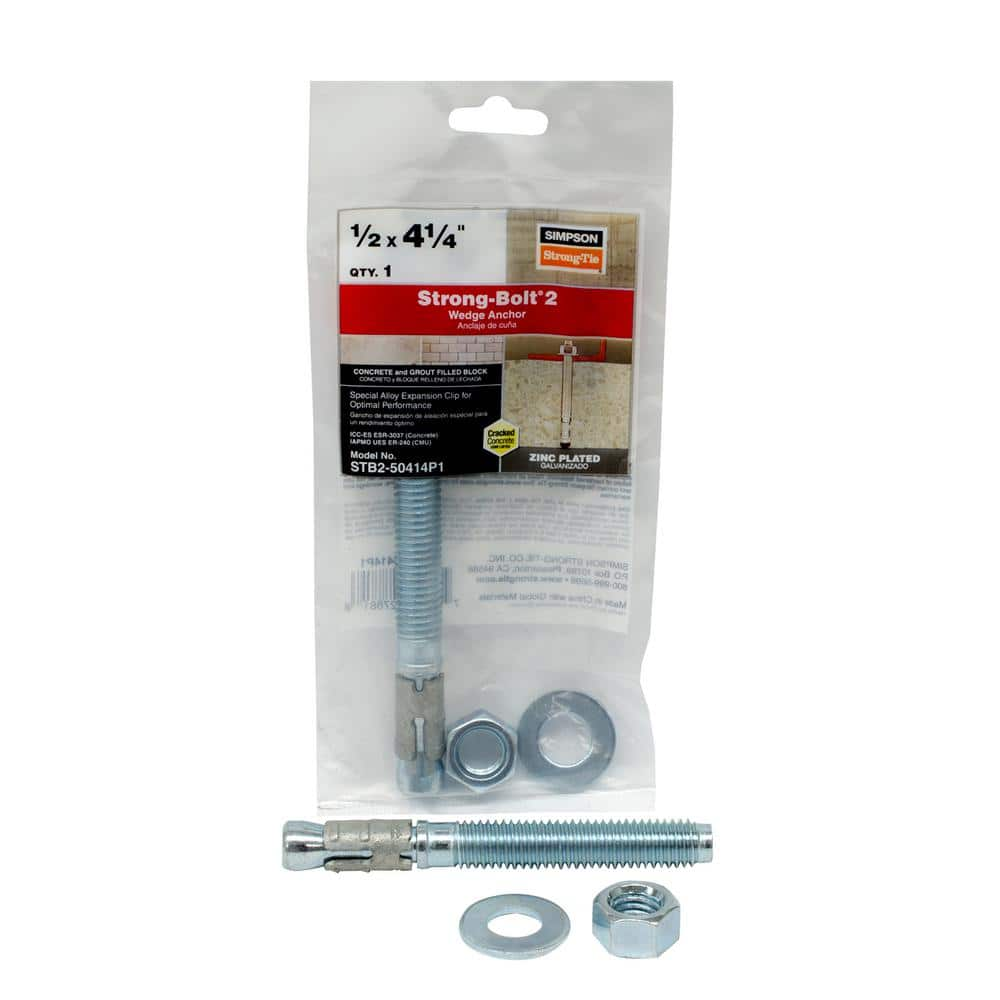

Includes

  • 1 x Strong-Bolt 2 Wedge Anchor
Products specifications
Diameter 1/2 inch
Overall Length 4-1/4 inch
Material Carbon Steel
Finish Zinc
Drill Size 1/2 inch
Thread Length 2-9/16 inch
Head Type Chamfered
Tensile Strength 115000 psi
Shear Strength 7235 lb
Min. Embedment Depth 2-3/4 inch to 3-7/8 inch

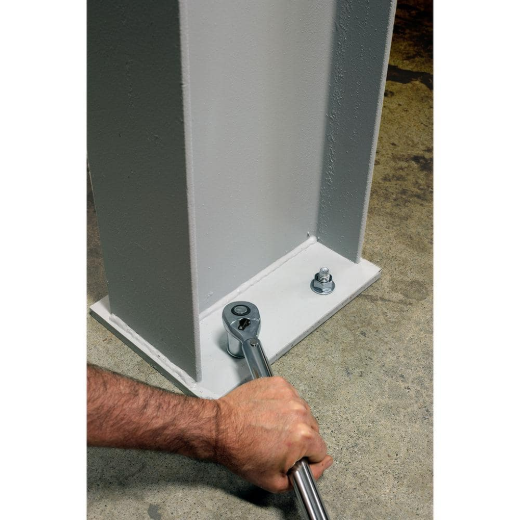

Installation Torque 60 ft. lbs
*
*
*
