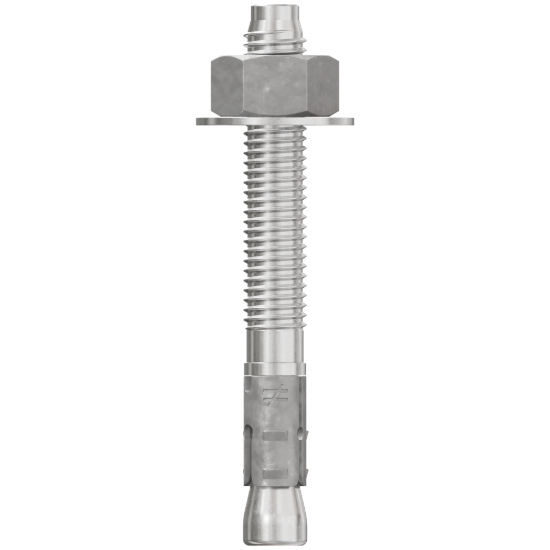

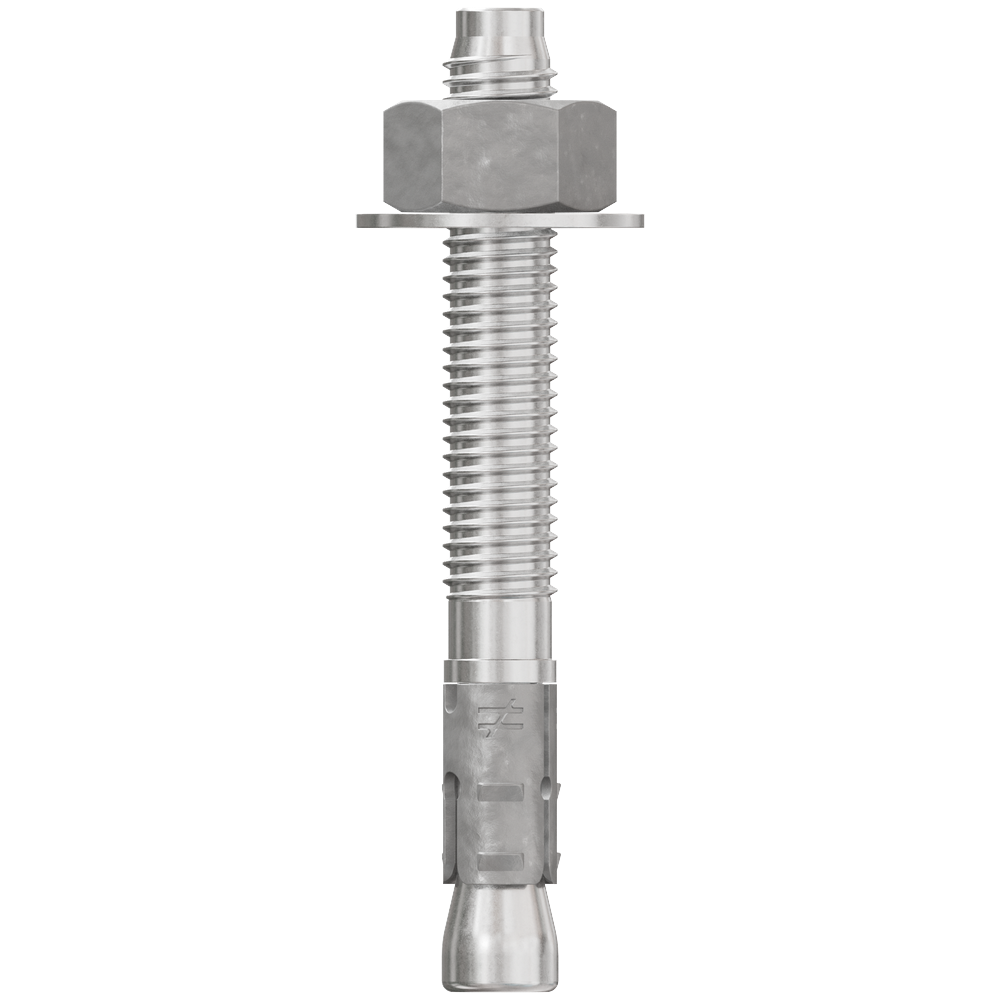

Simpson Strong-Bolt 2 - 1/2" x 4-1/4" Type 316 Stainless-Steel Wedge Anchor - 25/box

Mfr.: Simpson Strong-Tie
Item #: I093861
Mfr. #: STB2-50414S6F25
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $300.03
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Bolt 2 wedge anchor is a high-strength, corrosion-resistant mechanical anchor designed for use in cracked and uncracked concrete. Made from Type 316 stainless steel, it provides superior performance in harsh environments such as coastal or chemical exposure areas. The 1/2 inch diameter by 4-1/4 inch length anchor is packaged in a box of 25.
  • Type 316 stainless steel for maximum corrosion resistance
  • Approved for cracked and uncracked concrete
  • ICBO/ICC-ES code compliant
  • Easy installation with standard tools

Features

  • 316 stainless steel construction for durability in corrosive environments
  • Wedge anchor design provides high holding values
  • Suitable for seismic and wind loading applications
  • Color-coded end for easy identification of diameter
  • Includes nut and washer for secure fastening

Includes

  • 25 wedge anchors with nuts and washers

Specifications


Diameter1/2 inchLength4-1/4 inch
MaterialType 316 Stainless SteelFinishPlain (uncoated)
Box Quantity25Anchor TypeWedge Anchor
StandardsICC-ES ESR-3193Min Embedment2-1/4 inch
Max Fixture Thickness1-3/4 inchThread Length1-1/2 inch
Hex Nut Size3/4 inchWasher OD1 inch
Drill Bit Size1/2 inchTensile Strength4,000 psi concrete
Shear Strength4,000 psi concrete
*
*
*
