Simpson Strong-Bolt 2 Wedge Anchor 1/2 inch x 5-1/2

Mfr.: Simpson Strong-Tie
Item #: I093865
Mfr. #: STB2-50512C10
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $17.15
i h h

Description

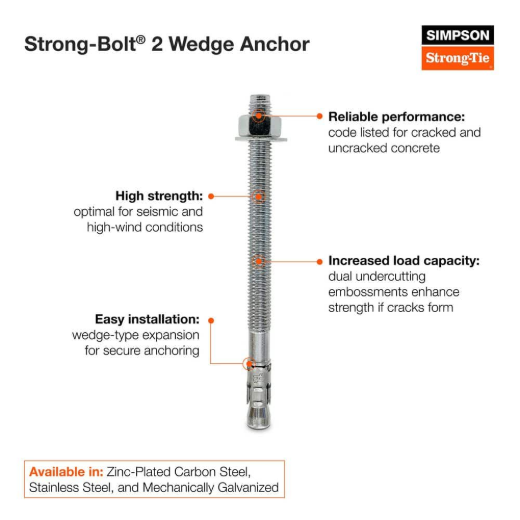

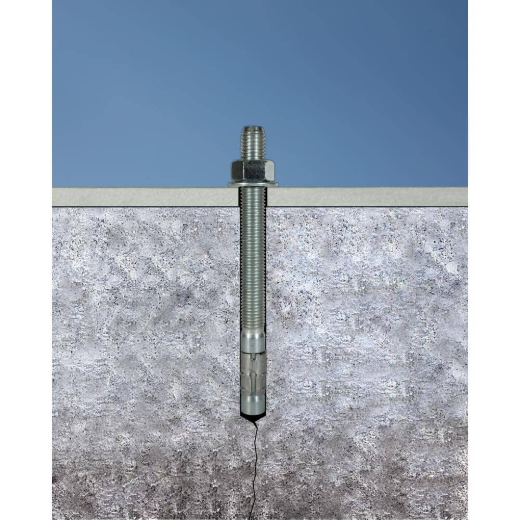

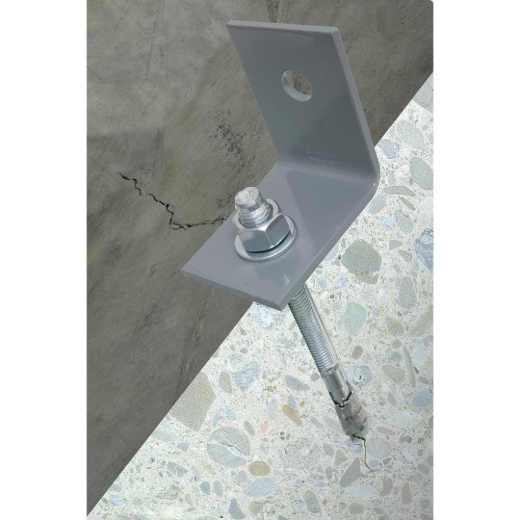

The Simpson Strong-Tie Strong-Bolt 2 is a high-performance wedge-type expansion anchor engineered for demanding conditions in both cracked and uncracked concrete and masonry applications. Its innovative design, featuring dual undercutting embossments, ensures optimal load-carrying capacity, especially in seismic or high-wind zones, by allowing for secondary expansion if a crack forms. This anchor provides reliable and secure performance, making it a trusted choice for critical structural applications. It is code-listed for versatility and designed for ease of installation.
  • Code listed for cracked and uncracked concrete

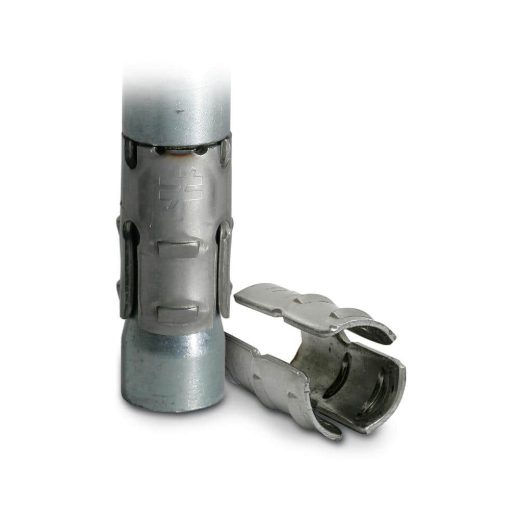

  • Dual undercutting embossments for enhanced load capacity

Features

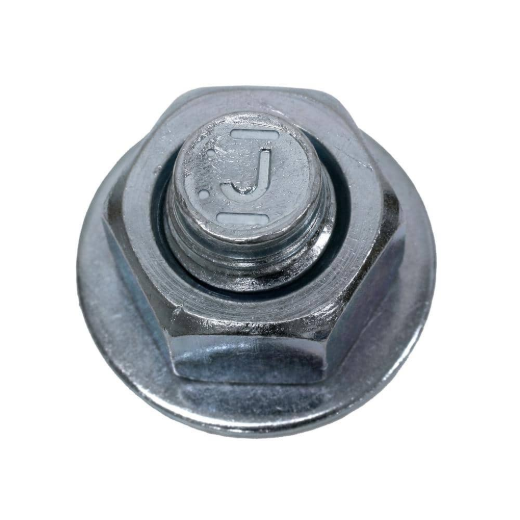

  • Chamfered top designed to prevent mushrooming during installation.

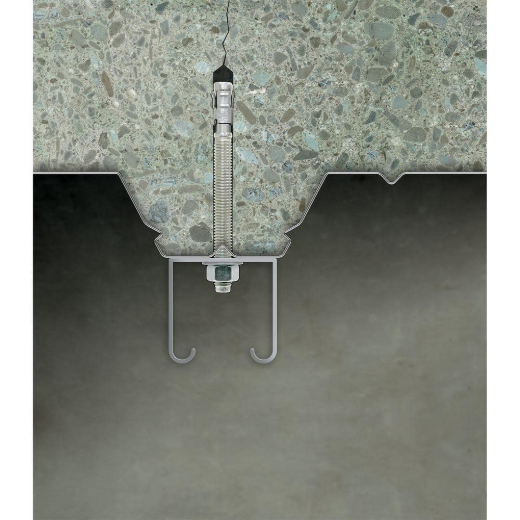

  • Qualified for static and seismic loading conditions (seismic design categories A through F).
  • Suitable for horizontal, vertical, and overhead applications.

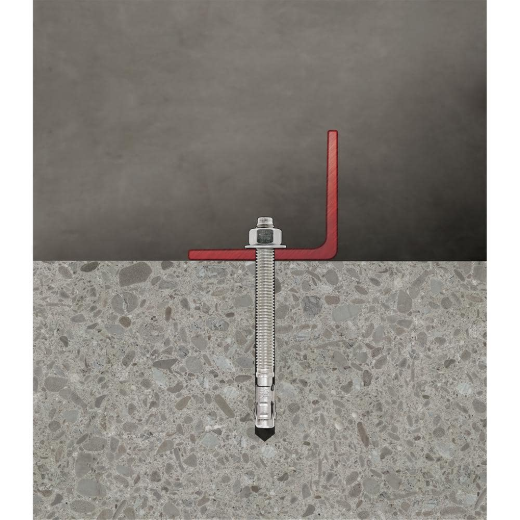

  • Non-bottom-bearing design for versatile installation.
  • Zinc plated for corrosion resistance.

Includes

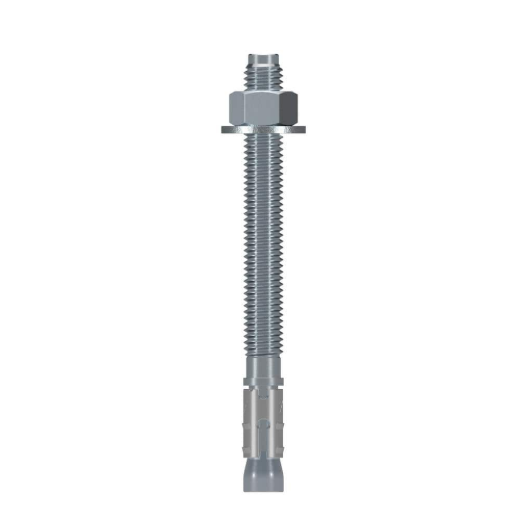

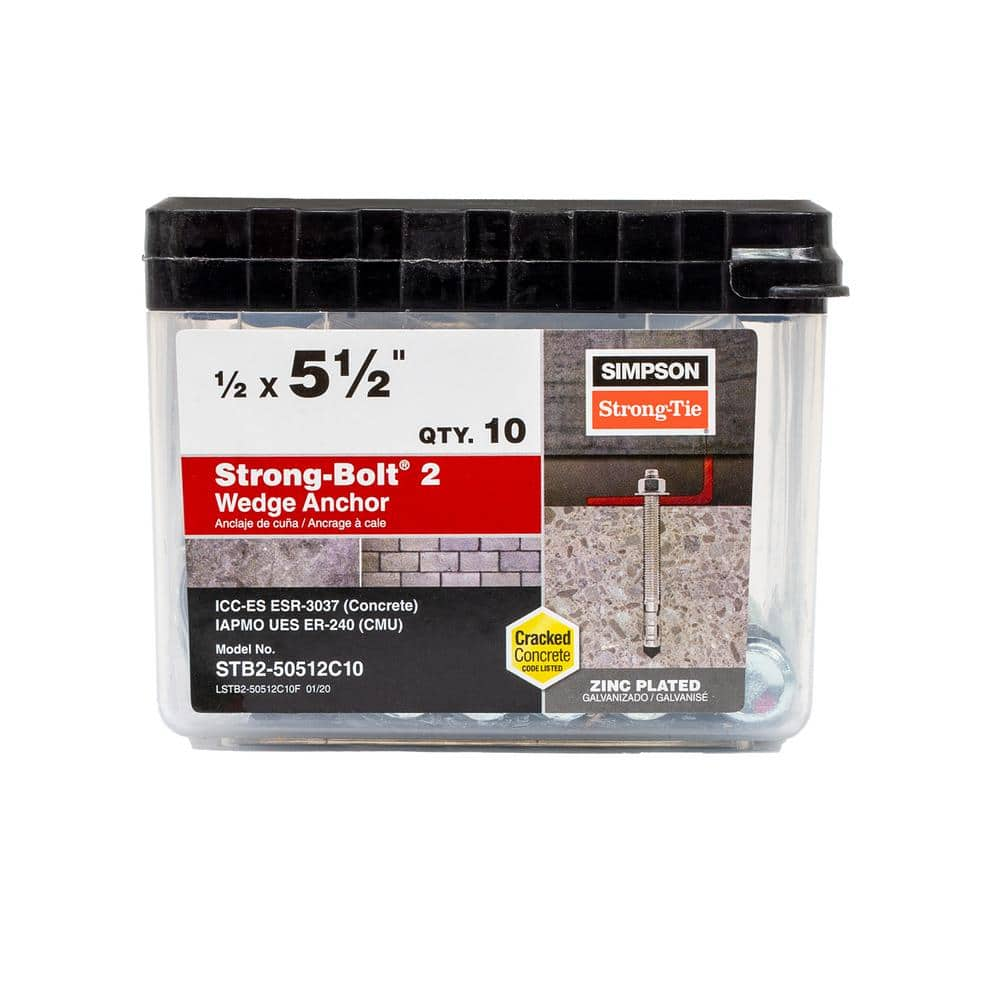

  • 10 x 1/2 inch x 5-1/2 inch Strong-Bolt 2 Wedge Anchors
Products specifications
diameter 1/2 inch
length 5-1/2 inch
material Carbon Steel
finish Zinc Plated
drill_size 1/2 inch

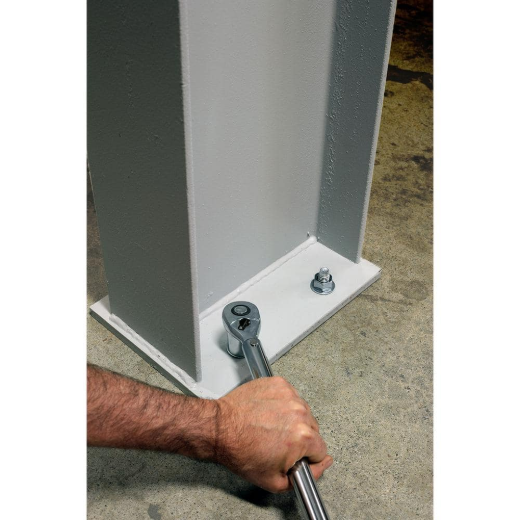

installation_torque 60 ft. lbs.
quantity 10
min_embedment_depth 2-3/4 to 4-1/2 inch
min_concrete_thickness 3-1/4 inch
*
*
*
