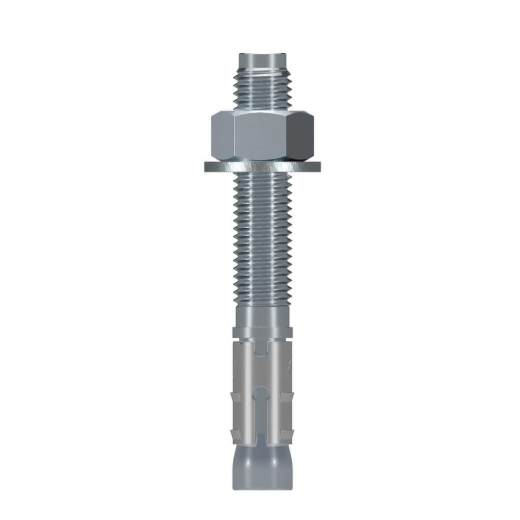

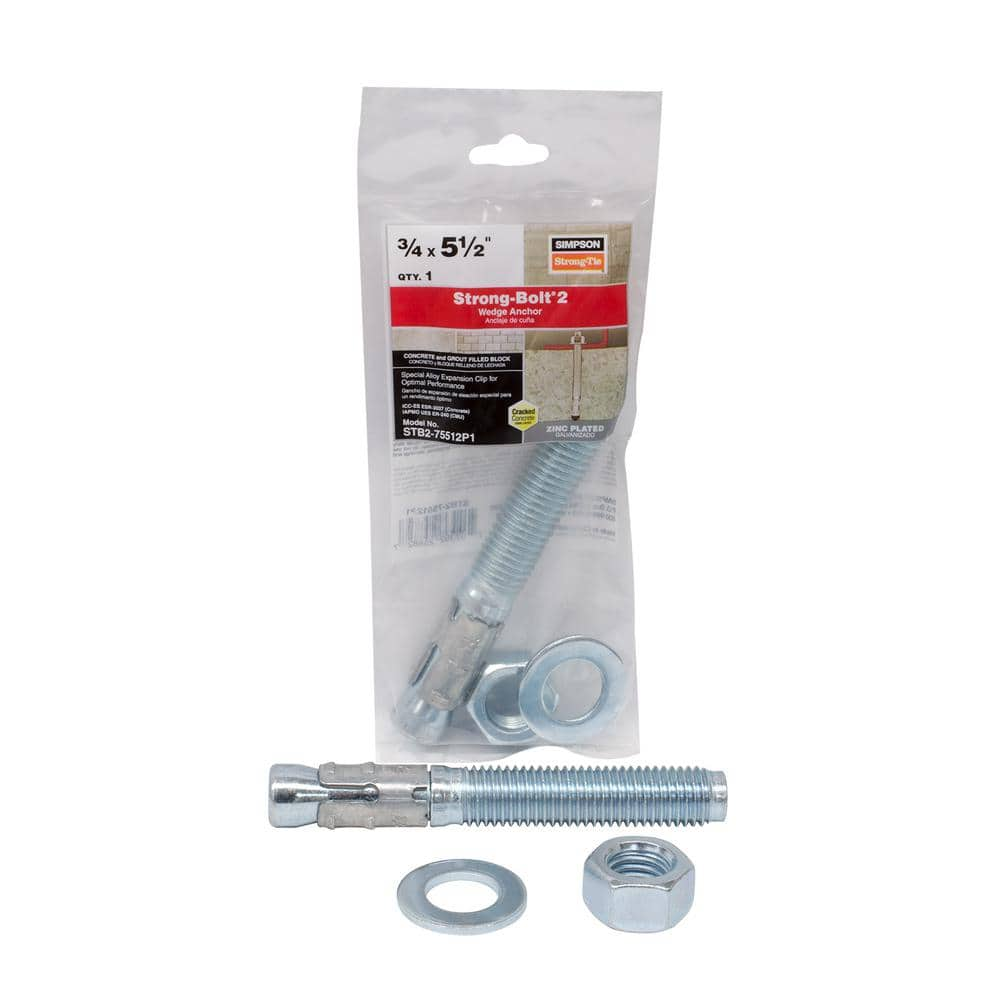

Simpson Strong-Bolt 2 Wedge Anchor

Mfr.: Simpson Strong-Tie
Item #: I093943
Mfr. #: STB2-75512P1
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $5.82
i h h

Description

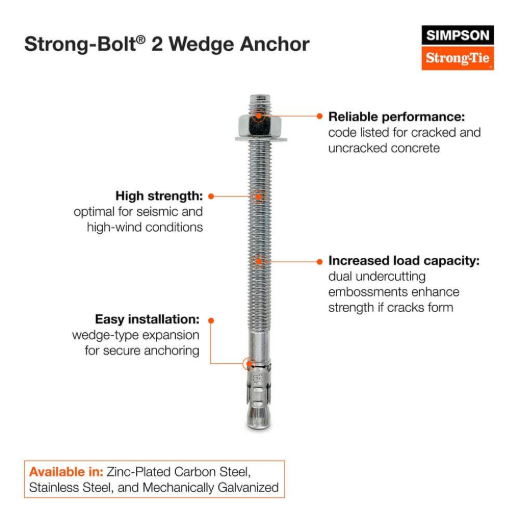

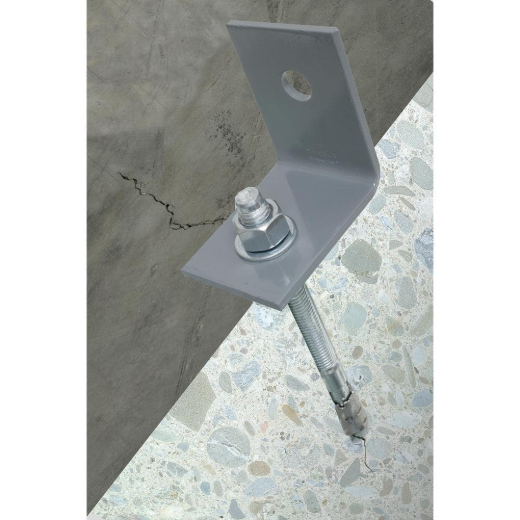

The Simpson Strong-Tie Strong-Bolt 2 is a high-performance wedge-type expansion anchor designed for demanding applications. It is code-listed for cracked and uncracked concrete, and masonry, making it suitable for seismic and high-wind conditions. The anchor features dual undercutting embossments for enhanced load-carrying capacity, especially if the concrete cracks. Its design ensures reliable performance in various orientations, including horizontal, vertical, and overhead.

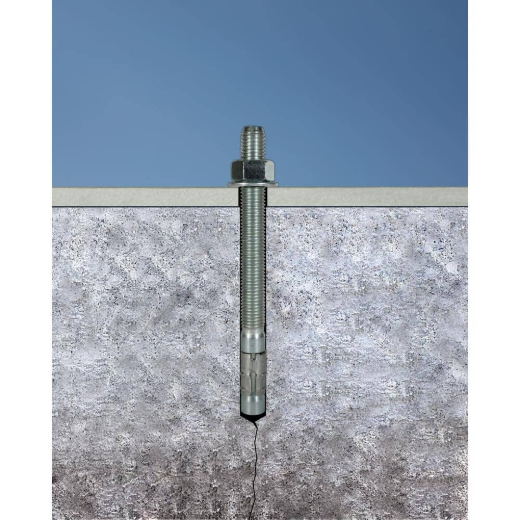

  • Code listed for cracked and uncracked concrete and masonry
  • Suitable for seismic and high-wind conditions

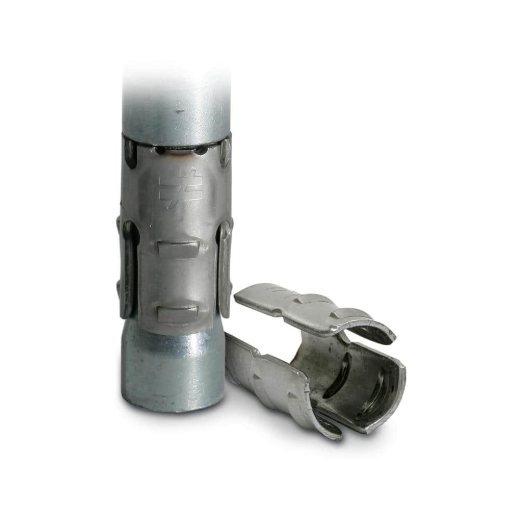

  • Dual undercutting embossments for secondary expansion

Features

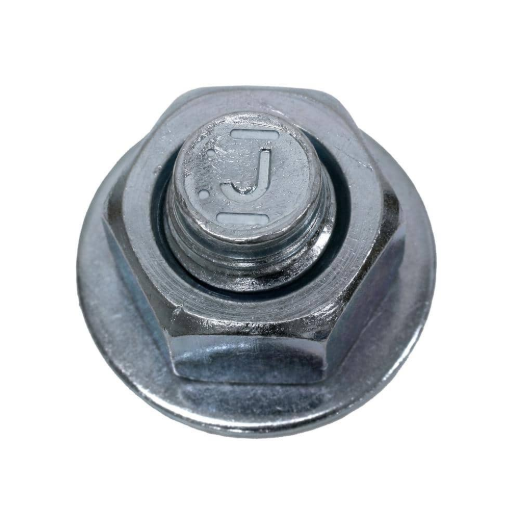

  • Chamfered top to prevent mushrooming during installation.
  • Qualified for static and seismic loading conditions (seismic design categories A through F).

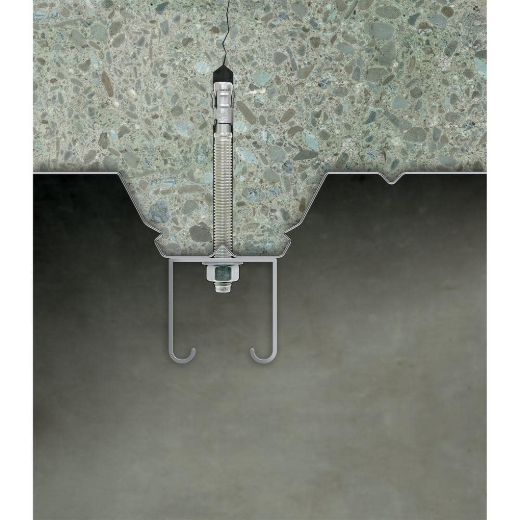

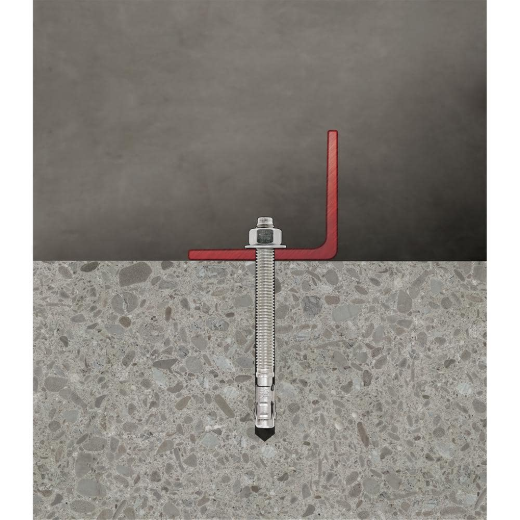

  • Suitable for horizontal, vertical and overhead applications.
  • Available in zinc-plated carbon steel, and stainless steel options.
Products specifications
Diameter 3/4 inch
Length 5-1/2 inch
Material Carbon Steel
Finish Zinc
Drill Size 3/4 inch
Thread Length 3-3/16 inch
Drive Type Hex
Minimum Concrete Thickness 3-1/4 inch
Maximum Torque 150 ft./lbs.
*
*
*
