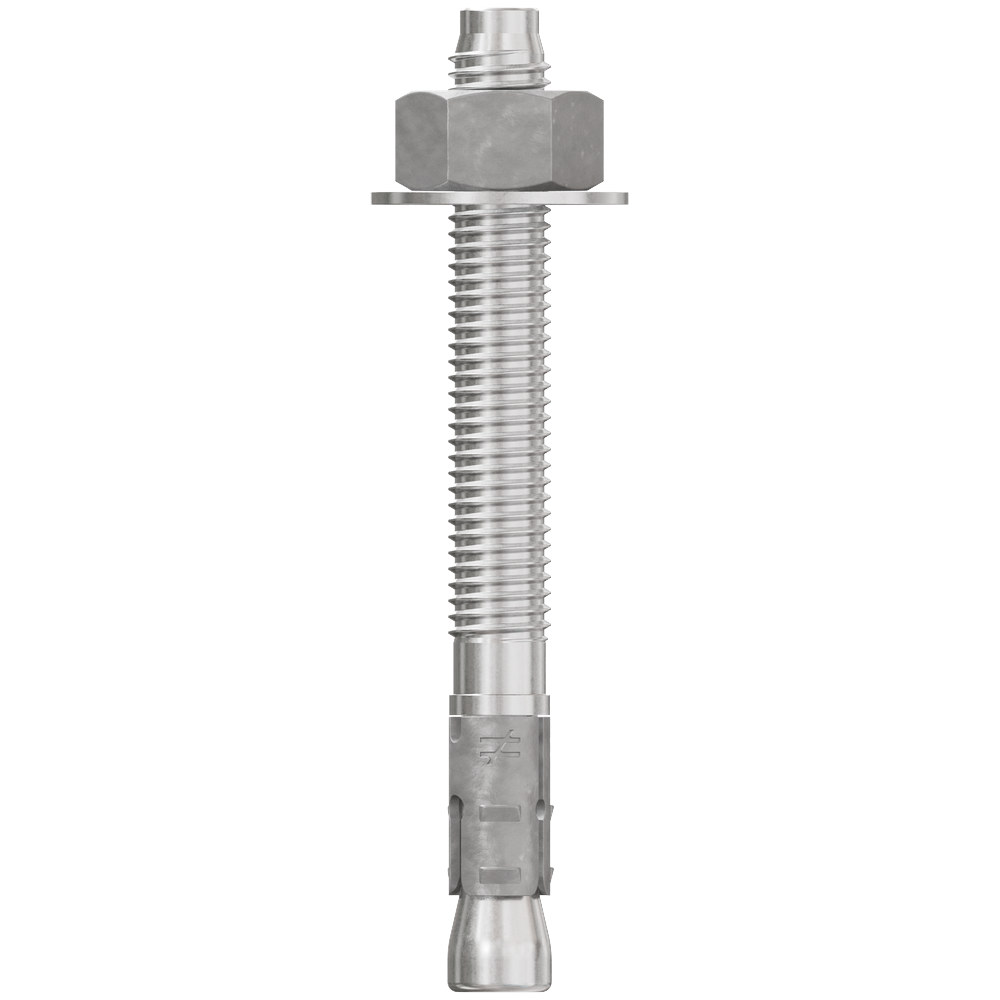

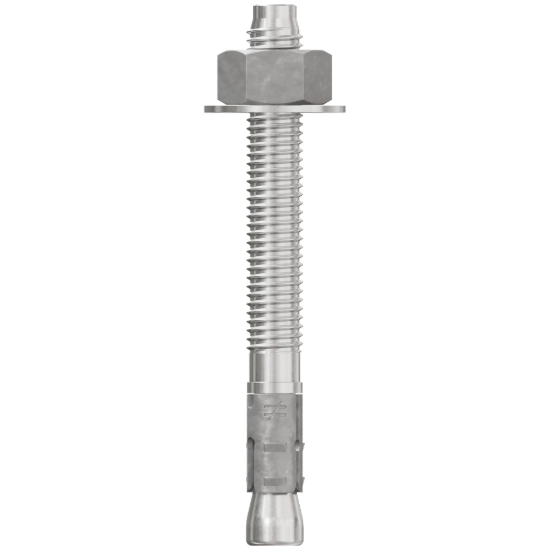

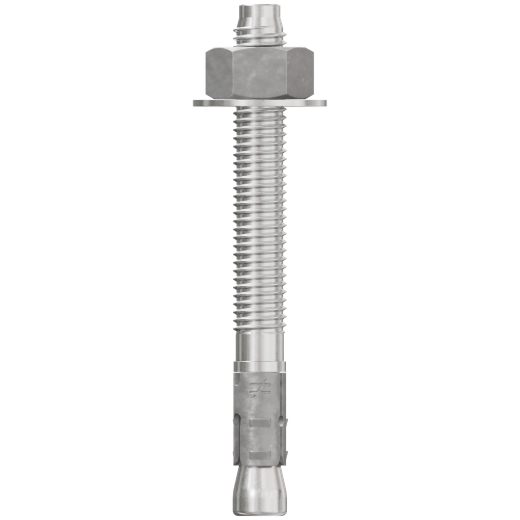

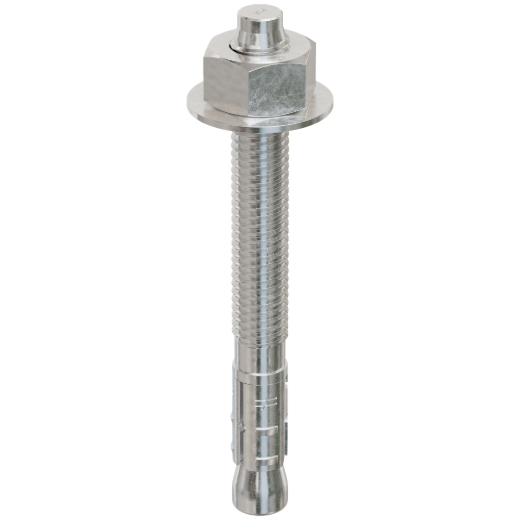

Simpson Strong-Bolt 2 - 1/2" x 4-3/4" Type 316 Stainless-Steel Wedge Anchor - 25/box

Mfr.: Simpson Strong-Tie
Item #: I093864
Mfr. #: STB2-50434S6F25
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $355.37
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Bolt 2 wedge anchor is a high-performance mechanical anchor designed for cracked and uncracked concrete. Made from Type 316 stainless steel, it offers excellent corrosion resistance for outdoor or harsh environments. This 1/2 inch diameter by 4-3/4 inch length anchor comes in a box of 25.
  • Type 316 stainless steel for superior corrosion resistance
  • Approved for cracked and uncracked concrete
  • 1/2 inch diameter, 4-3/4 inch length
  • 25 anchors per box

Features

  • ICBO/ICC-ES approved for seismic and wind loading
  • Suitable for outdoor, marine, and chemical environments
  • Easy installation with standard tools
  • Consistent expansion and holding power

Includes

  • 25 wedge anchors with nuts and washers

Specifications


Diameter1/2 inchLength4-3/4 inch
MaterialType 316 Stainless SteelFinishPlain (316 SS)
Box Quantity25Anchor TypeWedge Anchor
Thread Length1-1/4 inchMin Embedment2-1/4 inch
Max Fixture Thickness2-1/2 inchDrill Bit Size1/2 inch
Tensile Strength (psi)125,000Shear Strength (psi)100,000
StandardsICC-ES ESR-3187
*
*
*
