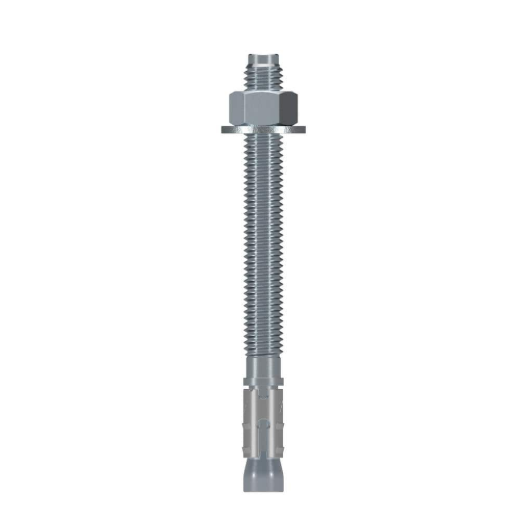

Simpson Strong Bolt 2 Wedge Anchor

Mfr.: Simpson Strong-Tie
Item #: I093869
Mfr. #: STB2-50512P1
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $3.66
i h h

Description

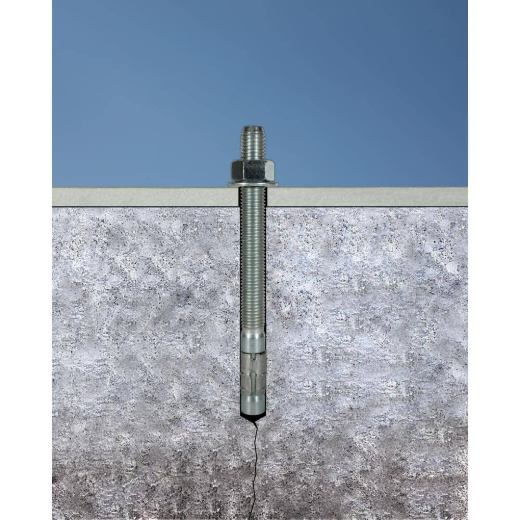

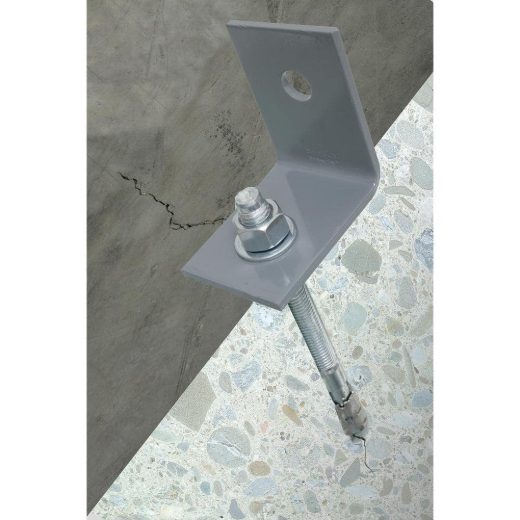

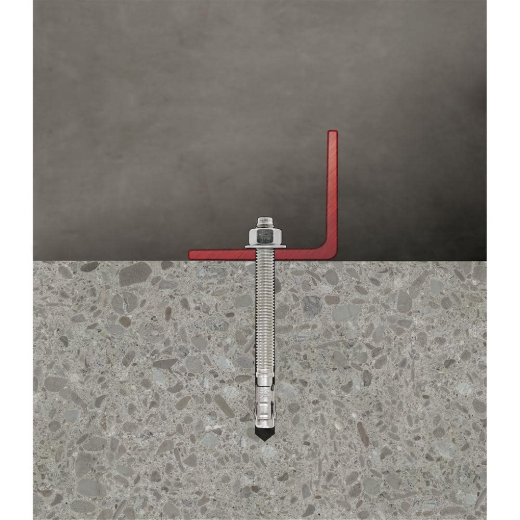

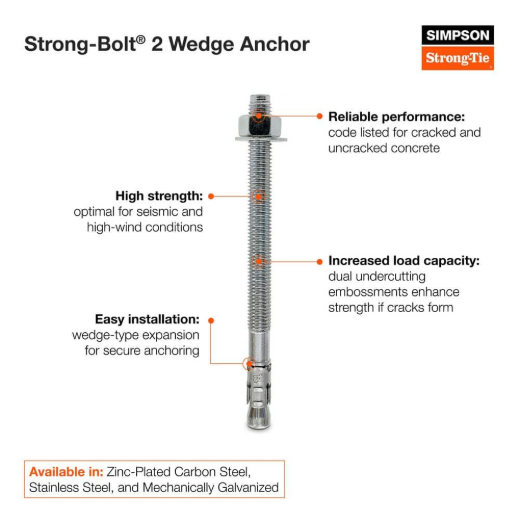

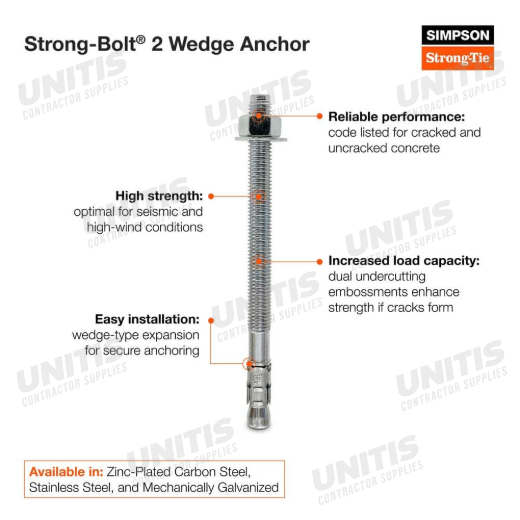

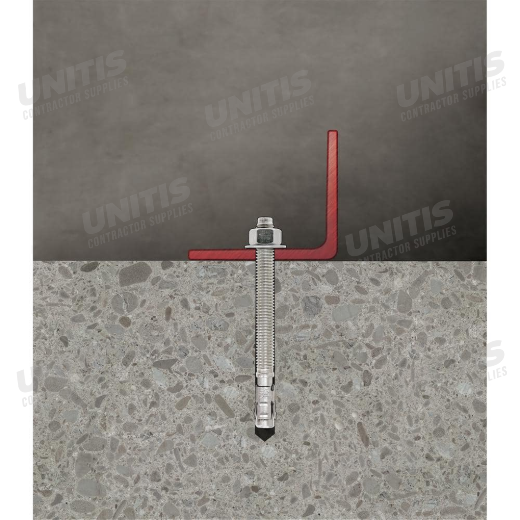

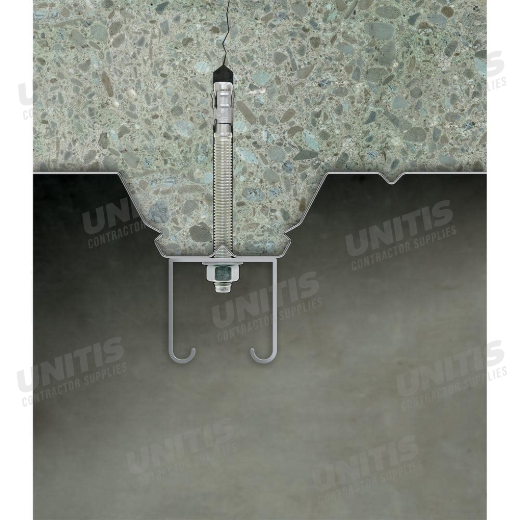

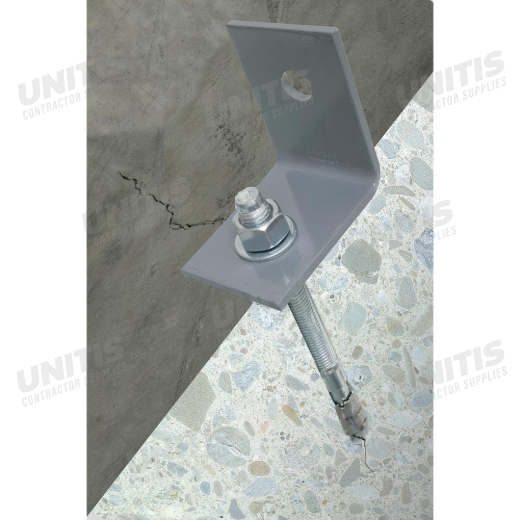

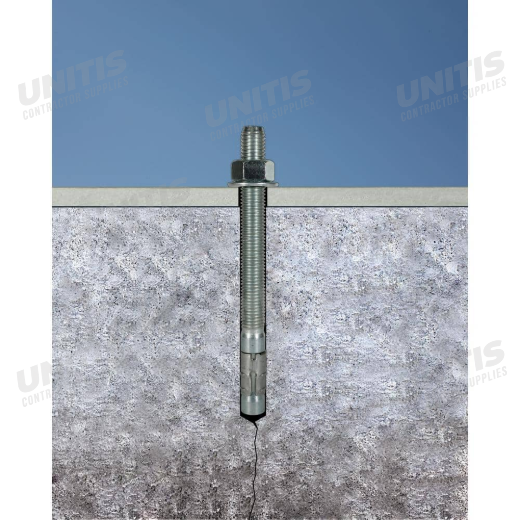

The Simpson Strong-Tie Strong-Bolt 2 is a high-performance wedge anchor designed for use in cracked and uncracked concrete, as well as masonry applications. It is an optimal choice for demanding conditions, including seismic and high-wind environments. The anchor features dual undercutting embossments on its clip segments, which provide secondary expansion if a crack forms, significantly increasing its load-carrying capacity when the hole expands. Its chamfered top is engineered to prevent mushrooming during installation, ensuring a clean and secure fit.
  • Code listed for cracked and uncracked concrete and masonry
  • Suitable for seismic and high-wind conditions

Features

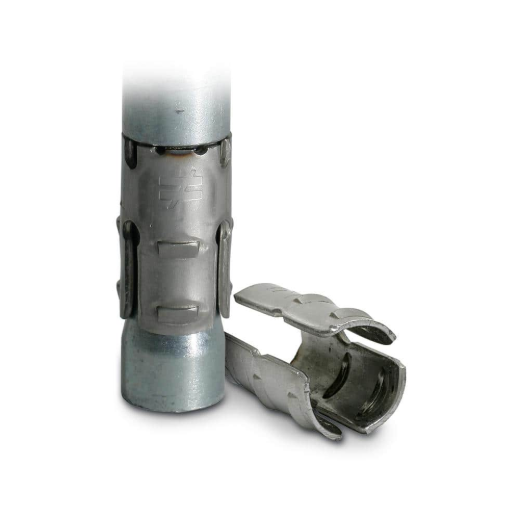

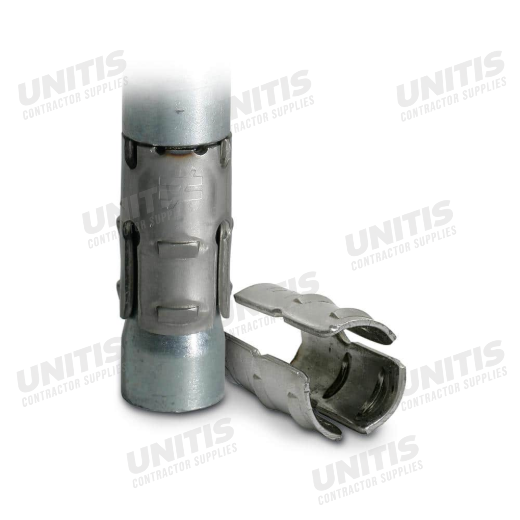

  • Dual undercutting embossments for enhanced load capacity in cracked concrete.

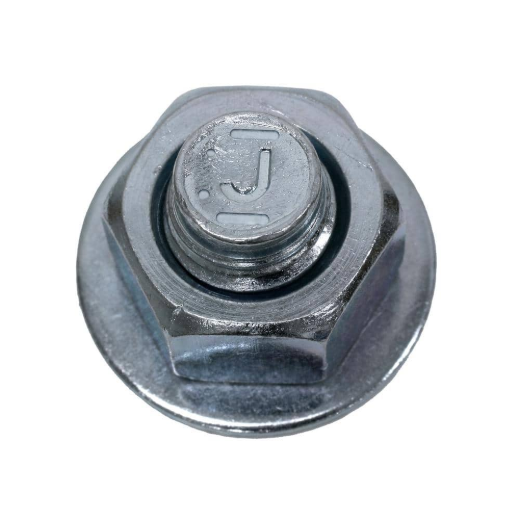

  • Chamfered top prevents mushrooming during installation.
  • Qualified for static and seismic loading conditions (SDC A-F).

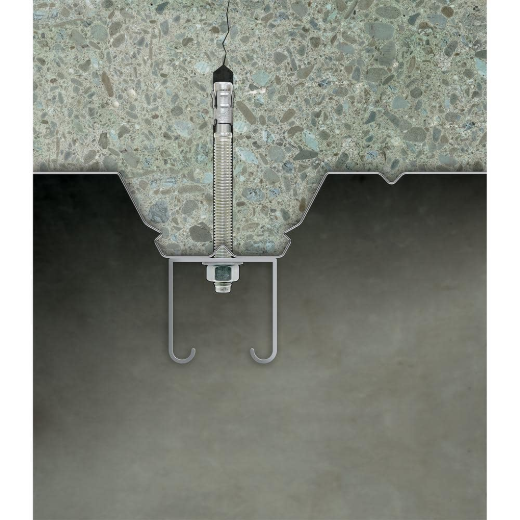

  • Suitable for horizontal, vertical, and overhead applications.
  • Tested per ACI355.2 and AC193.

Includes

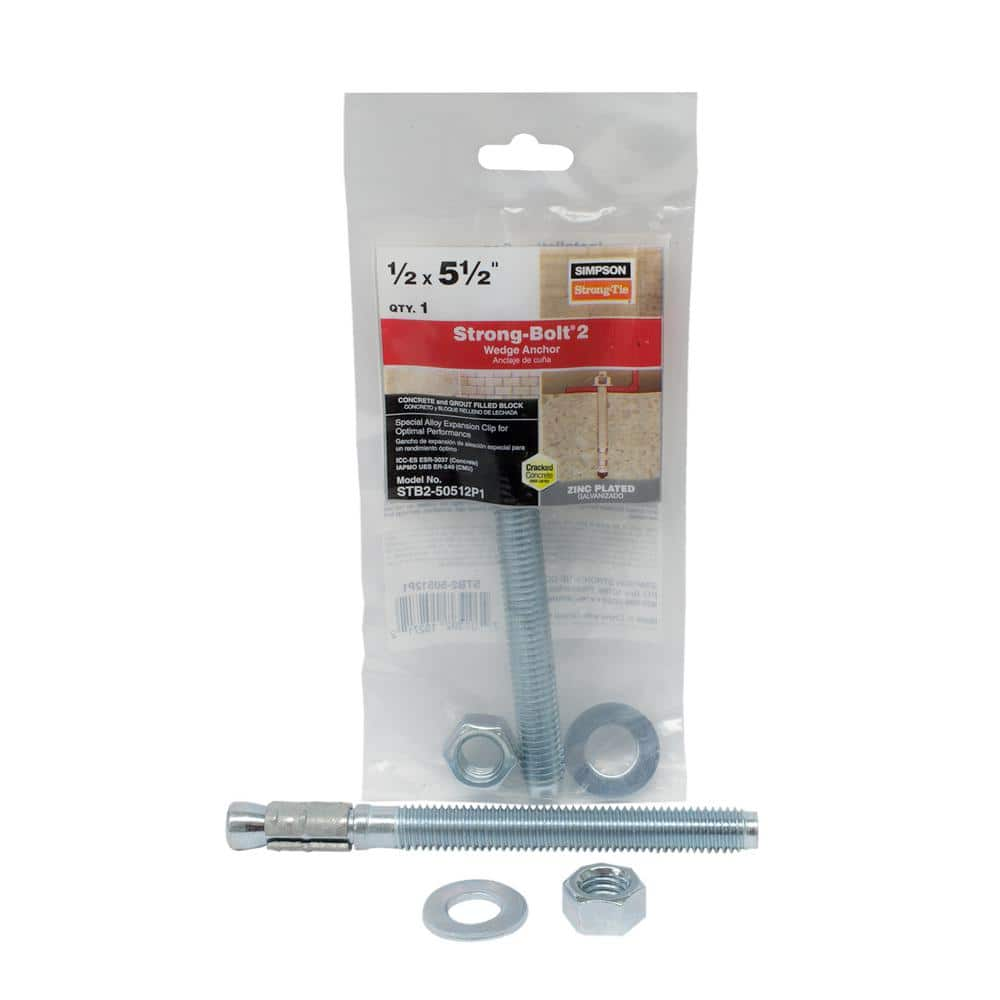

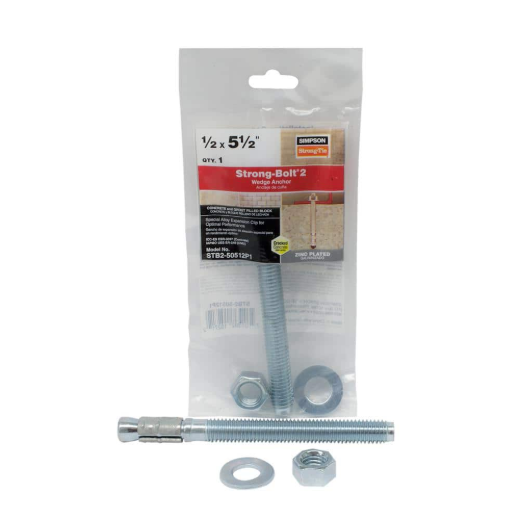

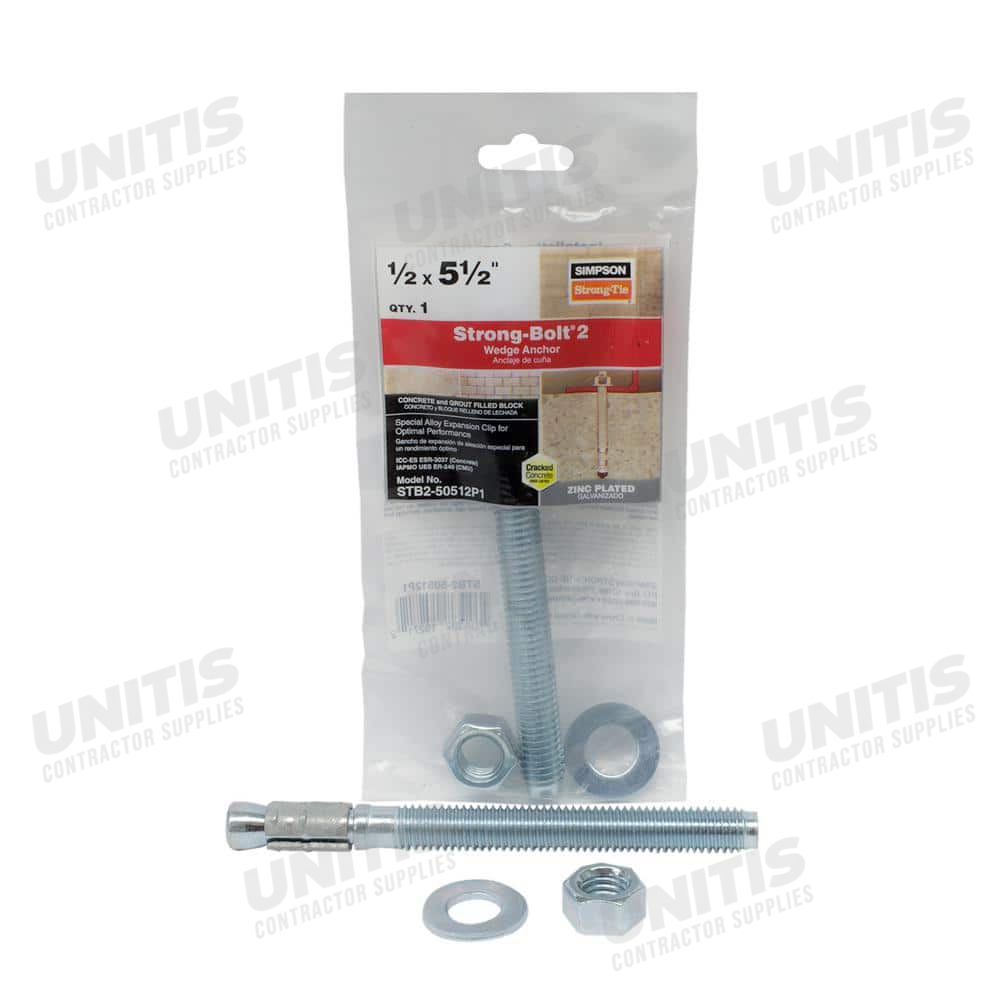

  • 1 x Strong-Bolt 2 Wedge Anchor
Products specifications
Diameter 1/2 inch
Length 5-1/2 inch
Material Carbon Steel
Finish Zinc Plated

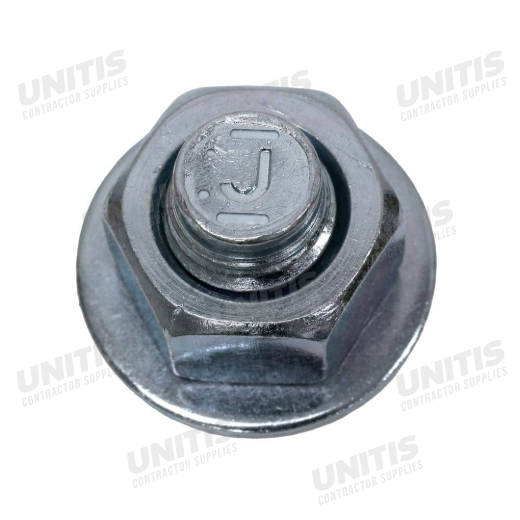

Head Type Chamfered
Drill Size 1/2 inch
Min. Concrete Thickness 3-1/4 inch
Tensile Strength 115000 psi
*
*
*
