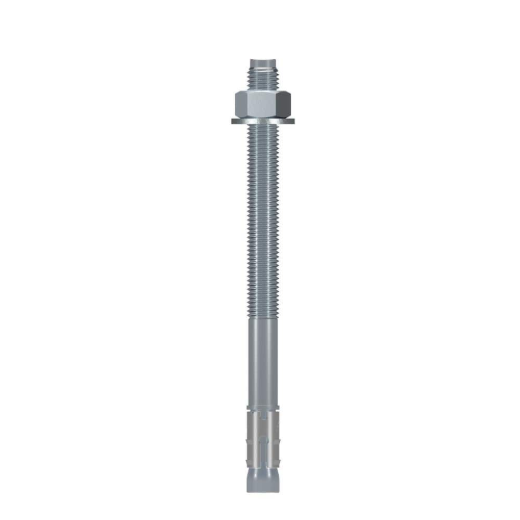

Simpson Strong-Bolt 2 Wedge Anchor 3/4 inch x 10

Mfr.: Simpson Strong-Tie
Item #: I093932
Mfr. #: STB2-75100P1
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $12.40
i h h

Description

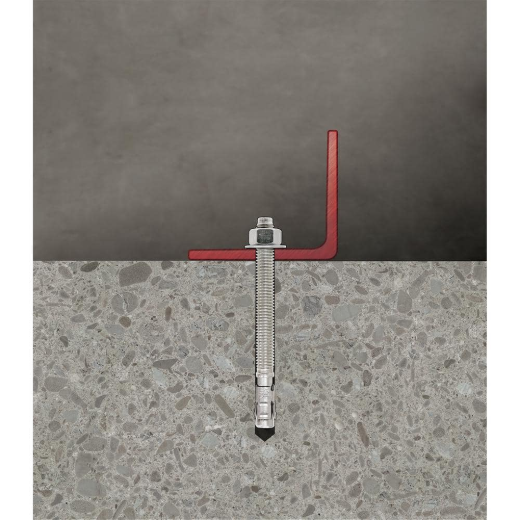

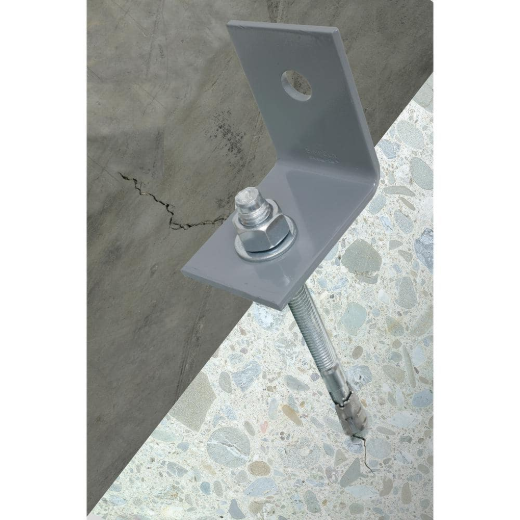

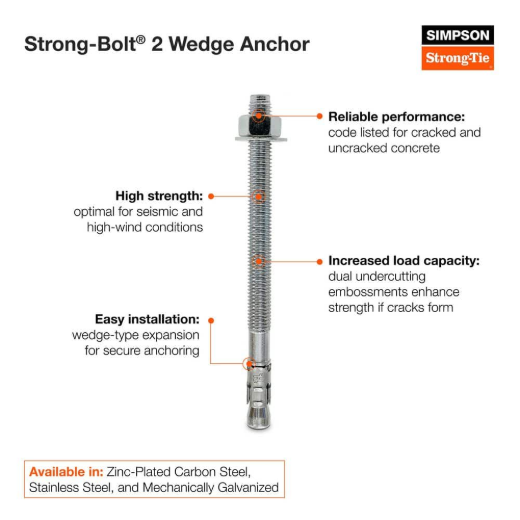

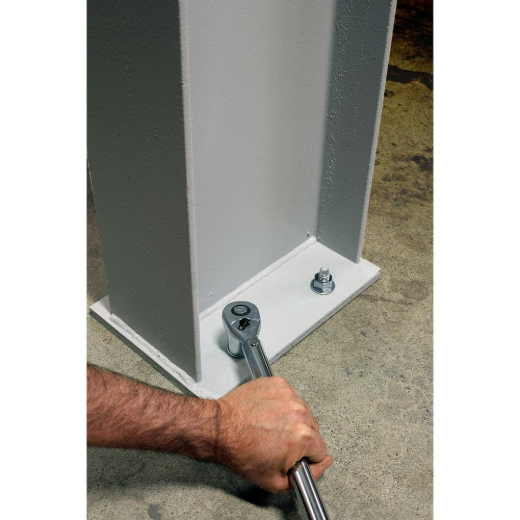

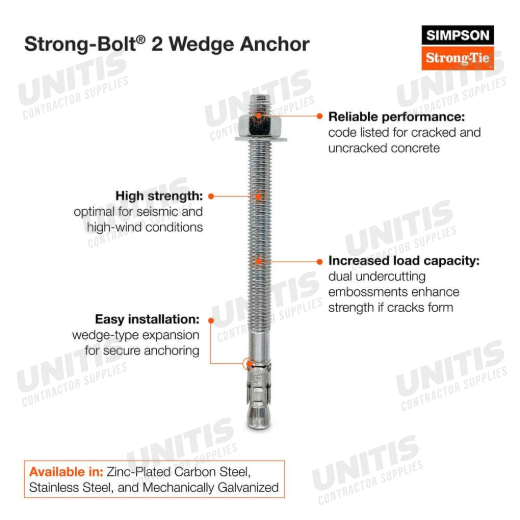

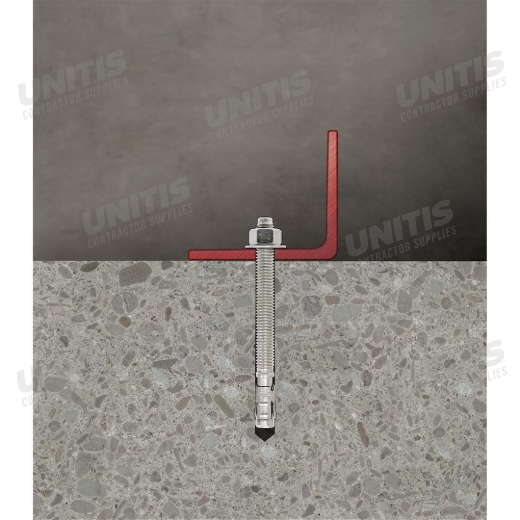

The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete and masonry. It is engineered for optimal performance in seismic and high-wind conditions, making it ideal for critical applications like beam and column anchorage, cable supports, elevators, and escalators. This versatile anchor can be mounted vertically, horizontally, or overhead, providing flexibility for various installation scenarios.
  • Zinc-plated carbon steel construction
  • Suitable for static and seismic loading

Features

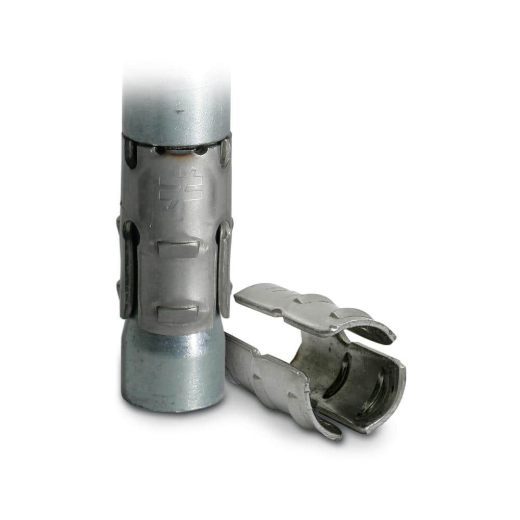

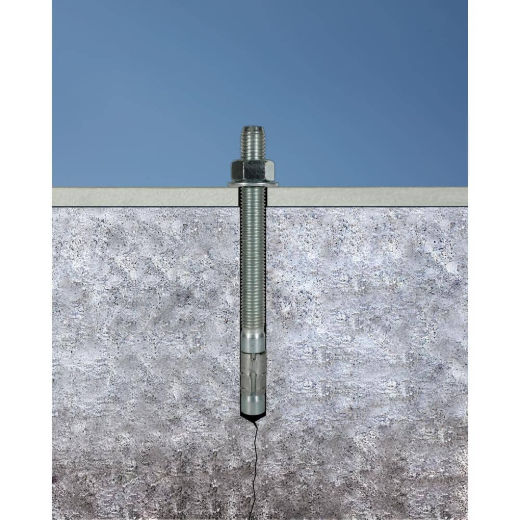

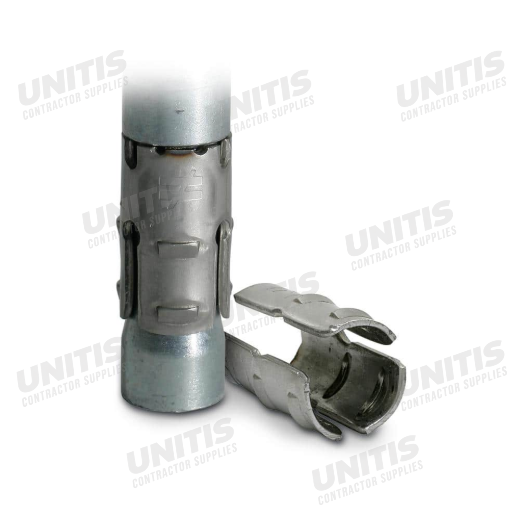

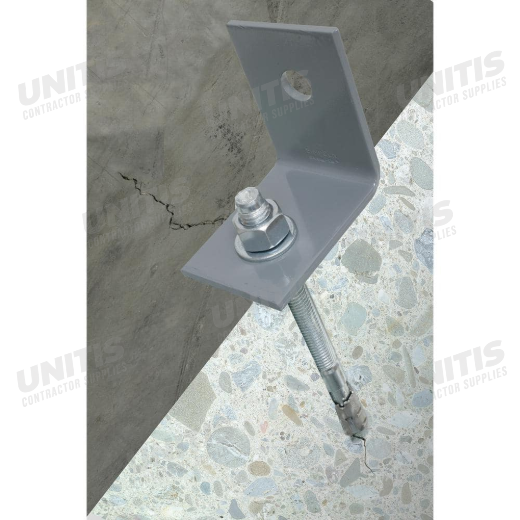

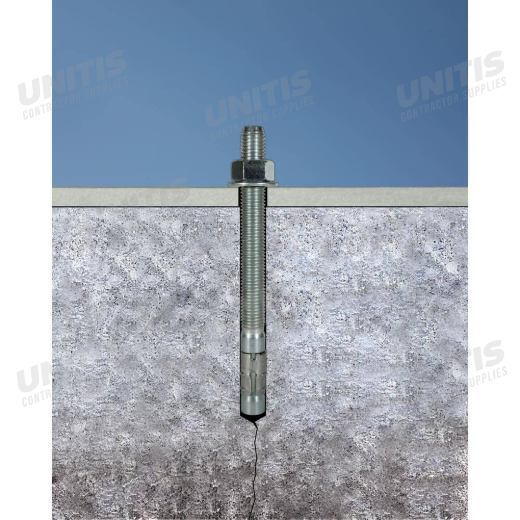

  • Dual undercutting embossments on clip segments enable secondary expansion if a crack intersects the anchor location, enhancing load-carrying capacity.

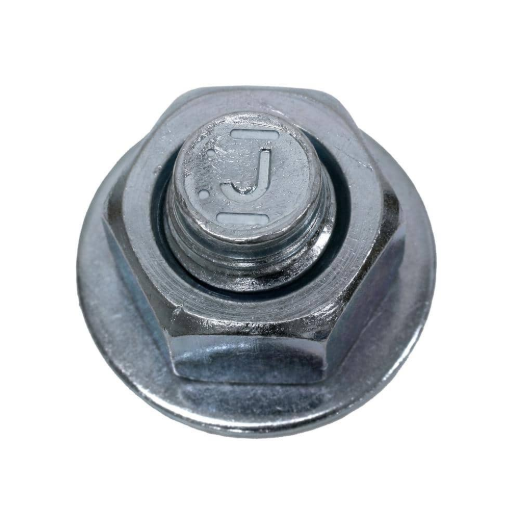

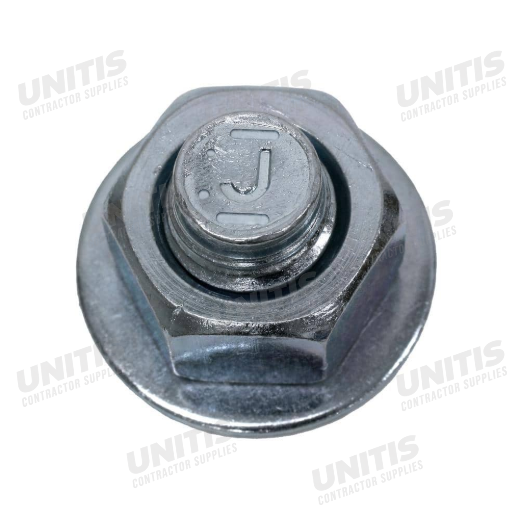

  • Chamfered top designed to prevent mushrooming during installation.

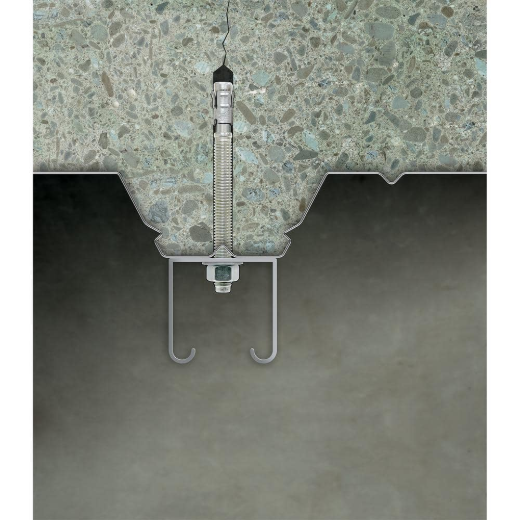

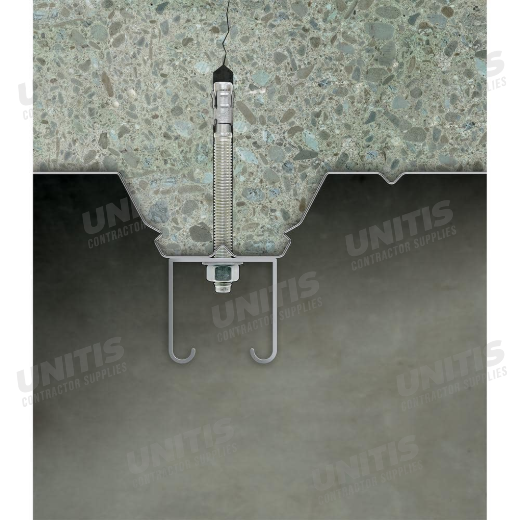

  • Qualified for minimum concrete thickness of 3 1/4 in., and lightweight concrete-over-steel deck thickness of 2 1/2 in. and 3 1/4 in.
  • Tested per ACI355.2 and AC193.

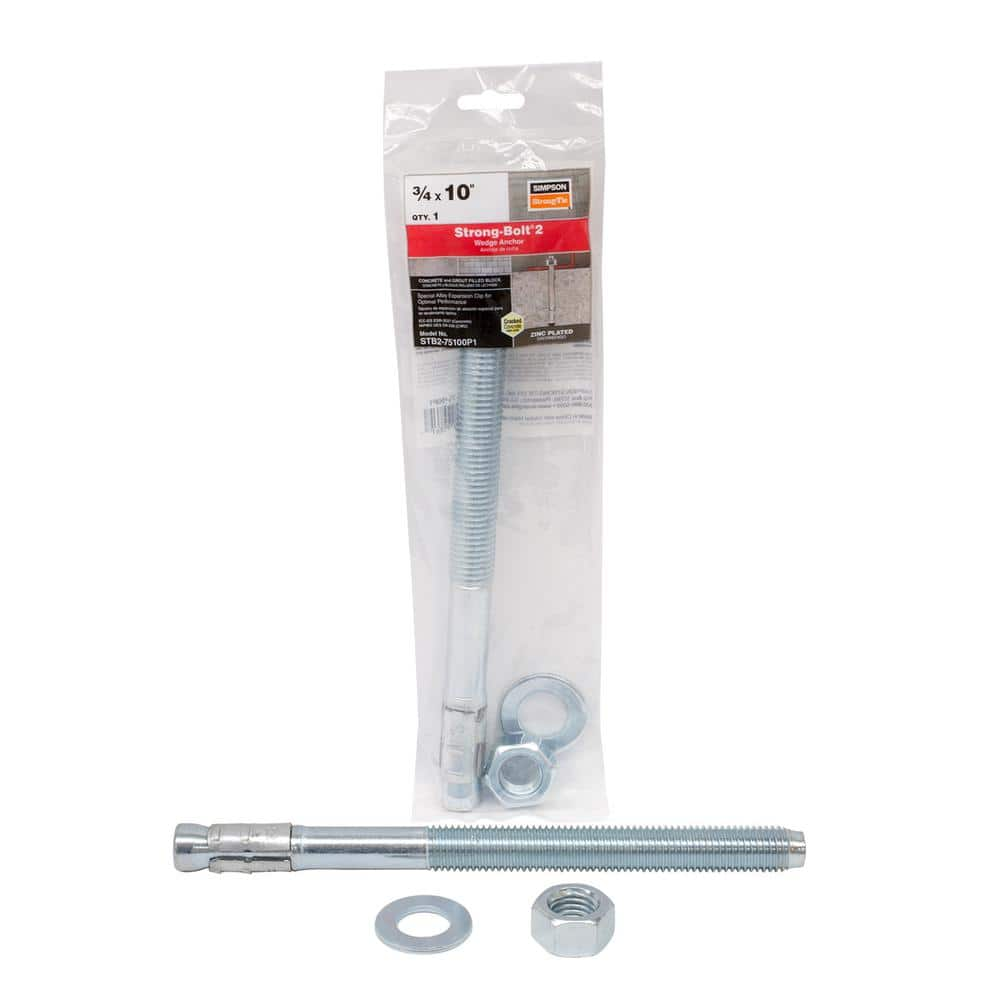

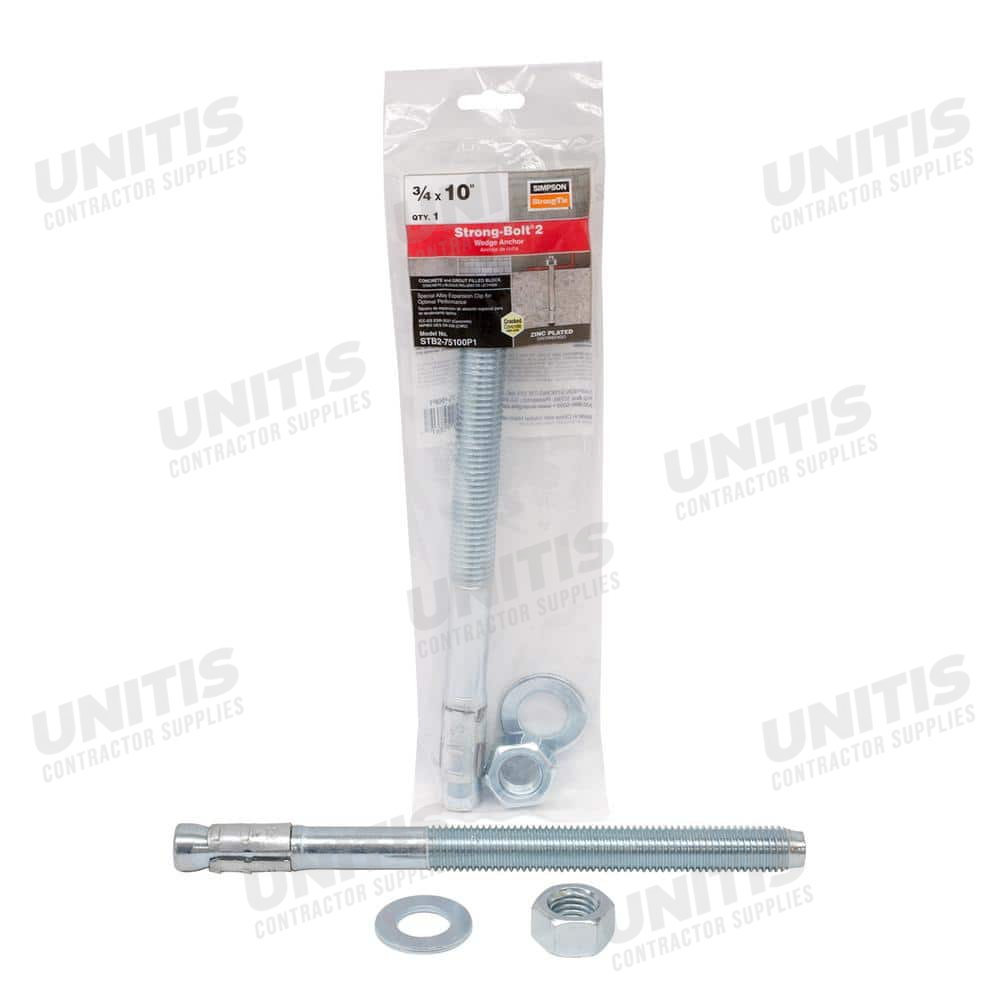

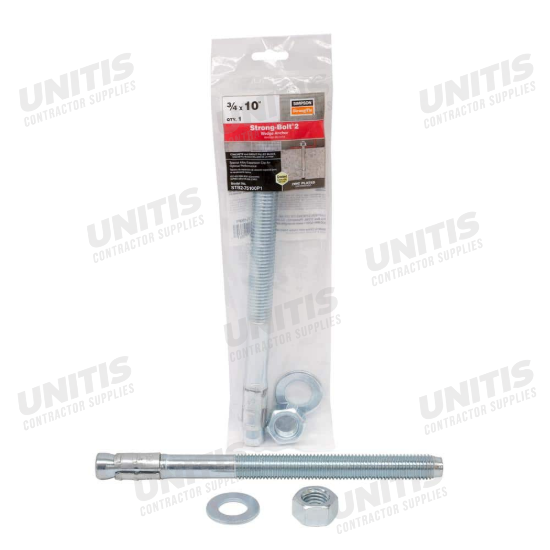

Includes

  • 1 x Strong-Bolt 2 Wedge Anchor
  • Nut
  • Washer
  • Clip
Products specifications
Diameter 3/4 inch
Length 10 inch
Material Zinc-plated carbon steel
Drill Bit Size 3/4 inch

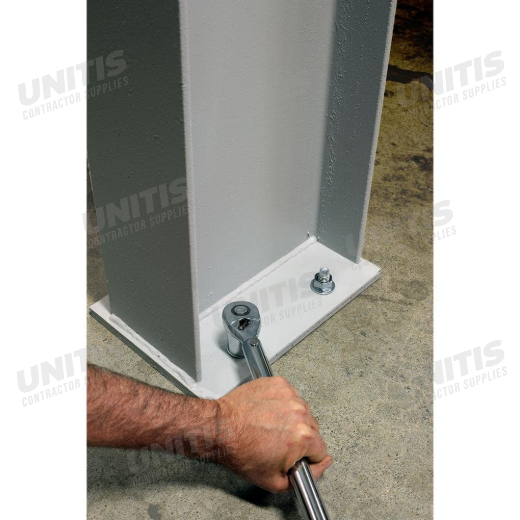

Installation Torque 150 ft. lbs
Application Type Concrete
Usage Type Interior, Dry Conditions
Fastener Head Type Chamfered Top
*
*
*
