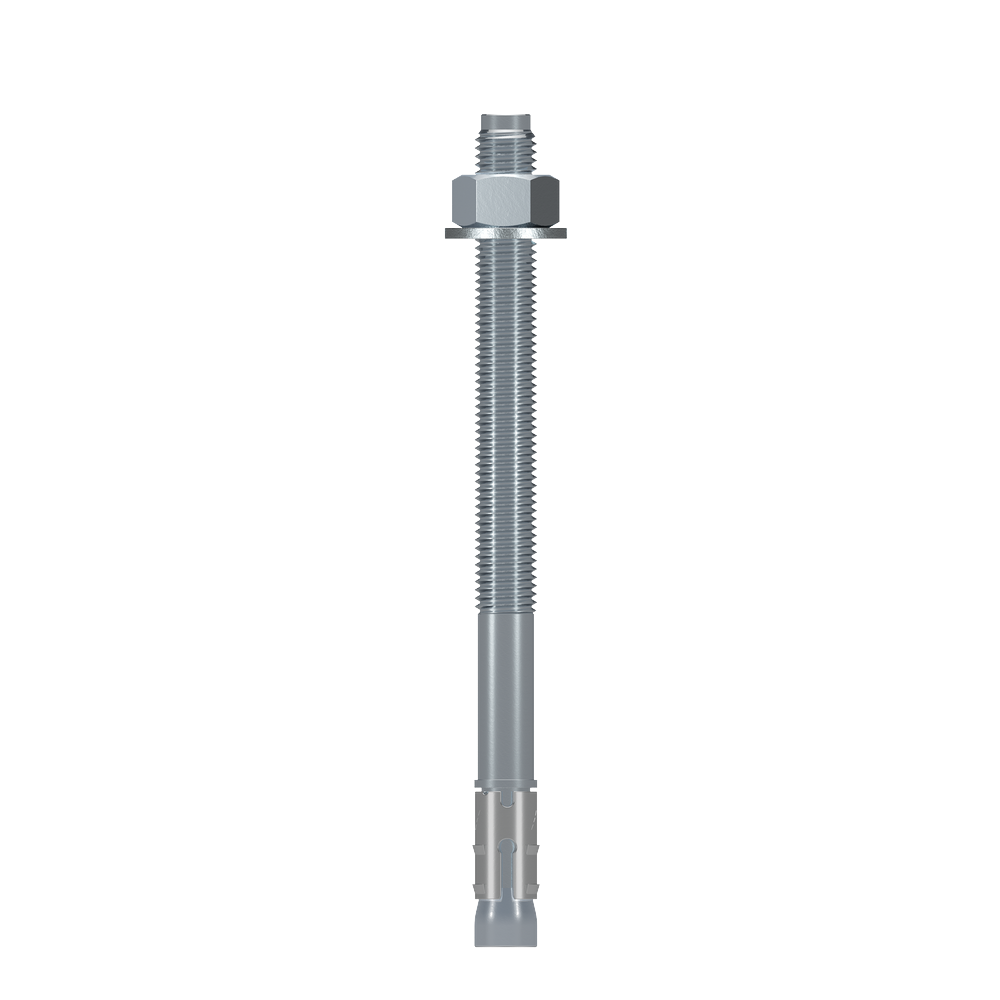

Simpson Strong-Bolt 2 - 3/4" x 10" Wedge Anchor - 8/box

Mfr.: Simpson Strong-Tie
Item #: I093929
Mfr. #: STB2-75100F8
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $73.04
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Tie Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 is available in zinc-plated carbon steel, mechanically galvanized carbon steel, and Type 304 and Type 316 stainless steel.
  • Code listed for cracked and uncracked concrete, and masonry applications
  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Tested per ACI355.2 and AC193

Features

  • Code listed for cracked and uncracked concrete, and masonry applications
  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions (seismic design categories A through F)
  • Suitable for horizontal, vertical and overhead applications
  • Tested per ACI355.2 and AC193
  • Size: 3/4 in. x 10 in.

Specifications


Size3/4 inch x 10 inch
*
*
*
