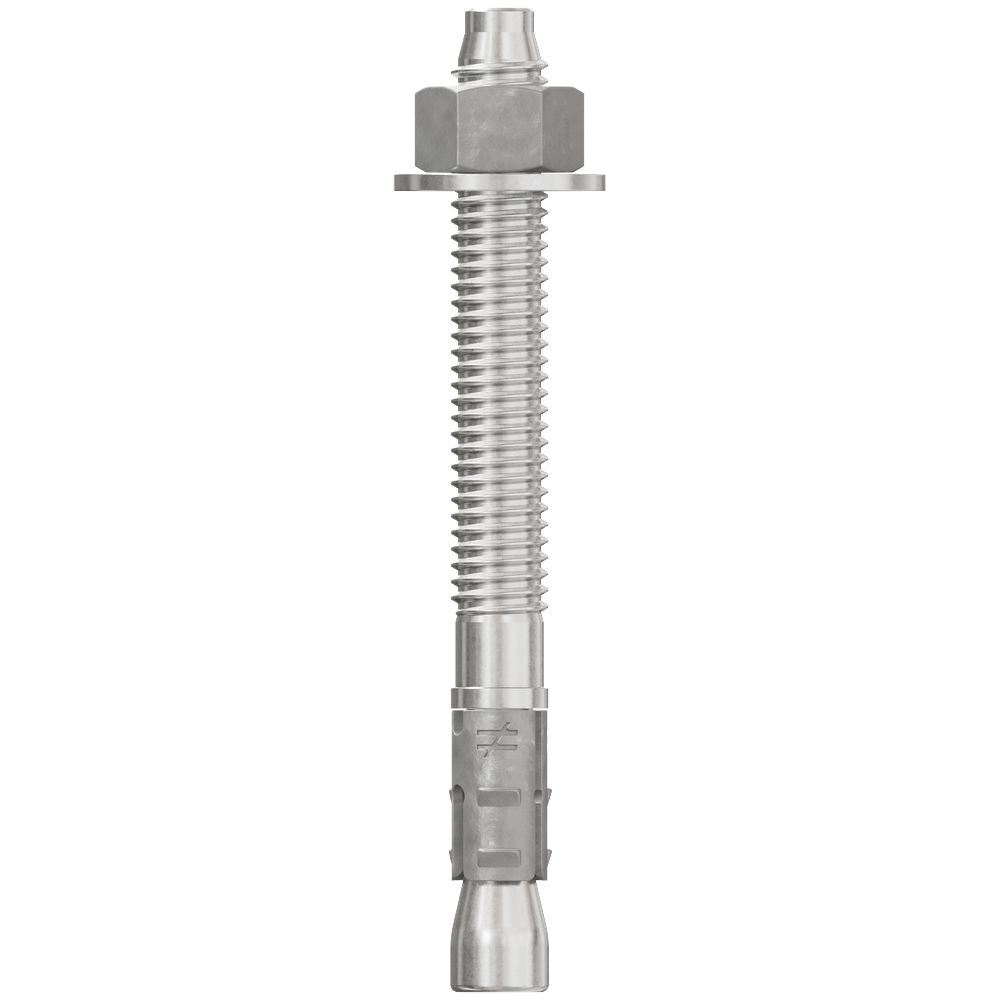

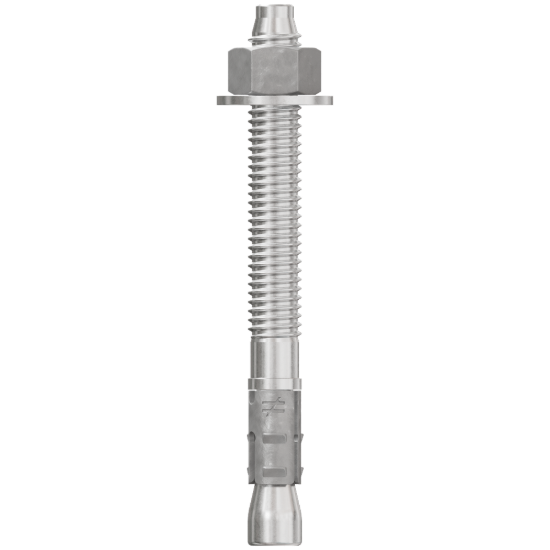

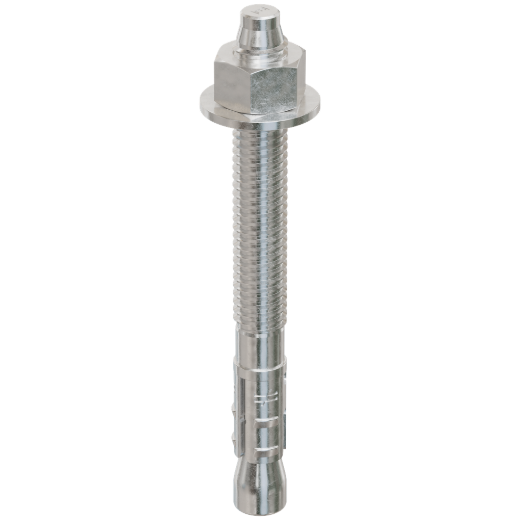

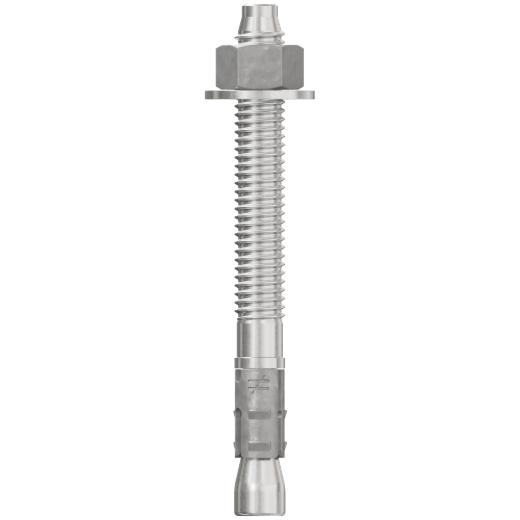

Simpson Strong-Bolt 2 - 3/8" x 3-3/4" Type 316 Stainless-Steel Wedge Anchor - 50/box

Mfr.: Simpson Strong-Tie
Item #: I093820
Mfr. #: STB2-37334S6F50
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $326.67
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Bolt 2 wedge anchor is a high-performance mechanical anchor designed for cracked and uncracked concrete. Made from Type 316 stainless steel, it offers superior corrosion resistance for outdoor and harsh environments. This 3/8 inch diameter by 3-3/4 inch length anchor comes in a box of 50.
  • Type 316 stainless steel for maximum corrosion resistance
  • Approved for cracked and uncracked concrete
  • IC-ES ESR-3044 listed
  • Easy installation with standard tools

Features

  • Suitable for seismic and wind loading applications
  • Expansion wedge design provides consistent holding values
  • Color-coded end for easy identification
  • Drill bit size: 3/8 inch

Includes

  • 50 wedge anchors per box

Specifications


Diameter3/8 inchLength3-3/4 inch
MaterialType 316 Stainless SteelFinishSmooth
Box Quantity50Drill Bit Size3/8 inch
Min Embedment1-1/2 inchMax Fixture Thickness1-1/4 inch
Thread Length1-1/4 inchHead TypeHex nut
StandardsIC-ES ESR-3044ApplicationCracked & uncracked concrete
*
*
*
