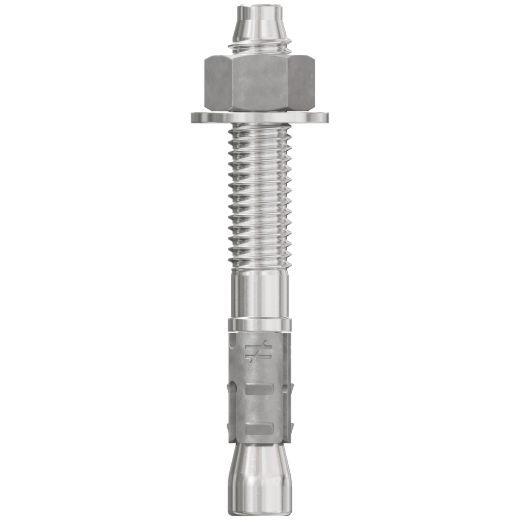

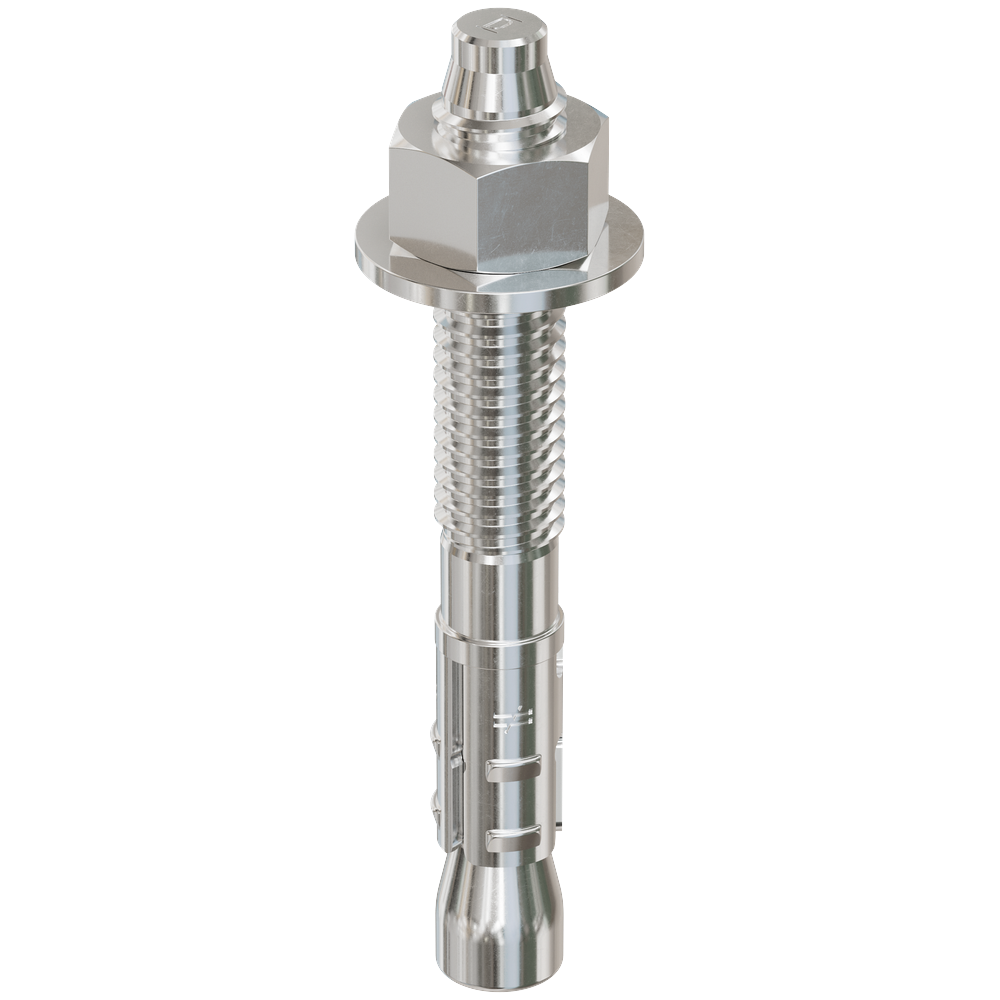

Simpson Strong-Bolt 2 - 3/8" x 3" Type 304 Stainless-Steel Wedge Anchor - 50/box

Mfr.: Simpson Strong-Tie
Item #: I093808
Mfr. #: STB2-37300S4F50
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $173.60
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Strong-Bolt 2 wedge anchor is a high-performance expansion anchor for cracked and uncracked concrete, with dual undercutting embossments for secondary expansion. It offers long-lasting corrosion resistance for various service environments.
  • Chamfered top prevents mushrooming during installation
  • Qualified for static and seismic loading (SDC A through F)
  • Suitable for horizontal, vertical, and overhead applications
  • Qualified for minimum concrete thickness of 3 1/4 inch and lightweight concrete-over-steel deck

Features

  • Type 304 stainless steel construction
  • Wedge-type expansion anchor
  • Dual undercutting embossments for crack resistance
  • Fully assembled design
  • 50 anchors per box

Includes

  • 50 wedge anchors

Specifications


ModelSTB2-37300S4F50Diameter3/8 inch
Length3 inchMaterialType 304 Stainless Steel
FinishStainless SteelQuantity per Box50
Anchor TypeWedge AnchorApplicationCracked and uncracked concrete
Seismic RatingSDC A through FMinimum Concrete Thickness3 1/4 inch
*
*
*
