Simpson Strong-Bolt 2 Wedge Anchor 5/8 inch x 5

Mfr.: Simpson Strong-Tie
Item #: I093902
Mfr. #: STB2-62500C10
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $29.67
i h h

Description

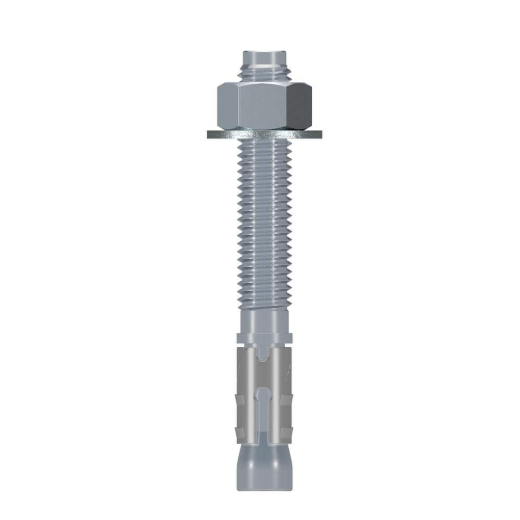

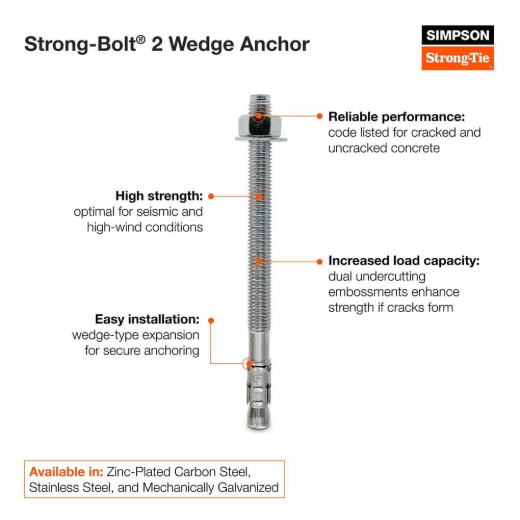

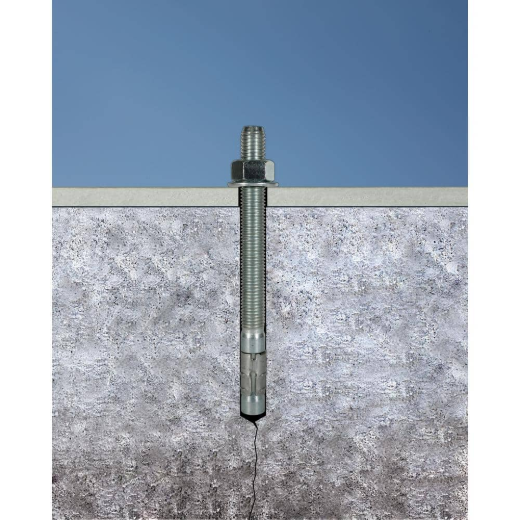

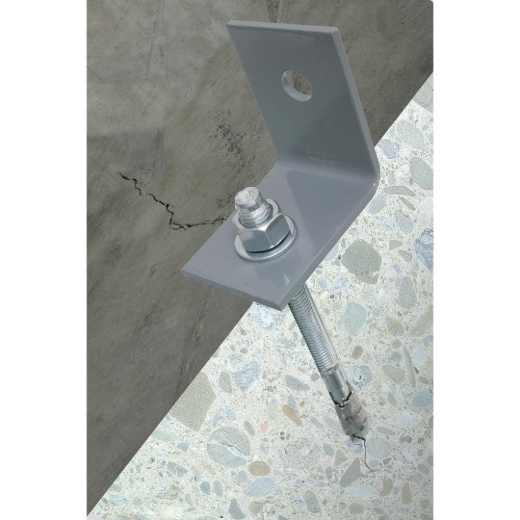

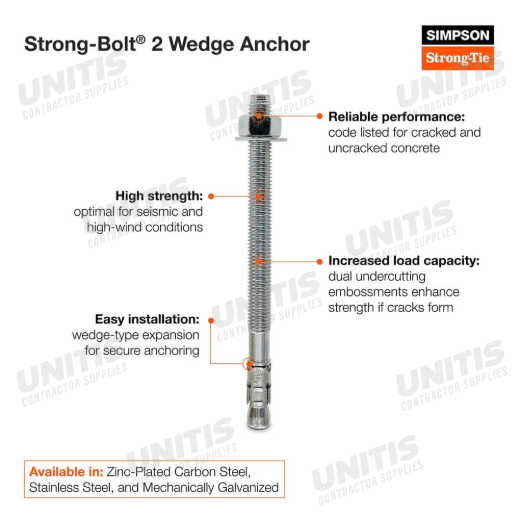

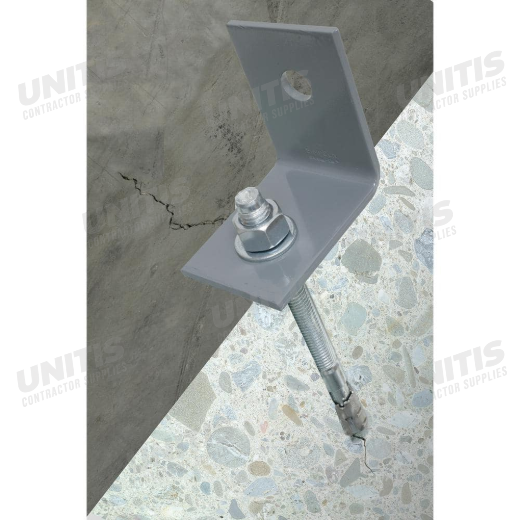

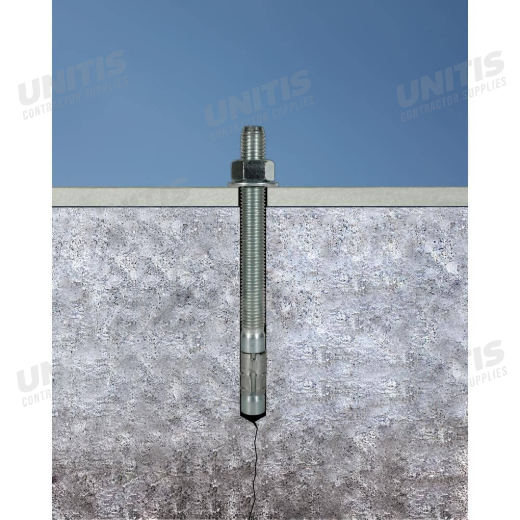

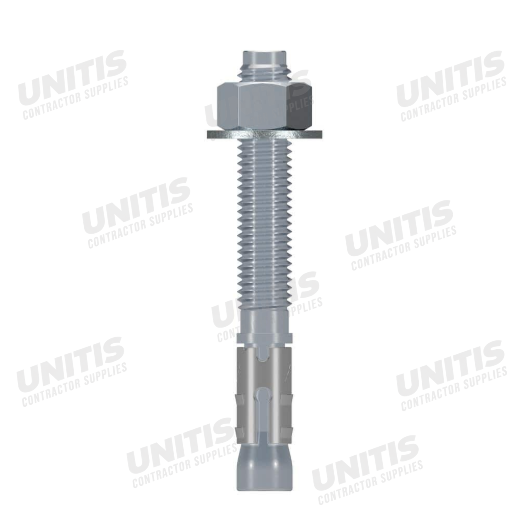

The Simpson Strong-Tie Strong-Bolt 2 is a high-performance, wedge-type expansion anchor designed for demanding applications, including seismic and high-wind conditions. It is code-listed for use in both cracked and uncracked concrete and masonry. The anchor features dual undercutting embossments on its clip segments, providing secondary expansion if a crack forms, which enhances its load-carrying capacity. This fully assembled anchor, complete with nut and washer, ensures consistent and reliable anchoring.

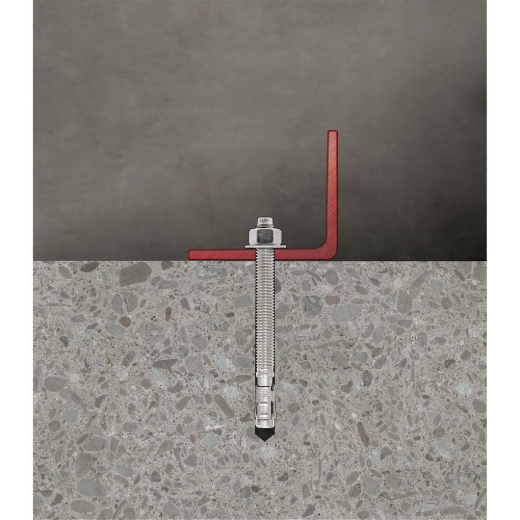

  • For cracked and uncracked concrete and masonry
  • Qualified for seismic and static loading

Features

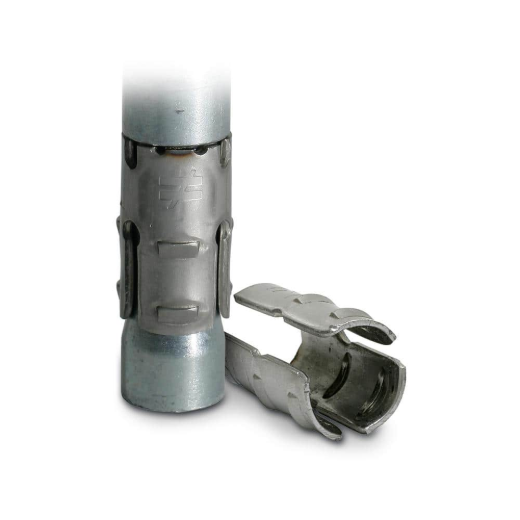

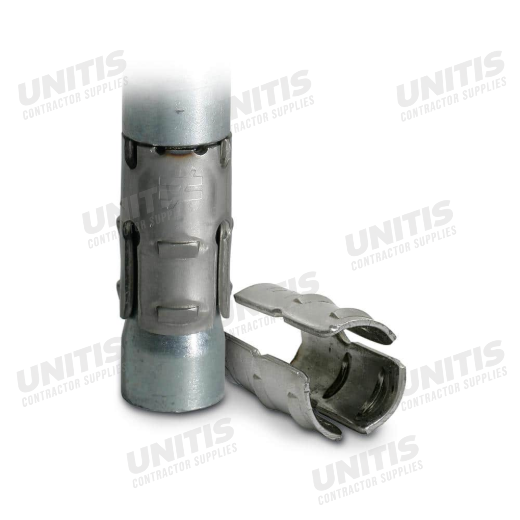

  • Dual undercutting embossments for enhanced load capacity in cracked conditions.

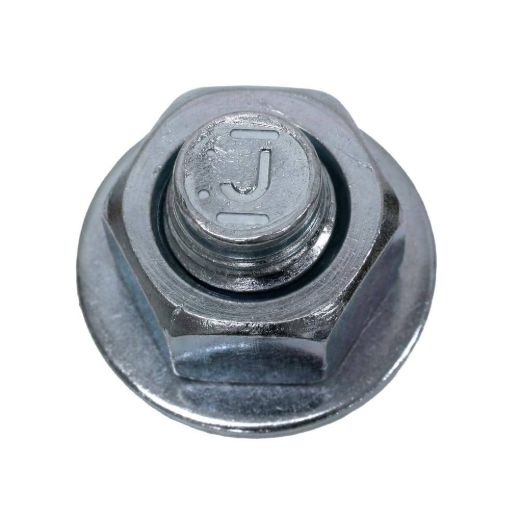

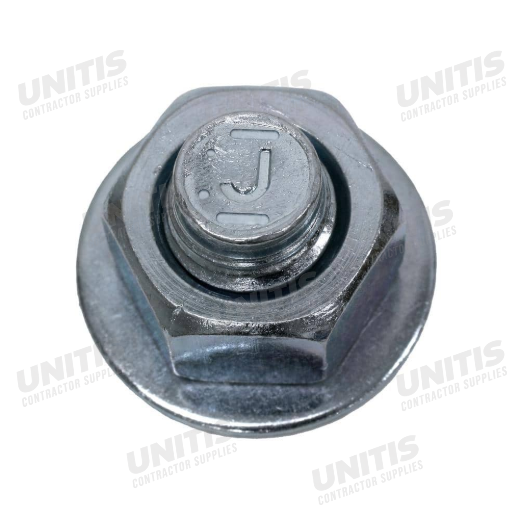

  • Chamfered top prevents mushrooming during installation.

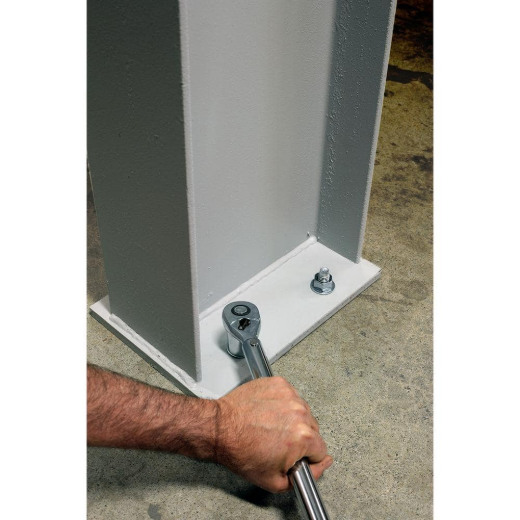

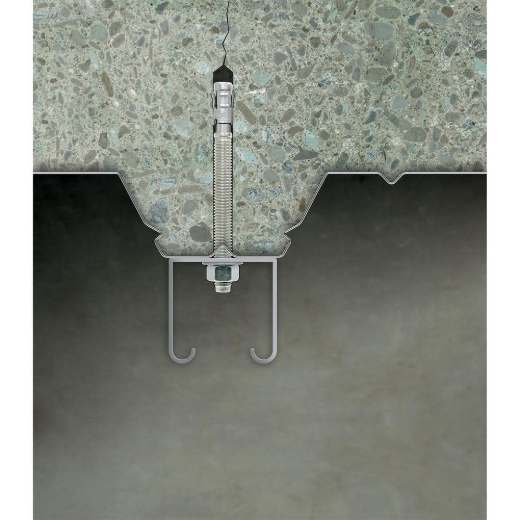

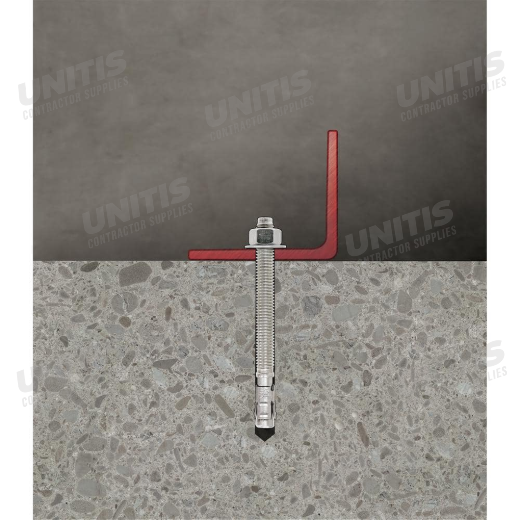

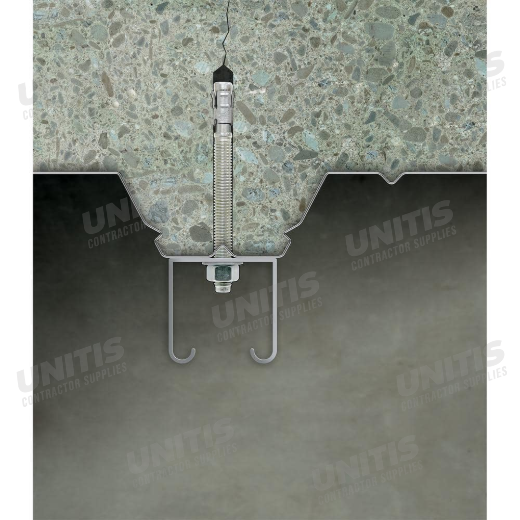

  • Suitable for horizontal, vertical, and overhead applications.
  • Tested per ACI355.2 and AC193.

Includes

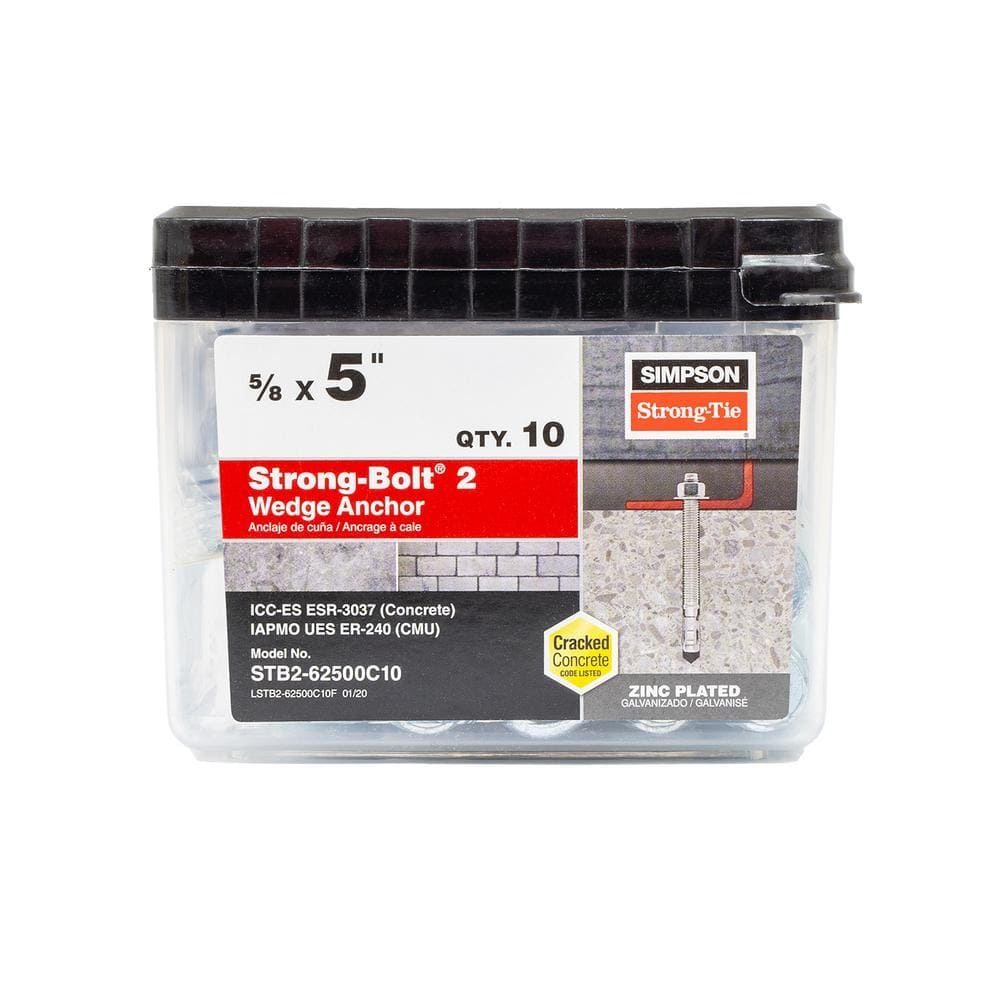

  • 10 x 5/8 inch x 5 inch Strong-Bolt 2 Wedge Anchors (pack size may vary)
Products specifications
Diameter 5/8 inch
Length 5 inch
Material Carbon Steel
Finish Zinc Plated
Drill Size 5/8 inch
Wrench Size 15/16 inch
Thread Length 2-5/16 inch
Min. Embedment Depth 3-3/8 inch
Min. Concrete Thickness 3-1/4 inch
Tensile Strength 115000 psi
Shear Strength 2615 to 6300 lb
*
*
*
