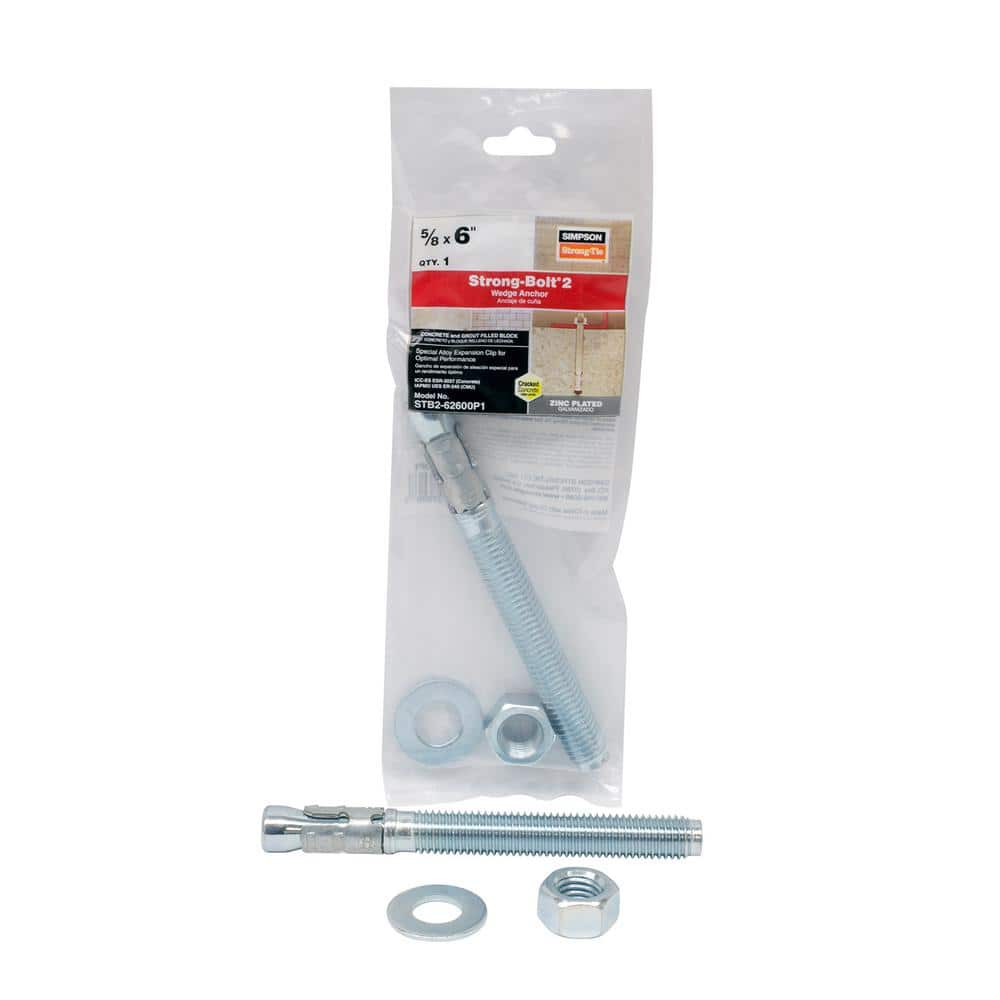

Simpson STB2 - 5/8" x 6" Strong-Bolt 2 Wedge Anchor - 1/poly

Mfr.: Simpson Strong-Tie
Item #: I093913
Mfr. #: STB2-62600P1
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $5.20
i h h

Description

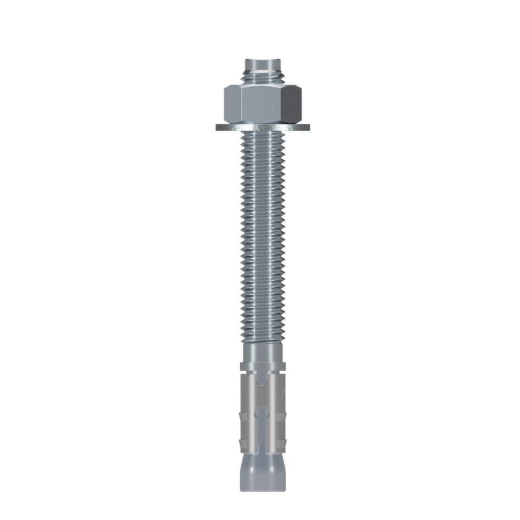

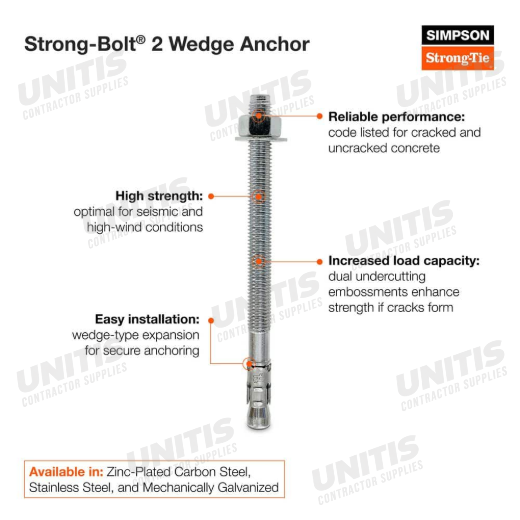

The Simpson Strong-Tie STB2-62600P1 is a high-performance, zinc-plated wedge-type expansion anchor engineered for demanding applications in both cracked and uncracked concrete. It is an optimal choice for projects in seismic and high-wind environments due to its robust design, ensuring safety and reliability. This anchor is suitable for a variety of applications, including residential and commercial projects, and offers greater load-bearing capacity even if the surrounding materials shift.
  • Zinc-plated carbon steel
  • Wedge-type expansion anchor

Features

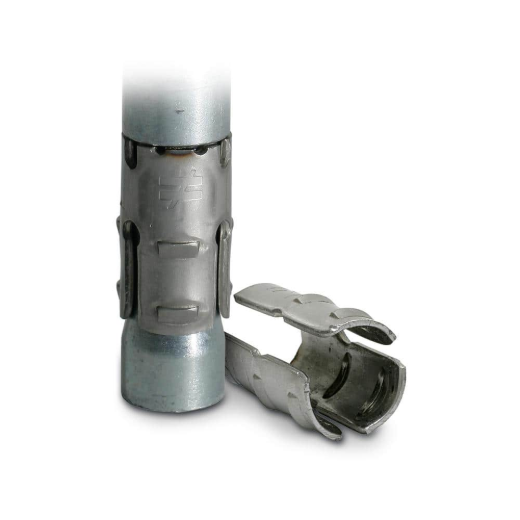

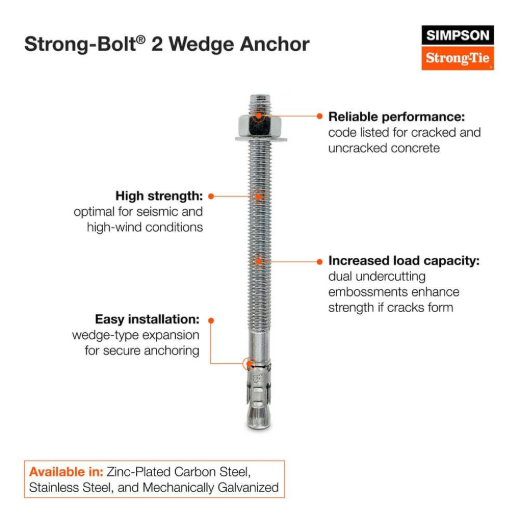

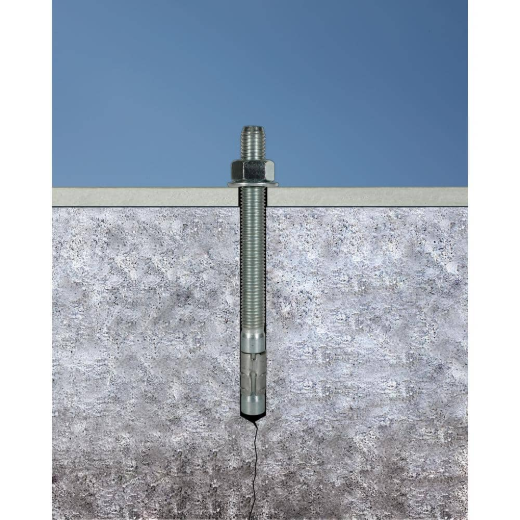

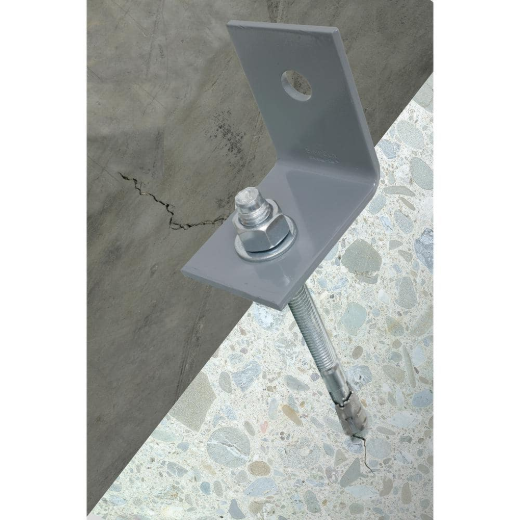

  • Dual undercutting embossments on clip segments enable secondary expansion if a crack intersects the anchor location, increasing load-carrying ability.

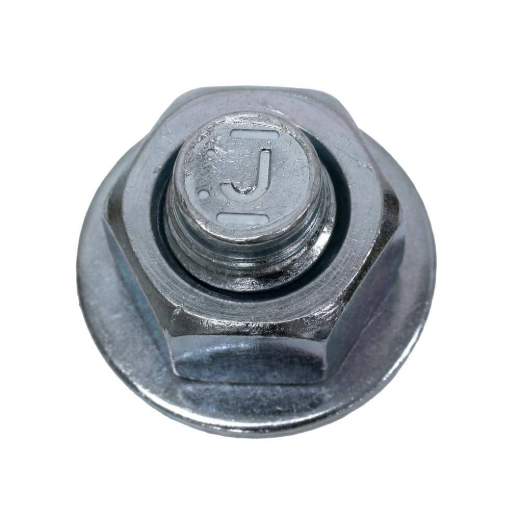

  • Chamfered top designed to prevent mushrooming during installation.
  • Qualified for static and seismic loading conditions (seismic design categories A through F).

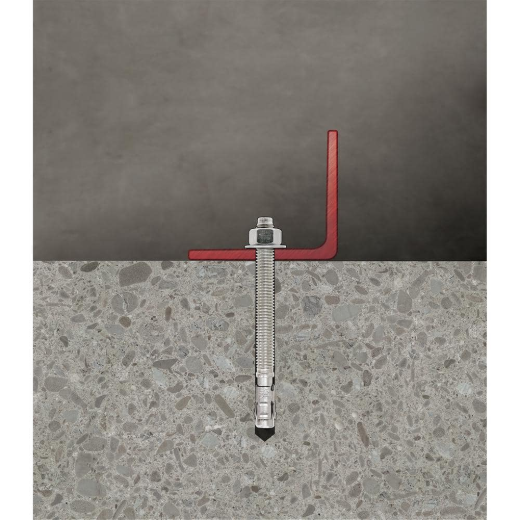

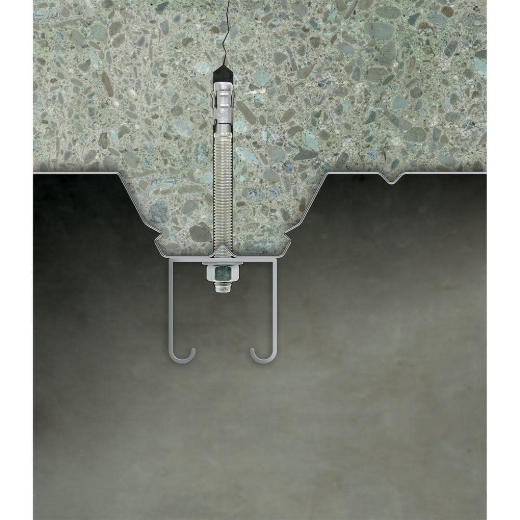

  • Suitable for horizontal, vertical, and overhead applications.
  • Standard (ANSI) fractional sizes fit common fixtures and install with standard drill bits and tool sizes.

Includes

  • 1x Strong-Bolt 2 Wedge Anchor
Products specifications
Anchor Diameter 5/8 in
Anchor Type Wedge Anchor
Code Listing ICC-ES ESR-3037; Body per ASTM A510
Country of Origin Varies (subject to change)
Finish / Coating Zinc Plated
Material Carbon Steel
Overall Length 6 in
Pack Quantity 1 per box
*
*
*
