Simpson Strong-Bolt2 1/2 X 3-3/4 Inch Wedge Anchor

Mfr.: Simpson Strong-Tie
Item #: I093849
Mfr. #: STB2-50334P1
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.75
i h h

Description

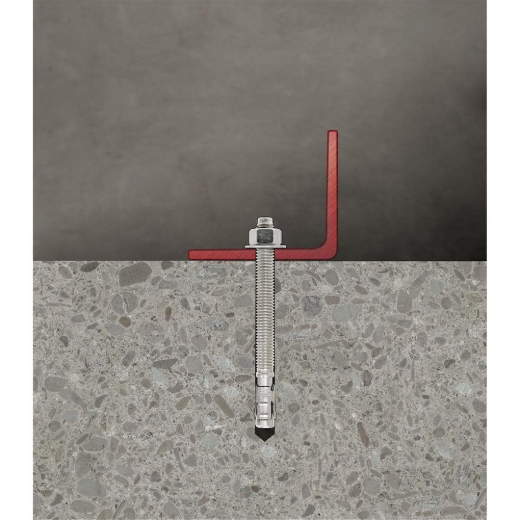

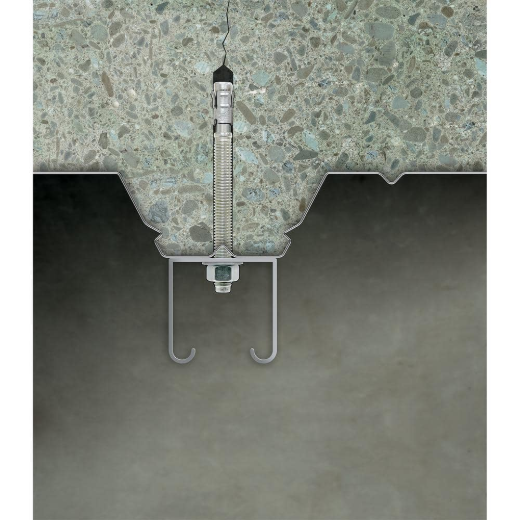

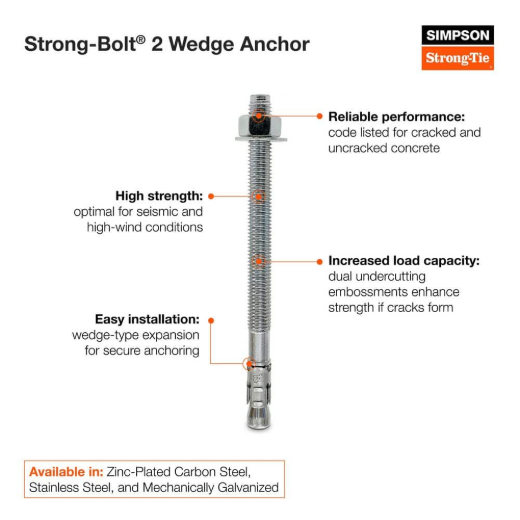

The Simpson Strong-Tie STB2-50334P1 is a high-performance wedge-type expansion anchor engineered for superior performance in both cracked and uncracked concrete. It is an optimal choice for various applications, including seismic and high-wind conditions, ensuring the safety and stability of your construction projects. Its innovative design makes it suitable for horizontal, vertical, and overhead installations.

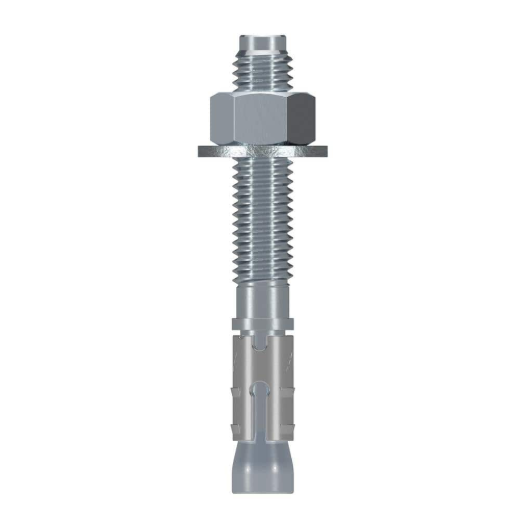

  • Wedge-type expansion anchor

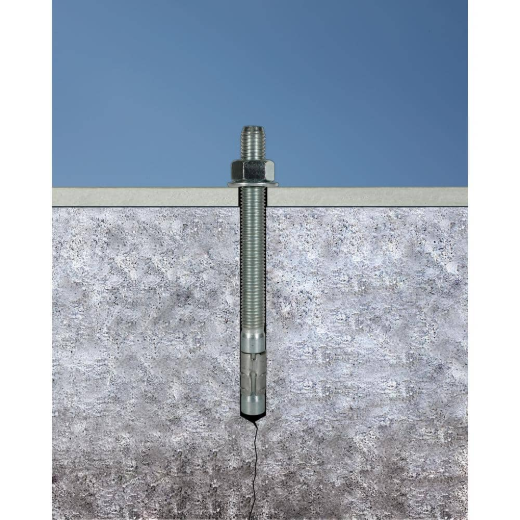

  • Suitable for cracked and uncracked concrete

Features

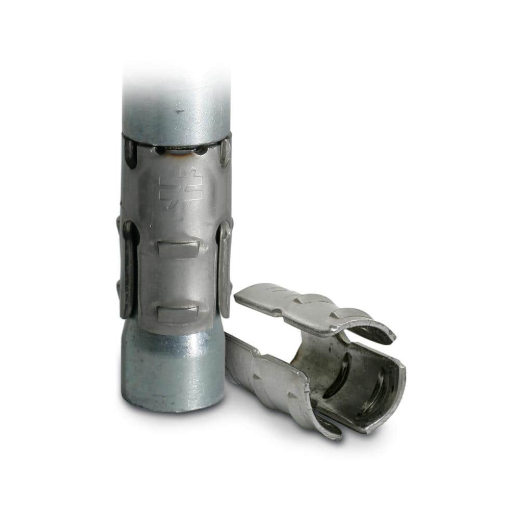

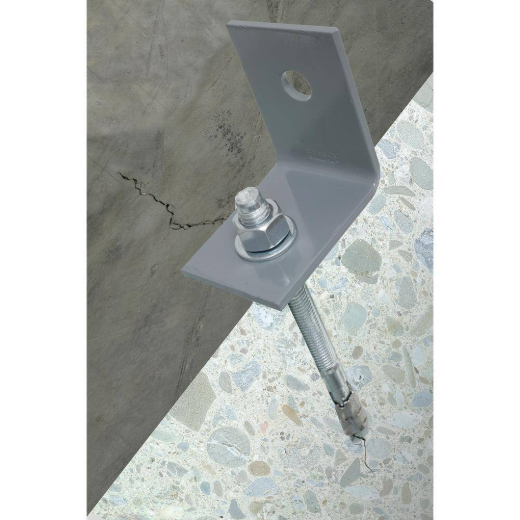

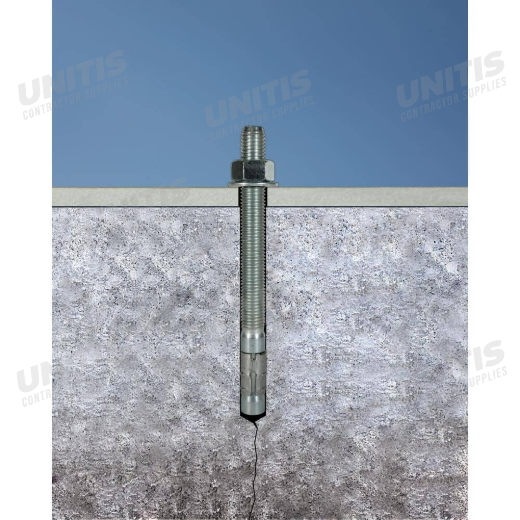

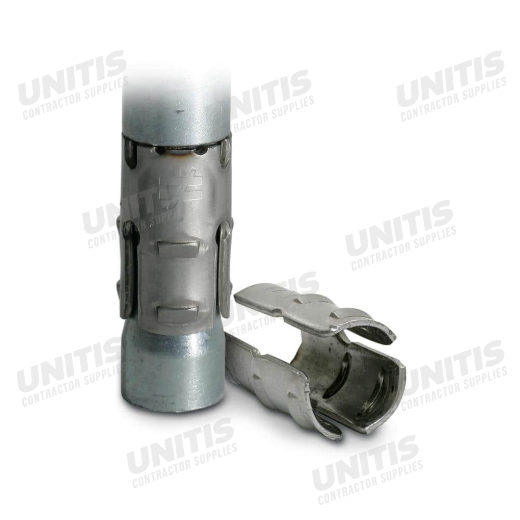

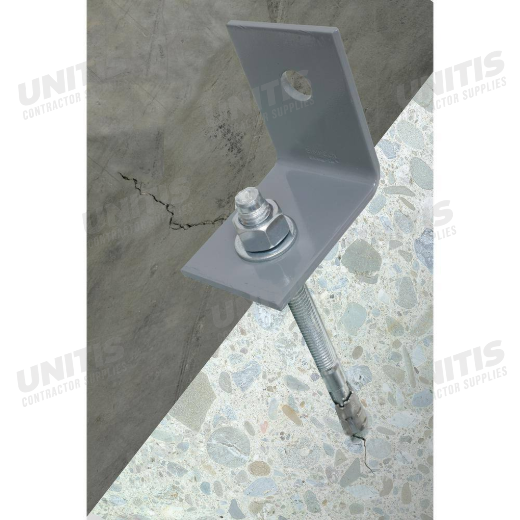

  • Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location.
  • Qualified for static and seismic loading conditions (seismic design categories A through F).

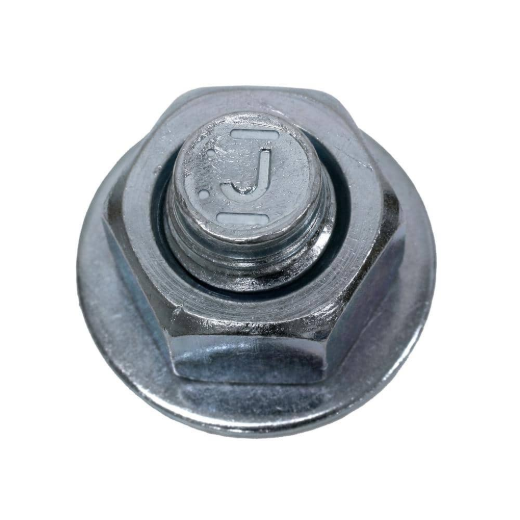

  • Chamfered top designed to prevent mushrooming during installation.
  • Tested per ACI355.2 and AC193.

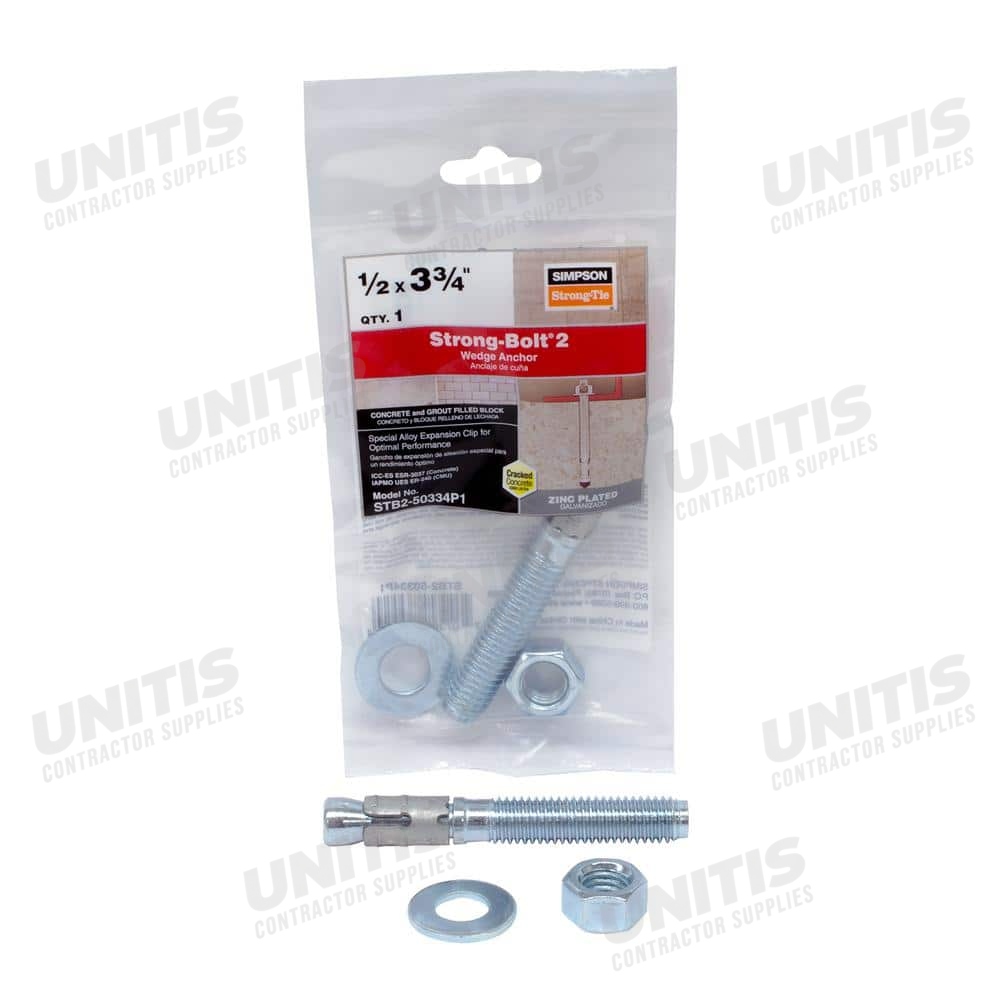

Includes

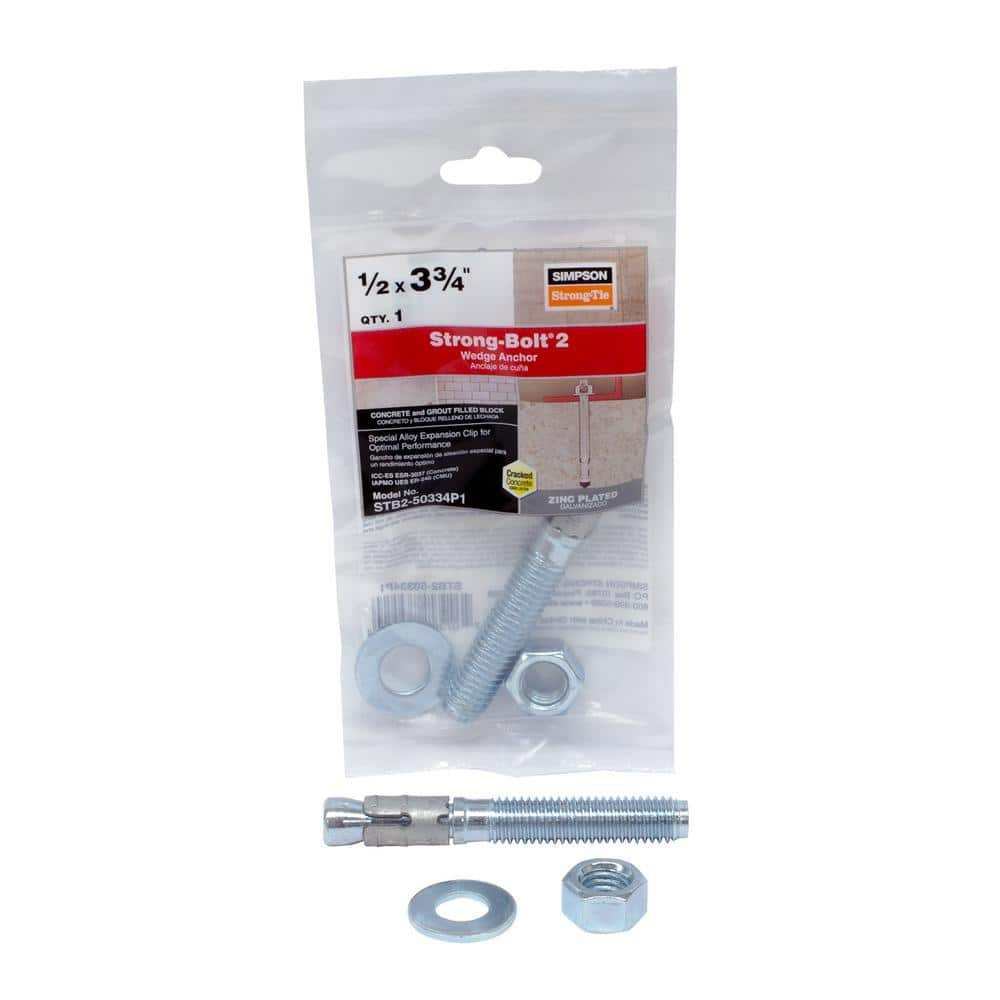

  • 1 Strong-Bolt 2 Wedge Anchor

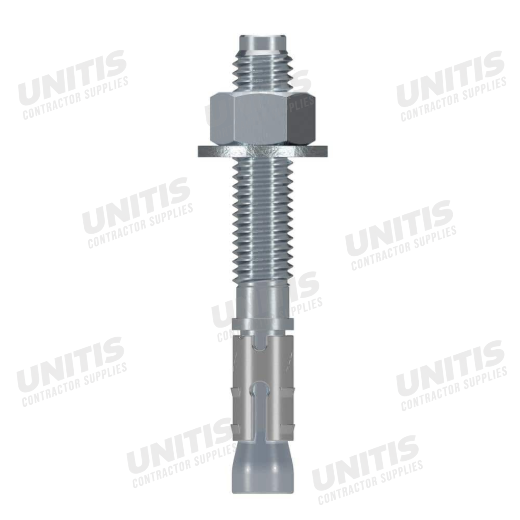

Products specifications
Diameter 1/2 inch
Length 3-3/4 inch
Material Carbon Steel
Finish Zinc Plated
Drill bit size 1/2 inch

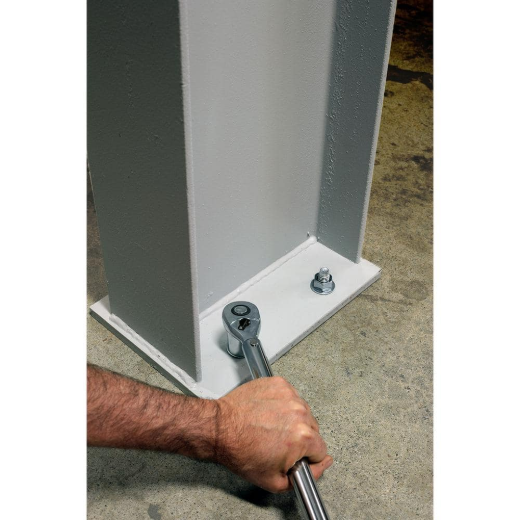

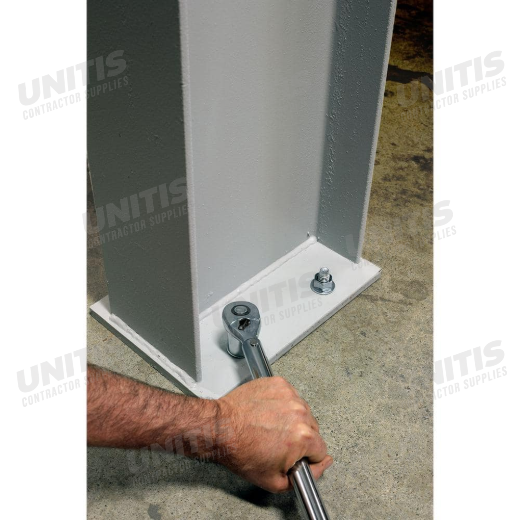

Installation torque 60 ft. lbs

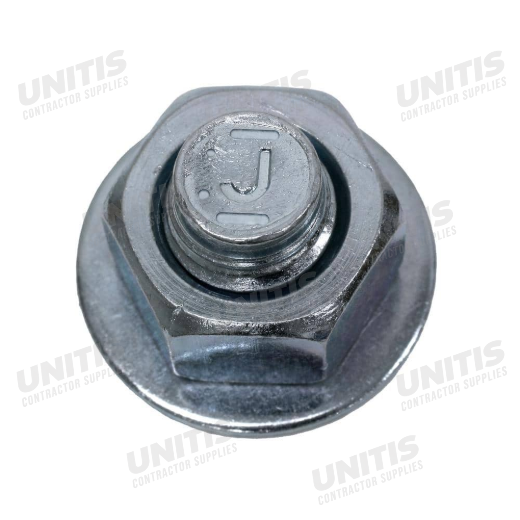

Head Type Chamfered
Type Wedge Anchor
*
*
*
