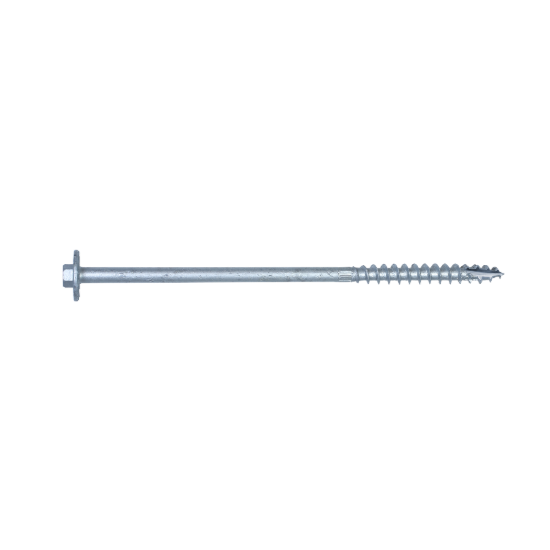

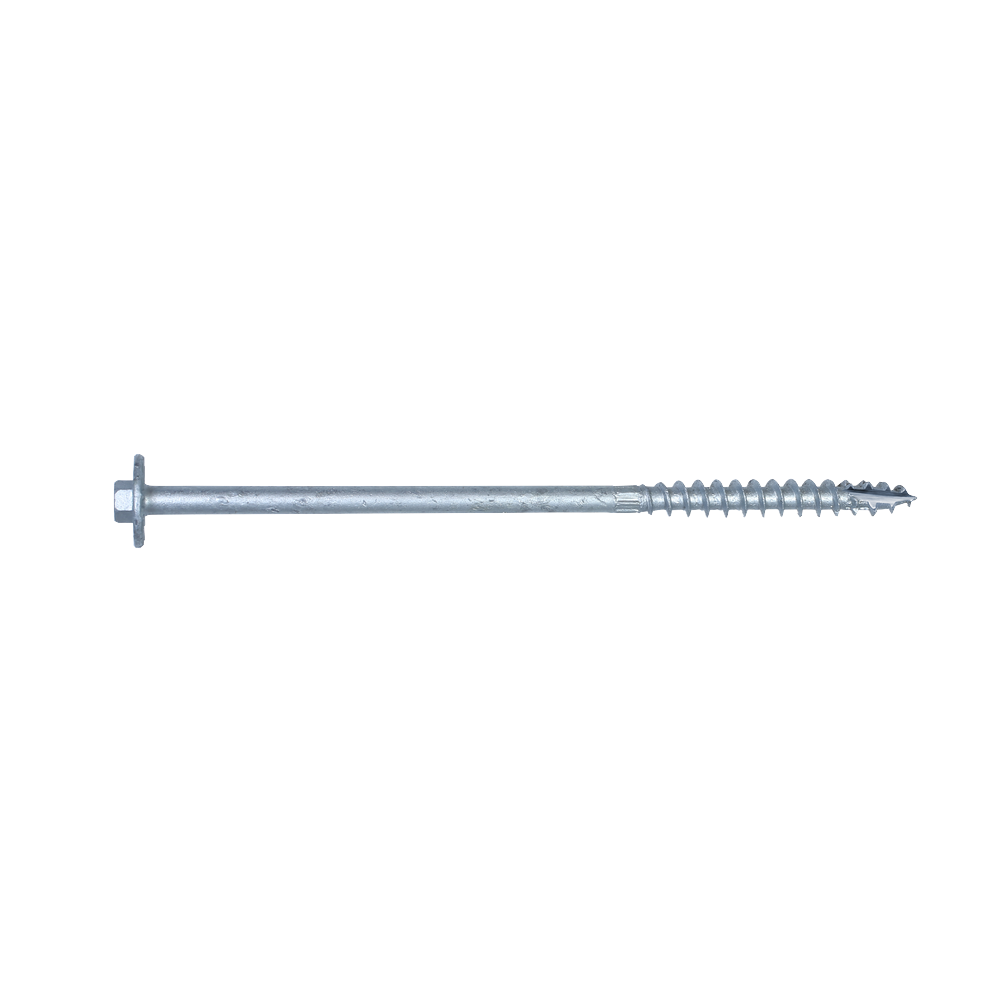

Simpson Strong-Drive SDWH Timber-Hex HDG Screw - 0.276" x 8" 3/8 Hex - 30/box

Mfr.: Simpson Strong-Tie
Item #: I100491
Mfr. #: SDWH27800GR30
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $164.59
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Strong-Drive SDWH Timber-Hex HDG screw is a hot-dip galvanized fastener suitable for heavy-duty marine and coastal applications. It's ideal for use in structural pilings, piers, docks, boardwalks and offers the lowest installed cost for comparable pile solutions on the market. No longer do you need to purchase expensive auger drill bits, separate washers, nuts or bolts. Installation time is faster because you install only from one side and no predrilling is required.
  • Features a SawTooth point design, which provides fast starts and no predrilling or separate washer needed
  • Burly 0.276-in. shank diameter ideally suited for heavy-duty structural applications
  • 3/8-in. hex drive for secure driving (replacement driver bit - BITHEXR38-134)
  • Oversized 0.93-in. integral washer eliminates the need for a separate washer
  • Length: 8 in.
  • ASTM A153 Class-C hot-dip galvanized coating suitable for coastal and marine environments

Features

  • Features a SawTooth point design, which provides fast starts and no predrilling or separate washer needed
  • Burly 0.276-in. shank diameter ideally suited for heavy-duty structural applications
  • 3/8-in. hex drive for secure driving (replacement driver bit - BITHEXR38-134)
  • Oversized 0.93-in. integral washer eliminates the need for a separate washer
  • Length: 8 in.
  • ASTM A153 Class-C hot-dip galvanized coating suitable for coastal and marine environments

Specifications


Shank Diameter0.276 inchDrive Size3/8 inch hex
Washer Diameter0.93 inchLength8 inch
CoatingASTM A153 Class-C hot-dip galvanized
*
*
*
