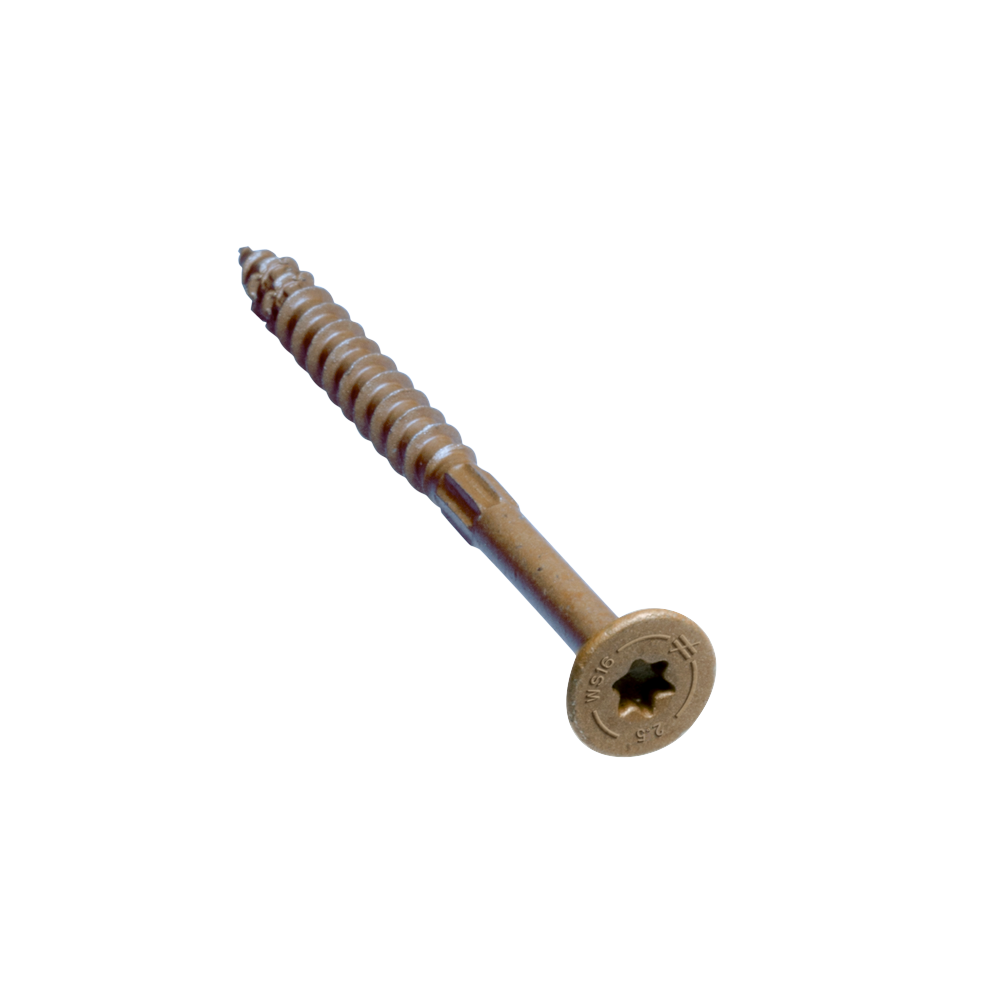

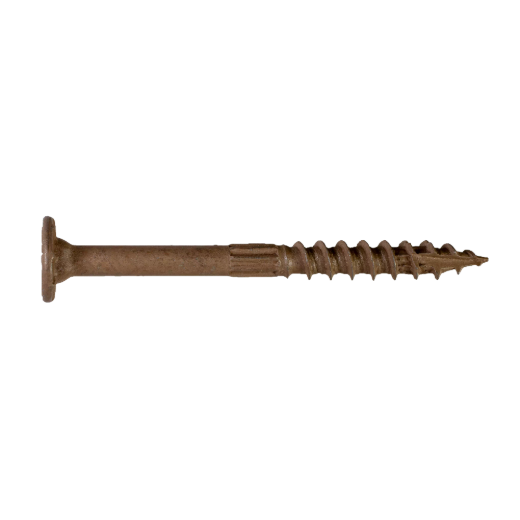

Simpson Strong-Drive SDWS Framing Screw - 0.160" x 2-1/2" T25, Quik Guard, Tan - 250/box

Mfr.: Simpson Strong-Tie
Item #: I100492
Mfr. #: SDWS16212QMB
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $127.89
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC and IBC code requirements for several common wood framing applications.
  • Large head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.450-in. head dia.)
  • SawTooth Type-17 tip for quick starts with no predrilling
  • Serrated threads reduce installation torque for easier driving
  • The 6-lobe drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
  • Driver bit included (BIT25T-2-R2)
  • Length: 2-1/2 in.

Features

  • Large head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.450-in. head dia.)
  • SawTooth Type-17 tip for quick starts with no predrilling
  • Serrated threads reduce installation torque for easier driving
  • The 6-lobe drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
  • Driver bit included (BIT25T-2-R2)
  • Length: 2-1/2 in.

Includes

  • Driver bit (BIT25T-2-R2)

Specifications


Diameter0.160 inchHead Diameter0.450 inch
Length2-1/2 inchDrive Type6-lobe
Tip TypeSawTooth Type-17Thread TypeSerrated
Code ListingIAPMO UES ER-192Code Compliance2018 and 2021 IRC and IBC
*
*
*
