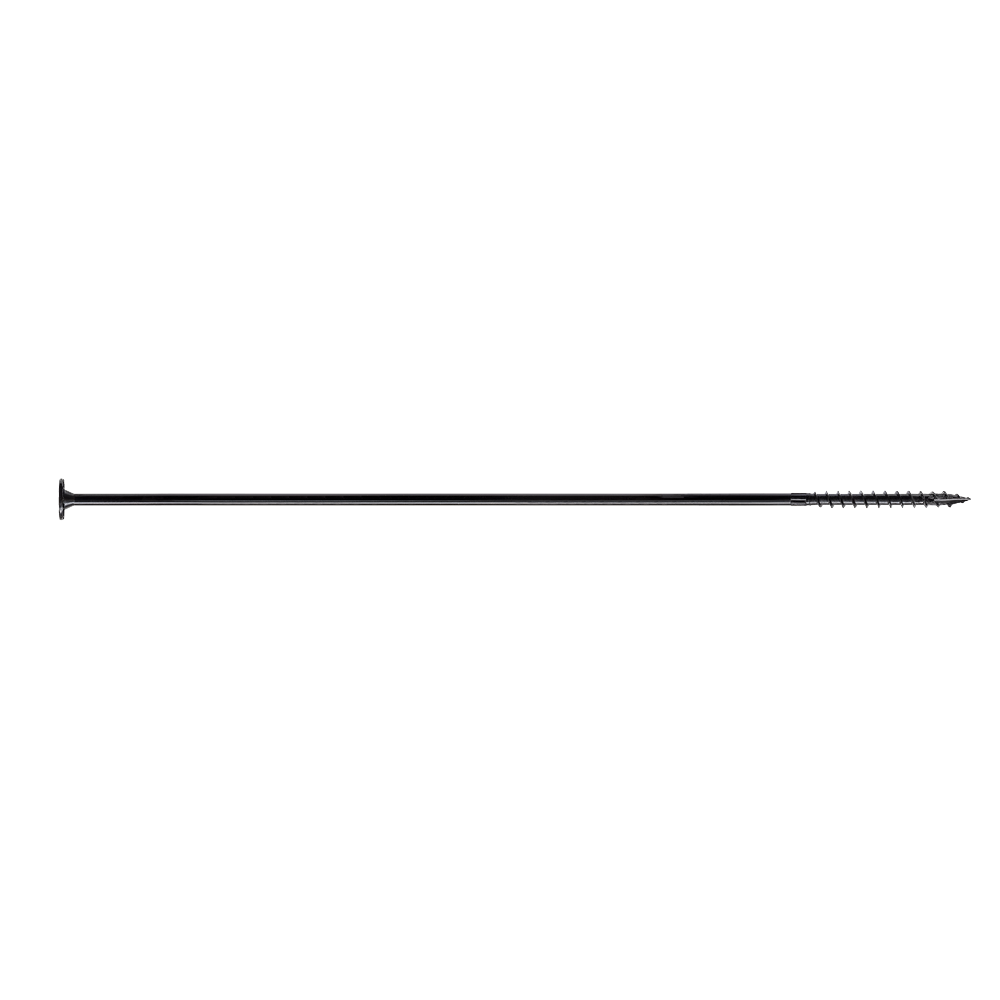

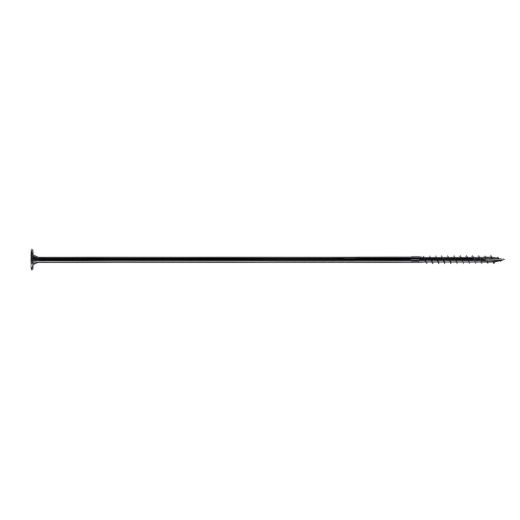

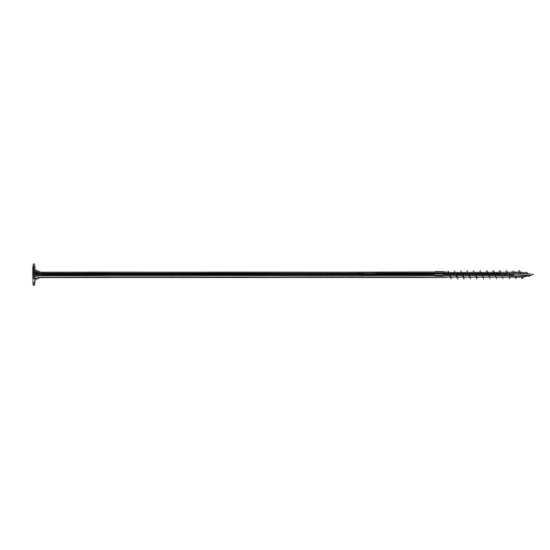

Simpson Strong-Drive SDWS Timber Screw (Interior) - 0.220" x 15" E-coat - 200/box

Mfr.: Simpson Strong-Tie
Item #: I100511
Mfr. #: SDWS221500
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $702.24
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Strong-Drive SDWS Timber screw is a structural wood screw available in a variety of lengths and is designed for cross-laminated timber construction, mass timber construction and general interior applications. These 0.195 in. and 0.220 in. diameter structural fasteners require less torque to install than comparable fasteners. The large diameter washer head pulls members down easily, eliminating the need to use extra washers. It is code listed under IAPMO-UES ER-192 and meets IRC and IBC code requirements for several common wood framing applications.
  • SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
  • Low-profile head design makes countersinking easy
  • Serrated thread reduces splitting and damage
  • Large washer head with nibs provides maximum bearing area
  • T40, 6-lobe drive provides positive engagement that makes the screw easy to drive (driver bit included)
  • Size identification on all Simpson Strong-Tie screws

Features

  • SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
  • Low-profile head design makes countersinking easy
  • Serrated thread reduces splitting and damage
  • Large washer head with nibs provides maximum bearing area
  • T40, 6-lobe drive provides positive engagement that makes the screw easy to drive (driver bit included)
  • Size identification on all Simpson Strong-Tie screws

Includes

  • Driver bit (T40, 6-lobe)

Specifications


Diameter0.195 inch and 0.220 inchCode ListingIAPMO-UES ER-192
Code ComplianceIRC and IBC
*
*
*
