Simpson PDPA .157" x 5/8" Powder-Actuated Knurled Drive Pin - 100/box

Mfr.: Simpson Strong-Tie
Item #: I093446
Mfr. #: PDPA-62K
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $9.86
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

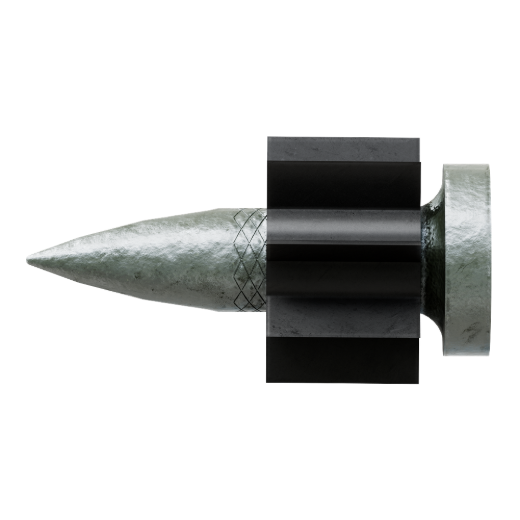

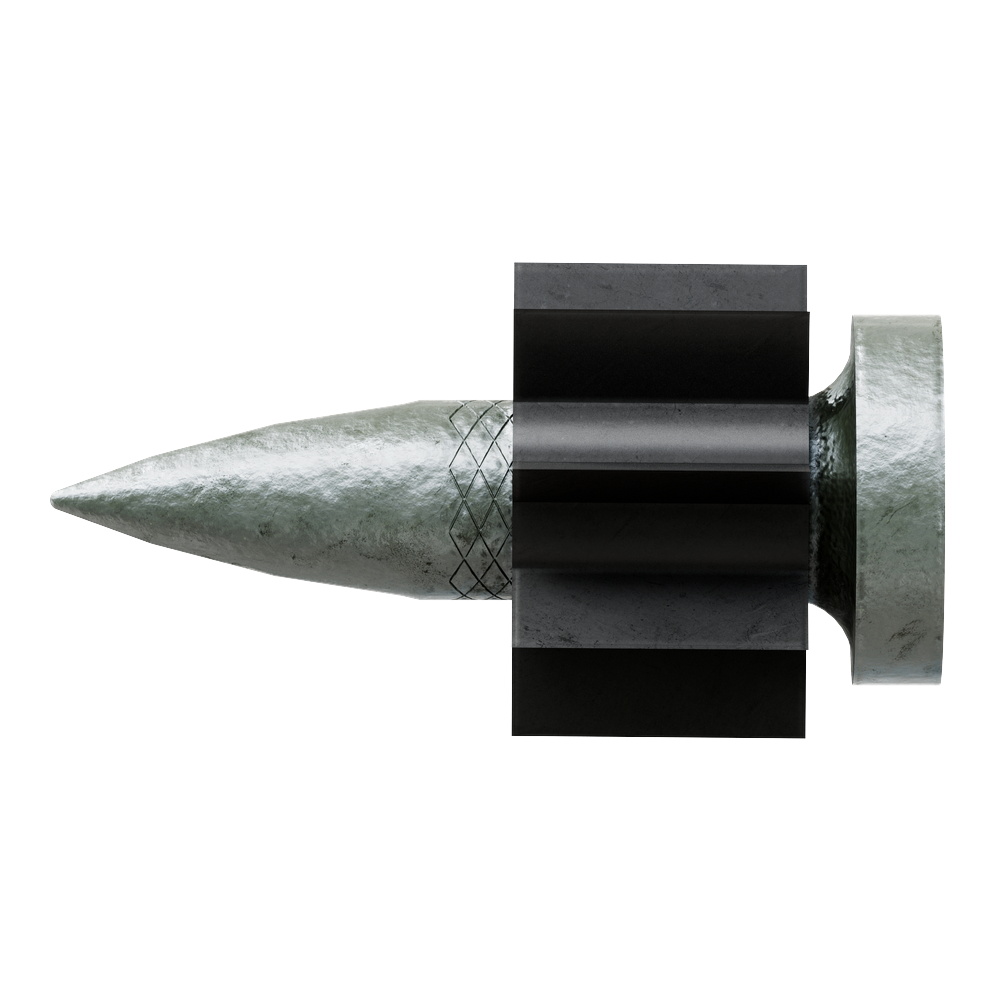

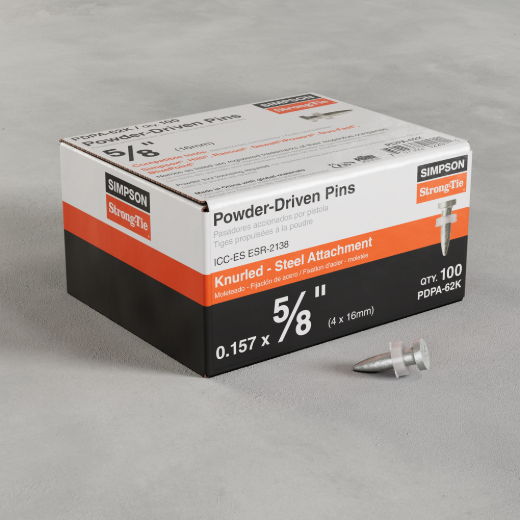

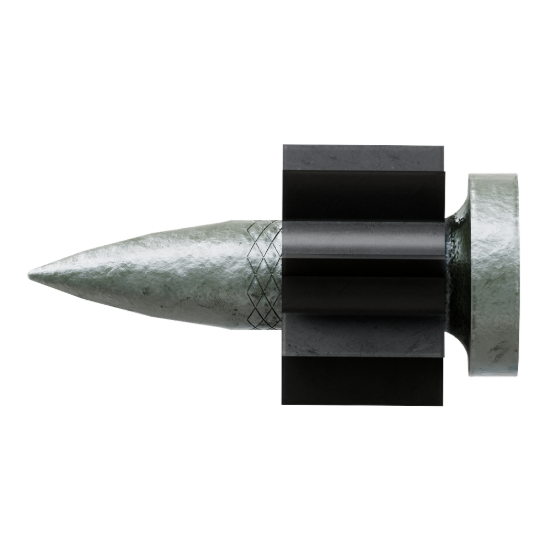

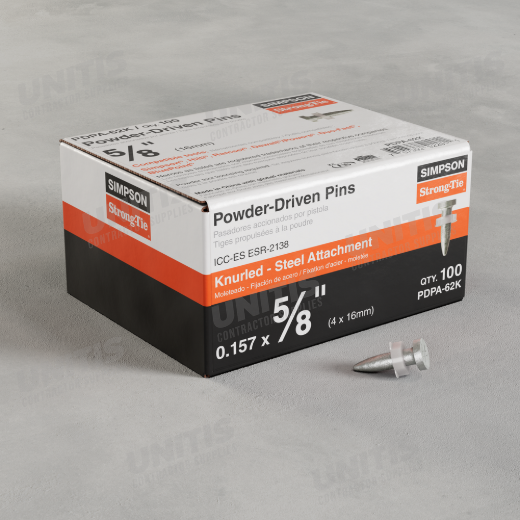

The PDPA is a hardened-steel, powder-actuated fastener designed to fasten building components to concrete, steel and CMU. The PDPA consists of a fastener with a 0.300-in. diameter head and a 0.157-in. diameter shank. The PDPA provides maximum jobsite productivity with fast installation.
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
  • Designed for use with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
  • Knurled shank
  • For A36 and A572 Grade 50 structural steel

Features

  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
  • Designed for use with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
  • 0.300-in. head diameter / 0.157-in. shank diameter
  • Knurled shank
  • For A36 and A572 Grade 50 structural steel

Specifications


Head Diameter0.300 inShank Diameter0.157 in
MaterialHardened steelApplicable Steel GradesA36, A572 Grade 50
Products specifications
Anchor Diameter 157 in
Anchor Length 157 in
Application Steel-to-Concrete (Knurled Shank, Dense Concrete)
Code Listing ICC-ES ESR-2138
Country of Origin Varies (subject to change)
Head Style Knurled Pin
Pieces per Pack 100 per box
Washer Included No
*
*
*
