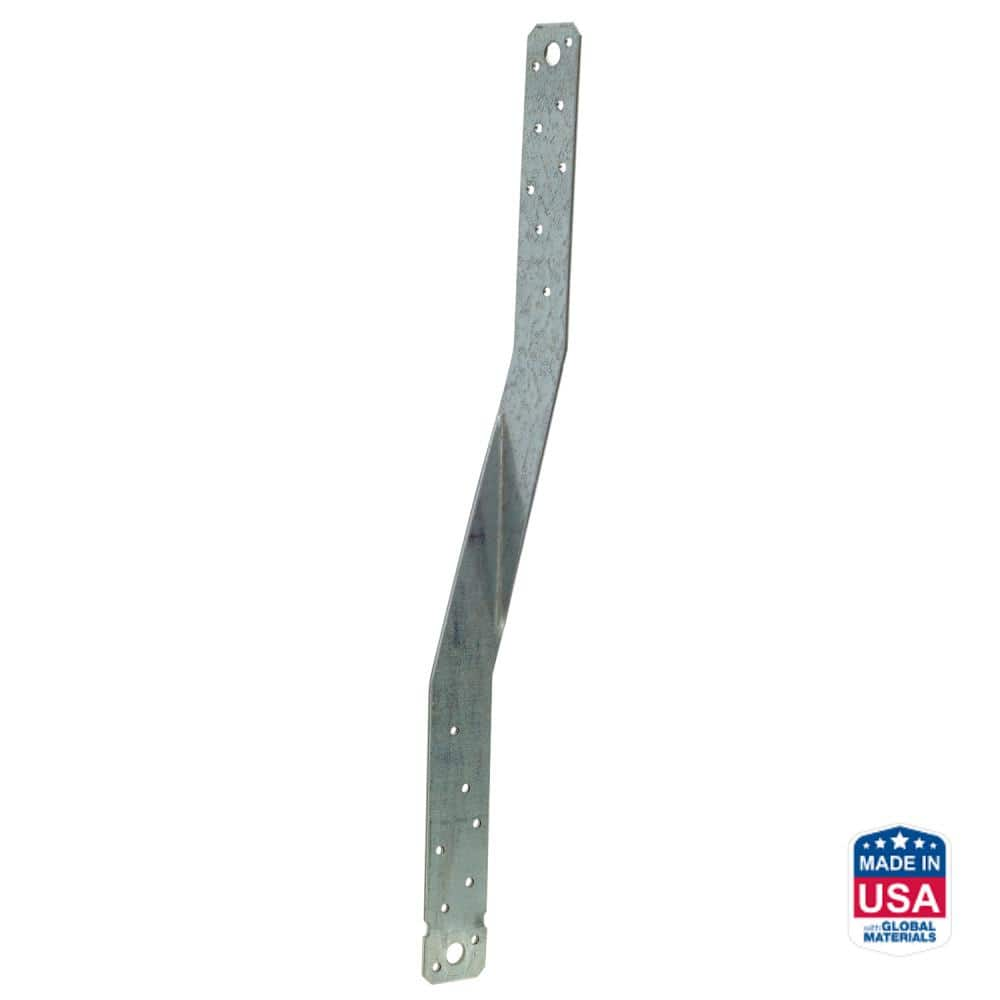

Simpson Strong-Tie 16-Inch Heavy Twist Strap

Mfr.: Simpson Strong-Tie
Item #: I090753
Mfr. #: HTS16
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.55
i h h

Description

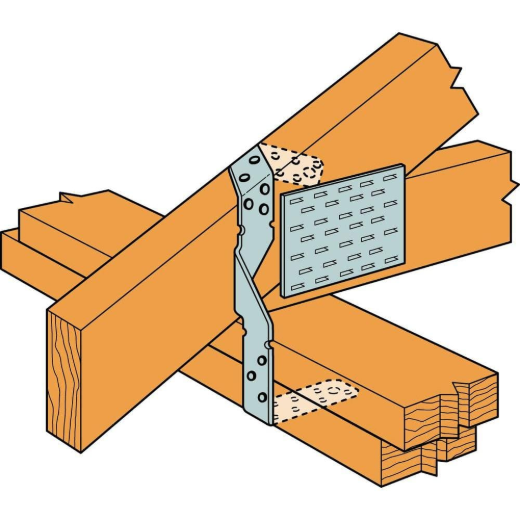

The Simpson Strong-Tie HTS16 is a high-performance heavy twist strap designed to provide a secure tension connection between two wood members. It is specifically engineered to resist heavy uplift loads at the rafter or heel of a truss, providing an economical solution for structural reinforcement. This strap features a specialized bend section that eliminates interference at the transition points, ensuring a flush and efficient installation.
  • High-strength 14-gauge steel construction
  • G90 galvanized finish for corrosion resistance

Features

  • Features a 3-3/4 inch bend section to reduce interference between members.
  • Designed to achieve allowable loads without needing to be wrapped over the truss.
  • Versatile design suitable for a wide range of wood-to-wood tension applications.
  • Available in a reverse-bend configuration (HTS16-REV) for specific framing needs.

Includes

  • (1) 16 inch Heavy Twist Strap
Products specifications
Model No. HTS16
Material 14-Gauge Steel
Finish Galvanized (G90)
Length 16 inches
Width 1-1/4 inches
Fastener Type 10d or 10d x 1-1/2 inch Nails
Fastener Quantity 16
Bend Section 3-3/4 inches
*
*
*
