Simpson Strong-Tie 20 In. 16-Gauge Zmax Galvanized Medium Twist Strap

Mfr.: Simpson Strong-Tie
Item #: I090841
Mfr. #: MTS20Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.40
i h h

Description

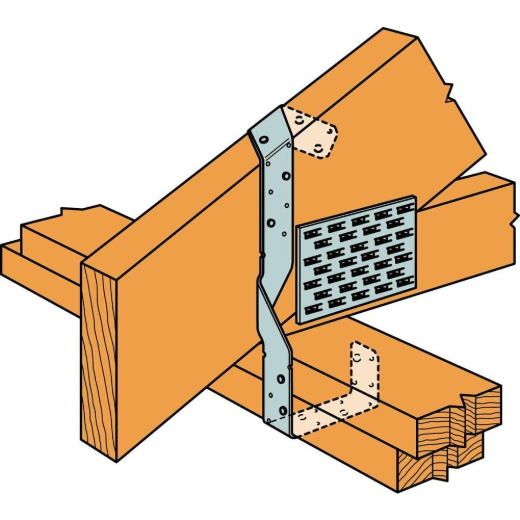

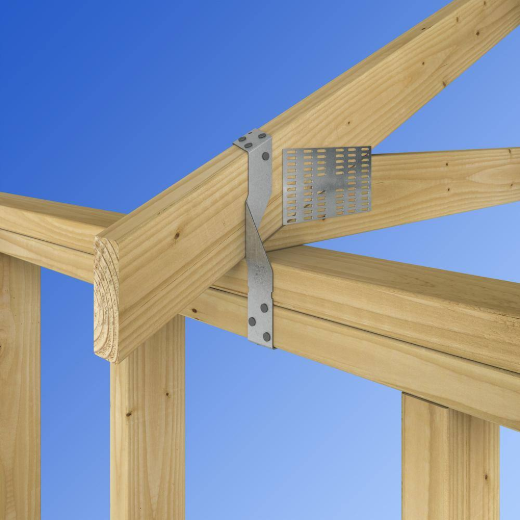

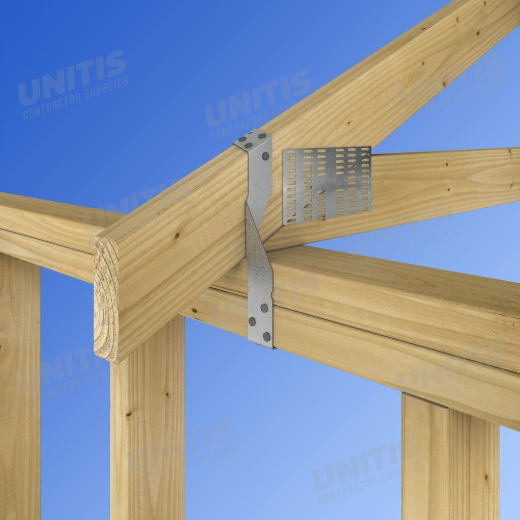

The Simpson Strong-Tie MTS20Z is an economical twist strap designed to provide a reliable tension connection between two wood members. Specifically engineered to resist moderate uplift loads at the heel or rafter of a truss, it features a 2-inch bend section to minimize interference at transition points. This 16-gauge steel strap is coated with a ZMAX galvanized finish, providing superior corrosion resistance for both interior and exterior applications.
  • 16-Gauge ZMAX Coated Steel
  • Economical Tension Connection

Features

  • Resists moderate uplift loads at the rafter or heel of a truss.
  • Features a 2-inch bend section that eliminates interference at the transition points.
  • G185 ZMAX galvanized finish provides added corrosion resistance for treated lumber.
  • The strap does not need to be wrapped over the truss to achieve the allowable load.

Includes

  • (1) MTS20Z Medium Twist Strap
Products specifications
Model No. MTS20Z
Material 16-Gauge Steel
Finish ZMAX Galvanized
Length 20 inches
Thickness 54 mil
Bend Section 2 inches
Weight 0.4 lbs
Fasteners Required 10d Nails or #9 SD Screws
*
*
*
