  • Simpson Strong-Tie 20-Inch Heavy Twist Strap

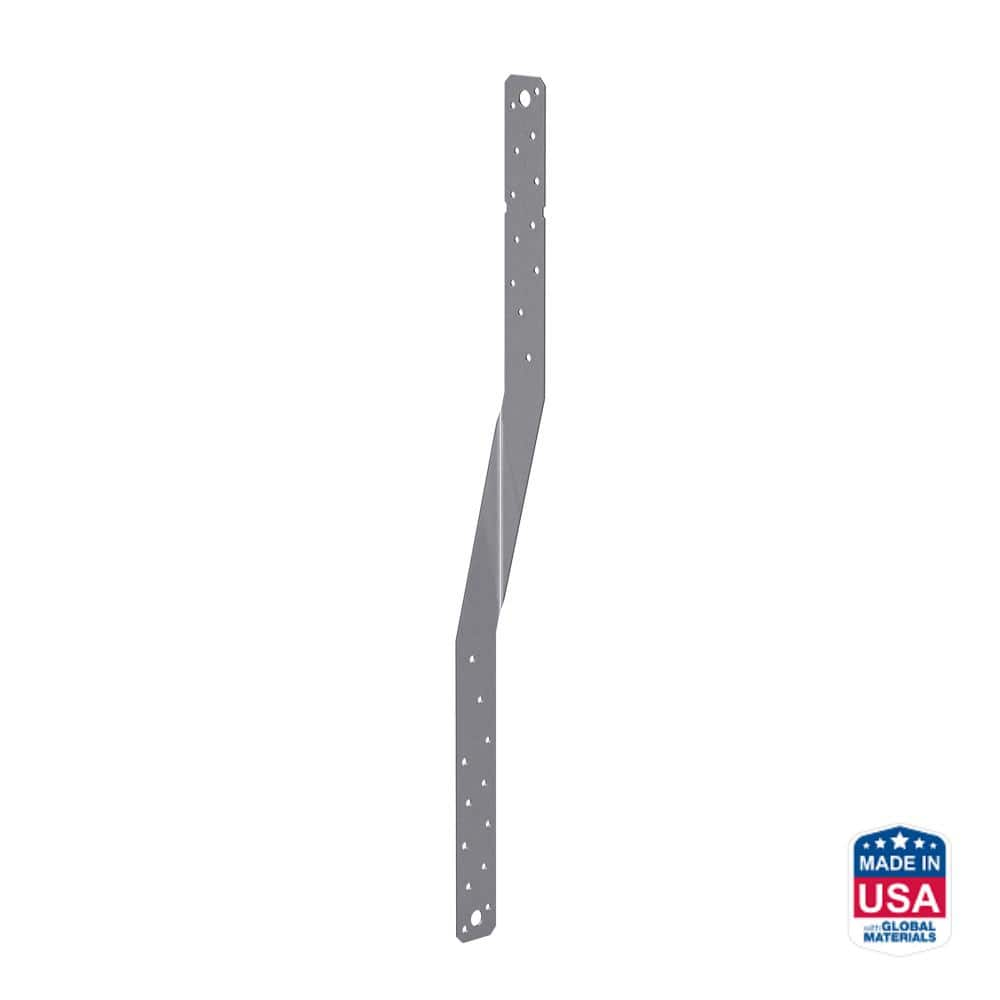

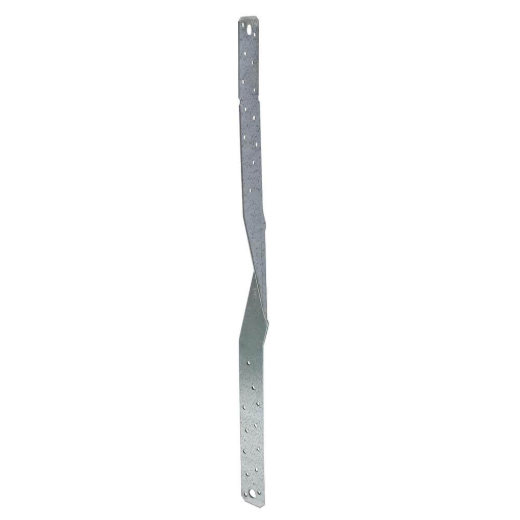

Simpson Strong-Tie 20-Inch Heavy Twist Strap

Mfr.: Simpson Strong-Tie
Item #: I090755
Mfr. #: HTS20
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.13
i h h

Description

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. The HTS20 provides a reliable tension connection between two members, specifically designed to resist heavy uplift loads at the rafter or heel of a truss. This economical strap features a small bend section that minimizes interference at transition points, ensuring a cleaner installation in structural wood framing.
  • High uplift resistance at truss heels
  • G90 galvanized coating for corrosion protection
  • Pre-bent design for easier transition fit

Features

  • Does not require wrapping over the truss to achieve allowable loads.
  • Available with a reversed bend by specifying '-REV' after model number.
  • 3-3/4 inch bend section eliminates interference at member transitions.

Includes

  • (1) 20-Inch 14-Gauge Heavy Twist Strap
Products specifications
Model Number HTS20
Material 14-Gauge Steel
Finish G90 Galvanized
Length 20 inch
Width 1.445 inch
Fasteners Required 0.148 x 1.5 and 0.148 x 3 Nails
Weight 0.5 lbs
UPC 044315092503
*
*
*
