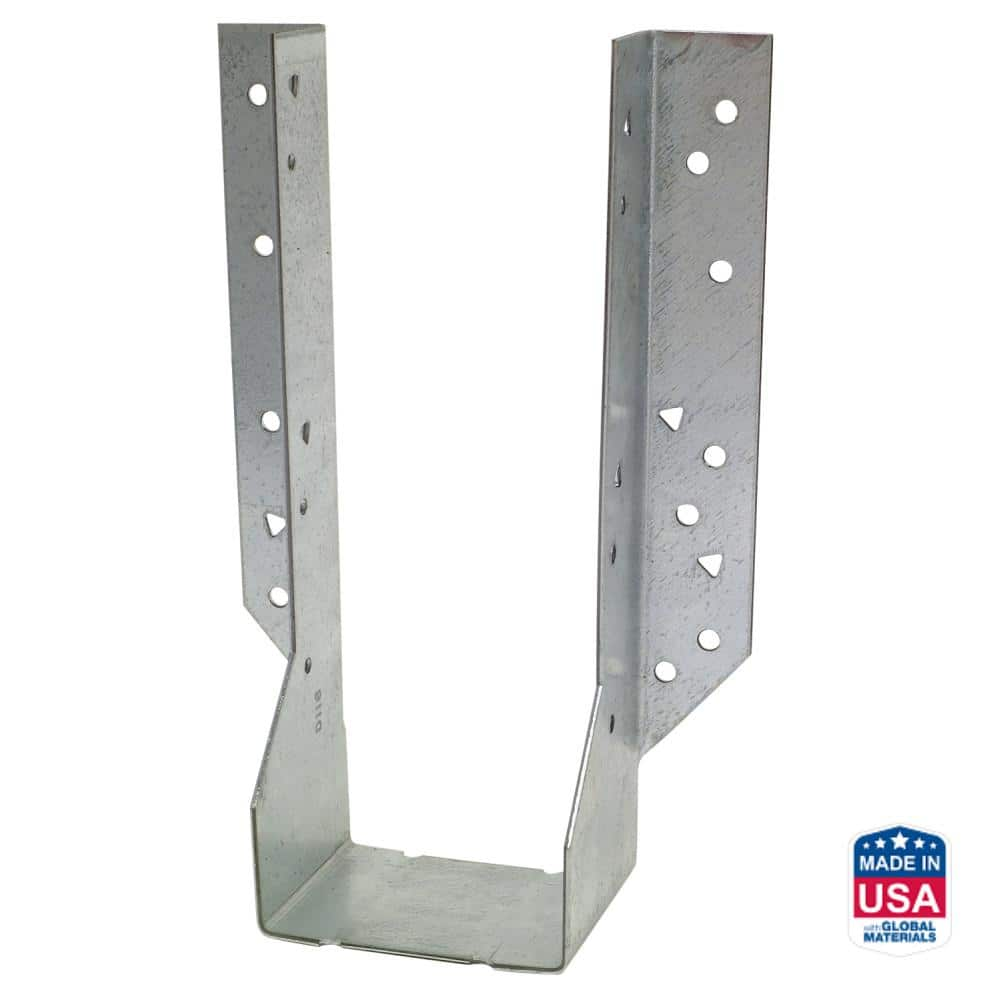

Simpson Strong-Tie 2x10 Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091447
Mfr. #: HU210
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $15.36
i h h

Description

The Simpson Strong-Tie HU210 is a heavy-duty face-mount joist hanger designed for structural applications that require high load capacity and increased safety factors. Engineered from durable 14-gauge steel, it provides a robust connection for 2x10 nominal lumber in high-stress environments such as decks, floor systems, and roof framing. This hanger is fully code-compliant and features a G90 galvanized finish for enhanced durability and long-term corrosion resistance.
  • Heavy-Duty 14-Gauge Steel
  • G90 Galvanized Finish

Features

  • Equipped with triangular holes that can be filled with additional fasteners to achieve maximum load values.
  • Tested, load-rated, and code-compliant (ICC-ES ESR-2552) for reliable structural performance.

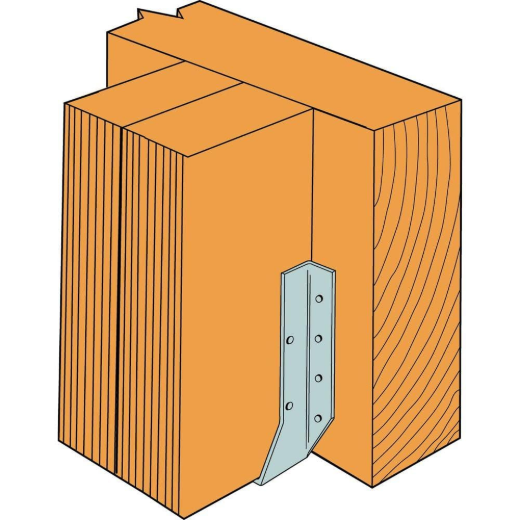

  • U-shaped design allows for flexible placement on headers and versatile wood-to-wood or masonry applications.

Includes

  • (1) HU210 Face-Mount Joist Hanger
Products specifications
Model Number HU210
Material 14-Gauge Carbon Steel
Finish G90 Galvanized
Nominal Joist Size 2x10
Hanger Width 1-9/16 inch
Hanger Height 7-1/8 inch
Base Dimension (B) 2-1/4 inch
Face Fasteners (8) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (4) 0.148 inch x 1-1/2 inch Nails
*
*
*
