  • Simpson Strong-Tie 3-1/2 inch X 24 in Top Flange I-Joist Hanger

Simpson Strong-Tie 3-1/2 inch X 24 in Top Flange I-Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091357
Mfr. #: HIT424
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $55.79
i h h

Description

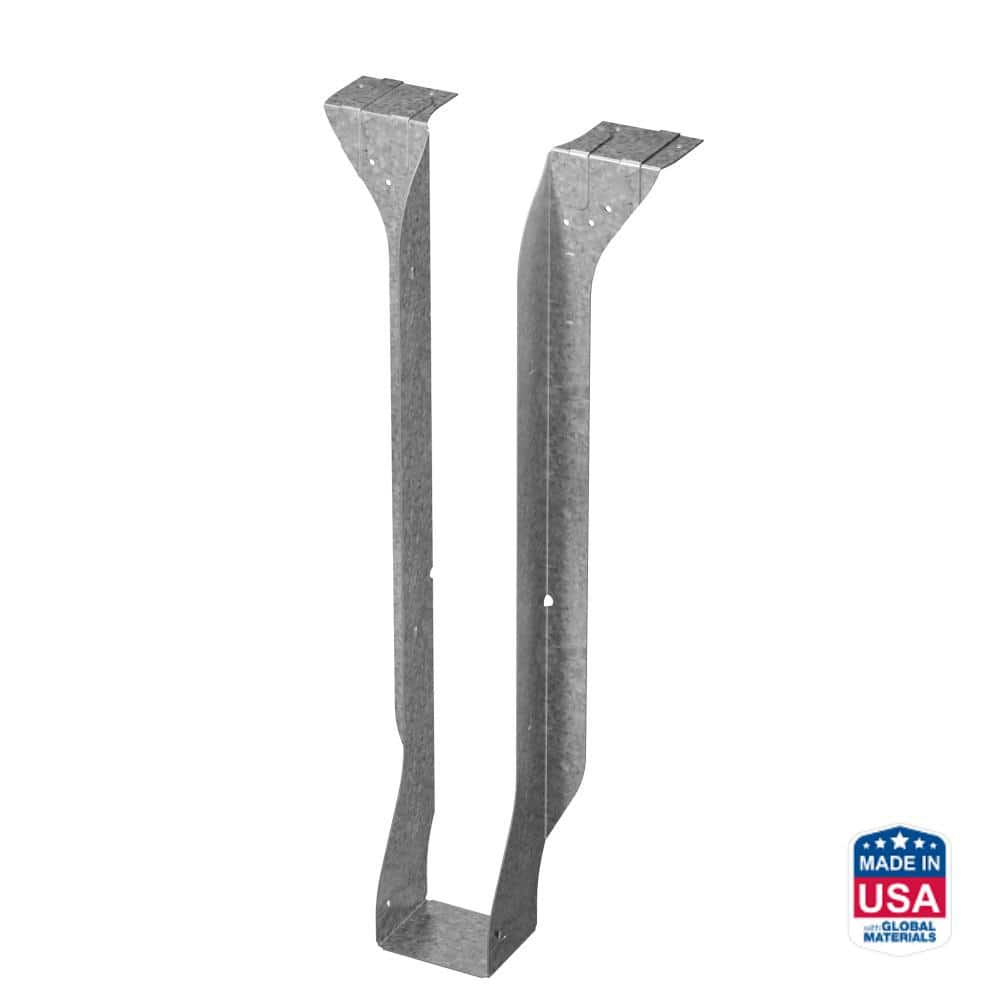

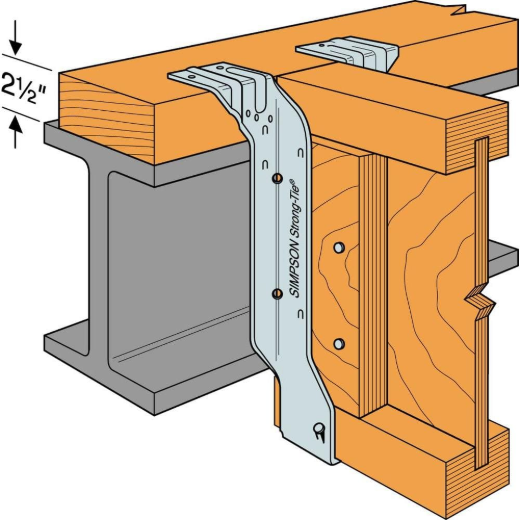

The Simpson Strong-Tie HIT424 is a heavy-duty top-flange hanger engineered for standard 90-degree connections of I-joists to headers. This high-capacity connector features positive-angle nailing (PAN) to minimize wood splitting while providing a secure, dependable fit. Its robust 16-gauge steel construction and G90 galvanized finish ensure long-lasting structural integrity in demanding framing applications. With extra triangle holes designed to accommodate higher uplift loads, it offers a cost-effective and time-saving alternative to traditional welded hangers.
  • Time-saving PAN nailing
  • G90 Galvanized Finish

Features

  • Features two face nails to allow for a higher uplift capacity.
  • Specifically created for I-joists to minimize splitting during installation.
  • Cost-effective solution for standard 90-degree connections compared to welded alternatives.

Includes

  • (1) HIT424 Top-Flange I-Joist Hanger
Products specifications
Material 16 Gauge Steel
Finish G90 Galvanized
Joist Size 3-1/2 inch x 24 inch
Hanger Width 3-9/16 inch
Hanger Height 24 inch
Top Nails (4) 0.162 inch x 3-1/2 inch
Face Nails (6) 0.162 inch x 3-1/2 inch
Joist Nails (2) 0.148 inch x 1-1/2 inch
*
*
*
