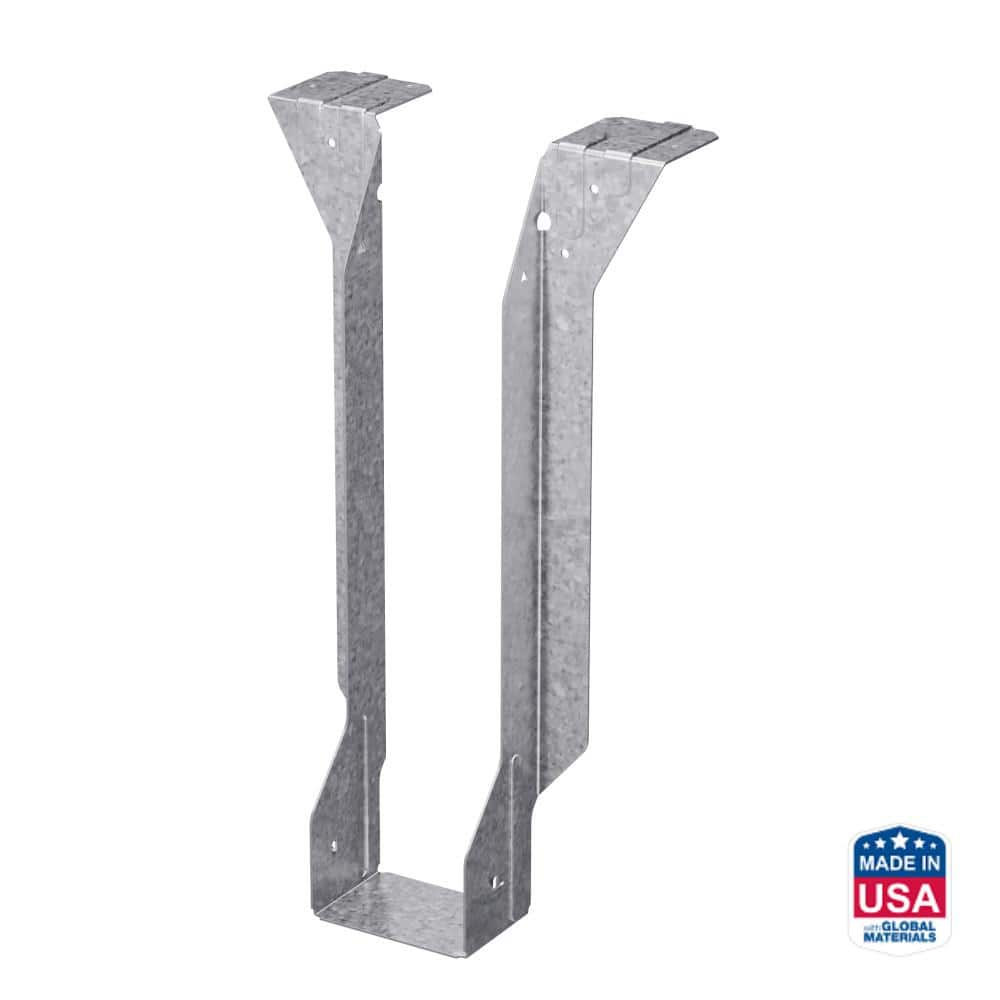

Simpson MIT - 3-1/2" x 16" Top Flange I-Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091852
Mfr. #: MIT416
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $19.09
i h h

Description

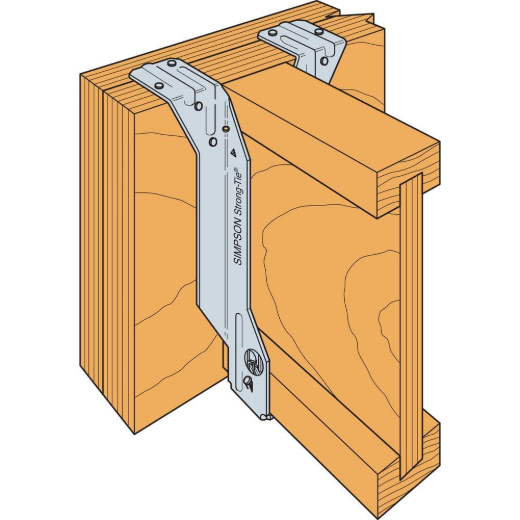

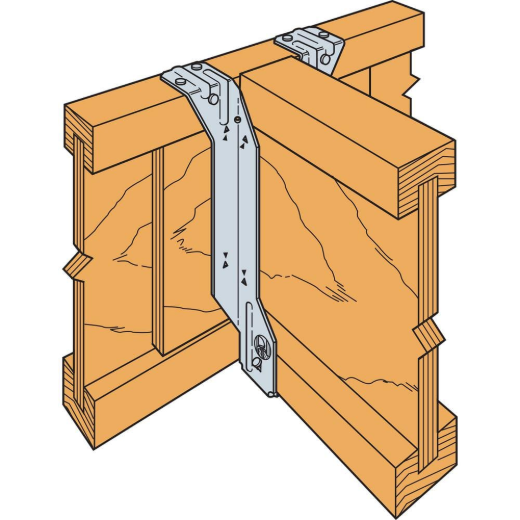

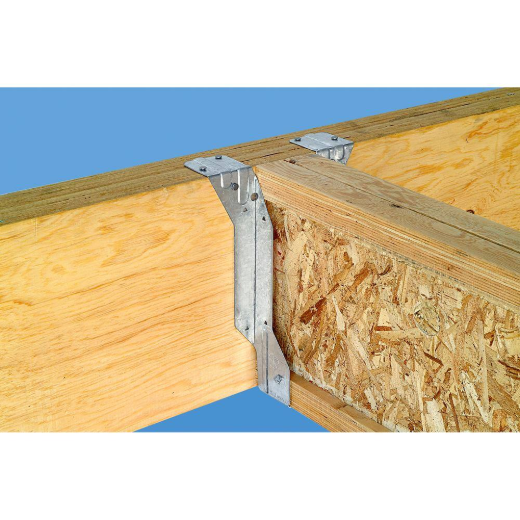

The Simpson Strong-Tie MIT416 is a high-quality top-flange hanger specifically engineered to support 90 connections of I-joists to headers. Designed with a proprietary Funnel Flange system, this hanger enables significantly easier and faster placement of joist members during installation. It also incorporates Positive-Angle Nailing (PAN) technology, which is crafted for I-joists to minimize flange splitting while allowing for secure, efficient nailing from an optimal angle. This connector provides a cost-effective, robust alternative to welded hangers for demanding residential and commercial applications.
  • Funnel Flange design for easier member placement
  • Positive-Angle Nailing (PAN) minimizes splitting

Features

  • Features additional triangle holes for increased uplift capacity
  • Features optional fastening with PAT for steel applications or headers
  • Constructed from 16-gauge steel with G90 galvanized finish for corrosion resistance

Includes

  • (1) MIT416 Top Flange I-Joist Hanger
Products specifications
Connector Type Top-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)

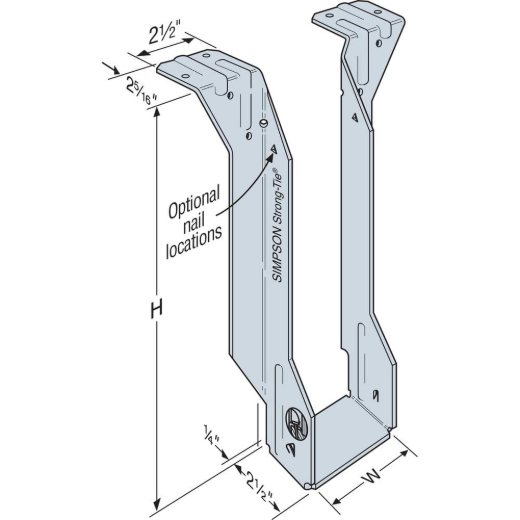

Joist / Lumber Size 4 in x 16 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Top-Flange
Series MIT
Steel Gauge 16 ga
*
*
*
