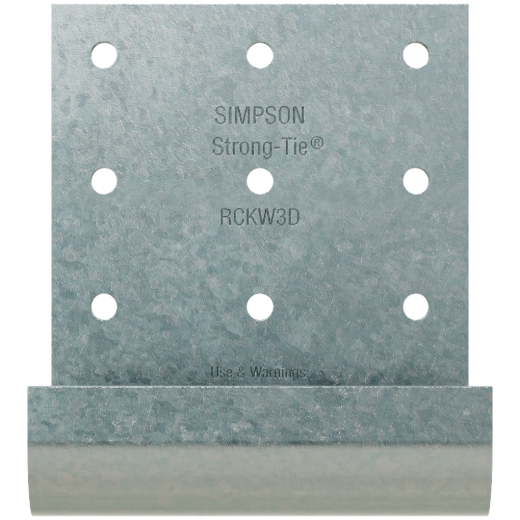

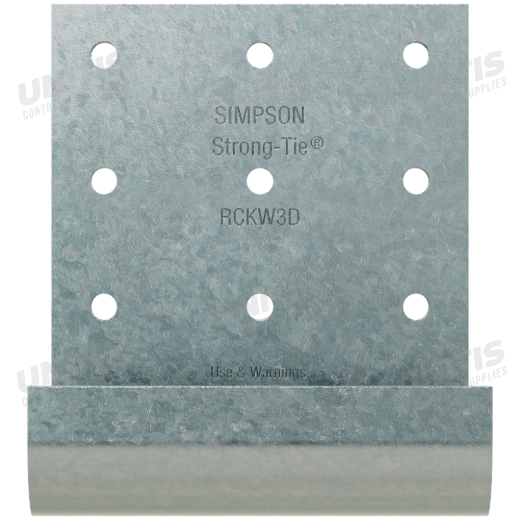

Simpson RCKW 3-" Two-Anchor Kneewall Connector Clip - 10/box

Mfr.: Simpson Strong-Tie
Item #: I093592
Mfr. #: RCKW3D-R10
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $102.75
i h h

Description

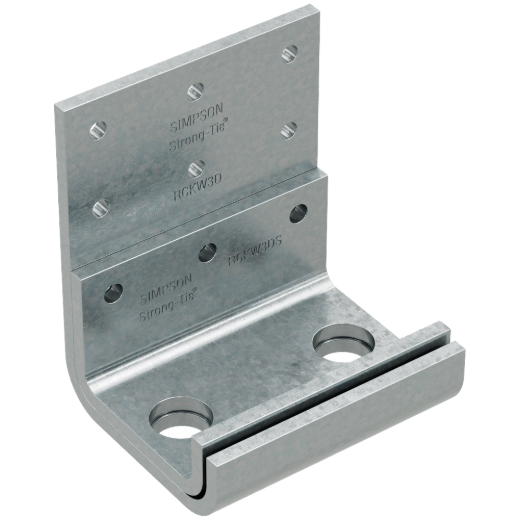

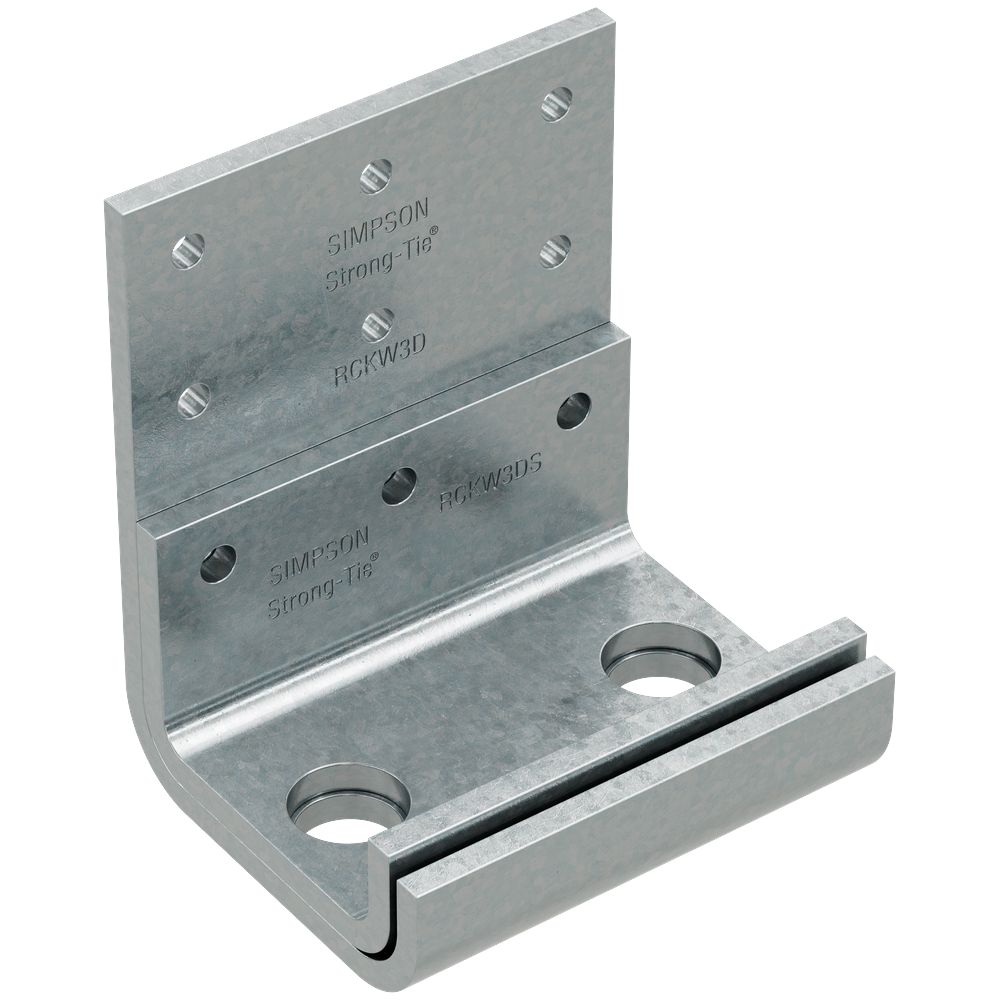

The Simpson Strong-Tie RCKW is a heavy 171 mil (7 ga.) rigid connector that has been developed to resist overturning moment at the base of exterior kneewalls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel. If load requires more capacity, a stiffener, the RCKWS can be added. The RCKWS is a heavy 171 mil (7 ga.) stiffener that nests onto the RCKW clip. The screw holes and anchor holes in the stiffener line up with those in the RCKW clip, making fastener and anchor installation a snap. The RCKW clip and RCKWS stiffener are sold separately.
  • RCKW3D has two large holes, one on each end for increased anchorage capacity
  • Anchorage legs incorporate stiffened flanges, improving overturning moment resistance

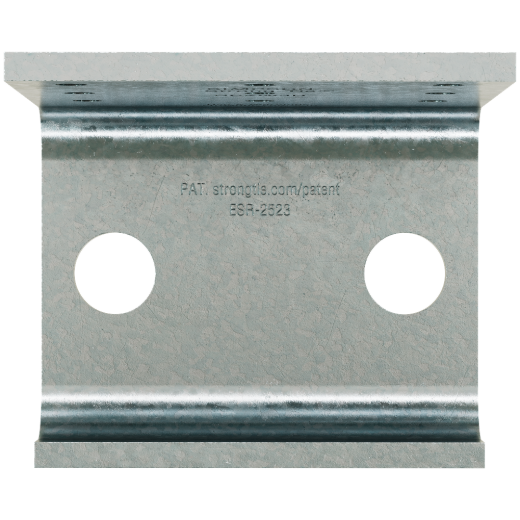

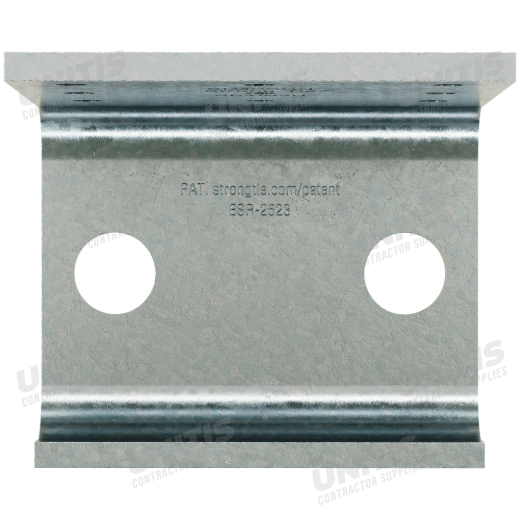

  • (2) Large-diameter anchor holes accommodate 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD heavy-duty screw anchor and the Strong-Bolt 2 wedge anchor
  • Width: 3 in.
  • Made from 171 mil (7 ga.) steel
  • Galvanized (G90) for corrosion resistance

Features

  • RCKW3D has two large holes, one on each end for increased anchorage capacity
  • Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
  • (2) Large-diameter anchor holes accommodate 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD heavy-duty screw anchor and the Strong-Bolt 2 wedge anchor
  • Width: 3 in.
  • Made from 171 mil (7 ga.) steel
  • Galvanized (G90) for corrosion resistance

Specifications


Width3 inchMaterial Thickness171 mil (7 ga.)
MaterialSteelFinishGalvanized (G90)
*
*
*
