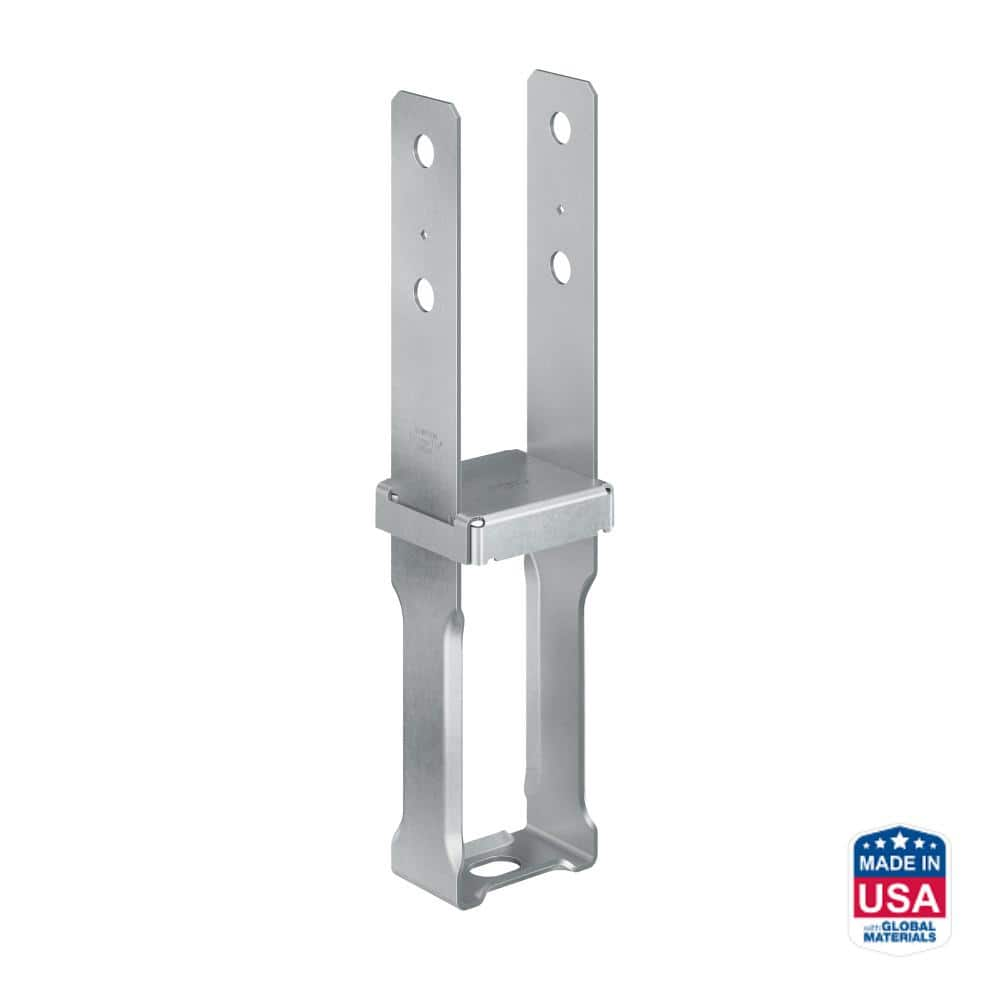

Simpson CBS - 4" x 4" Column Base Standoff

Mfr.: Simpson Strong-Tie
Item #: I090959
Mfr. #: CBS44
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $47.73
i h h

Description

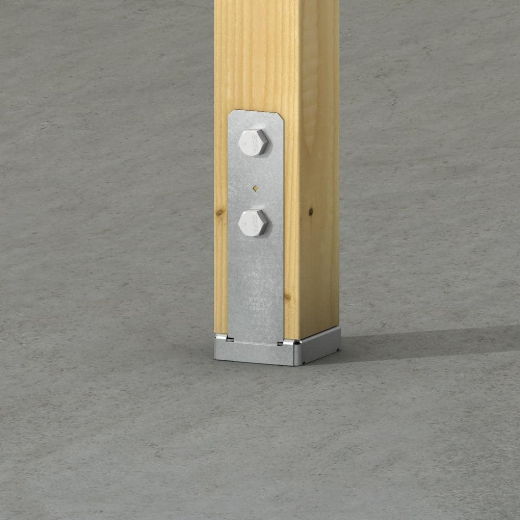

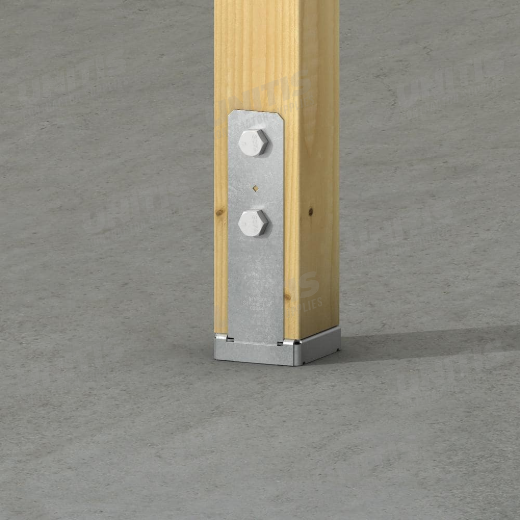

The Simpson Strong-Tie CBS44 Column Base enhances the strength and stability of your construction projects by connecting 4x4 posts to concrete foundations. Crafted from durable heavy-gauge steel, it features a 1-inch standoff to meet building code requirements and help prevent post-end decay caused by moisture. This wet-set connector is engineered to distribute structural stresses efficiently to the foundation, making it ideal for basements or outdoor applications.
  • 1-inch standoff height to prevent rot
  • Heavy-gauge steel construction
  • G90 galvanized finish for corrosion resistance
  • Shipped with base plate pre-assembled

Features

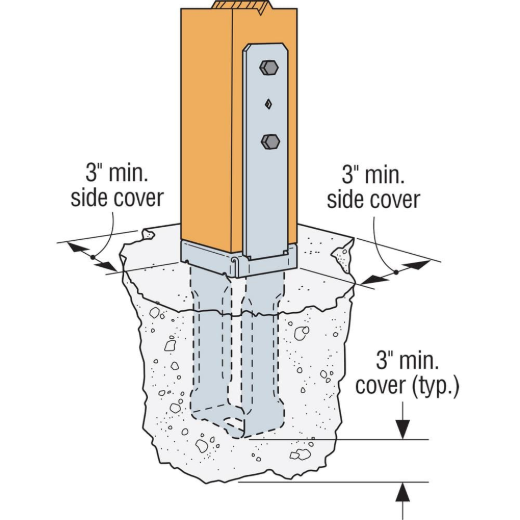

  • Designed for cast-in-place or wet-set installation
  • Transmits structure stresses to the foundation
  • Meets code requirements for structural posts
  • Engineered and tested for superior performance

Includes

  • (1) Galvanized Standoff Column Base
  • Pre-assembled base plate
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-3050
Connector Type Column Base
Country of Origin Varies (subject to change)
Finish / Coating Galvanized (G90)
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x4
Series CBS
*
*
*
