Simpson Strong-Tie 4X4 Elevated Post Base Hdg

Mfr.: Simpson Strong-Tie
Item #: I091003
Mfr. #: EPB44PHDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $27.12
i h h

Description

The Simpson Strong-Tie EPB44PHDG is a versatile elevated post base engineered to provide a secure connection for 4x4 wood posts in both cast-in-place and retrofit concrete applications. It features an adjustable design that allows for 1 inch to 2-1/2 inch of clearance above the concrete surface, effectively protecting wood from moisture and rot. Built from heavy-duty 12-gauge steel with a hot-dip galvanized finish, this base ensures long-lasting durability and superior corrosion resistance in outdoor environments. It is an ideal solution for structural projects like decks and patio covers that require code-compliant standoff heights.
  • Hot-Dip Galvanized Coating
  • Adjustable Standoff Height

Features

  • Provides a code-required 1-inch standoff to prevent wood decay at the post end.

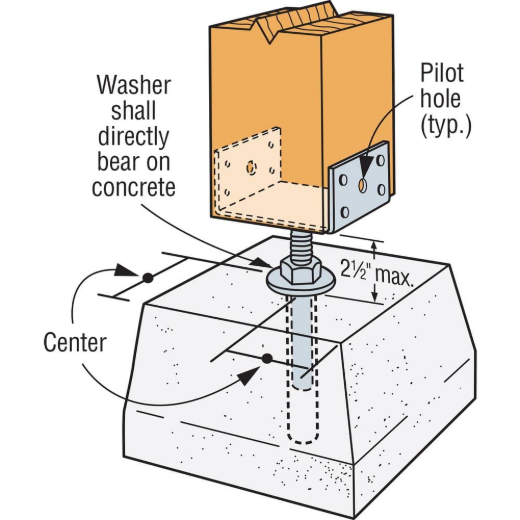

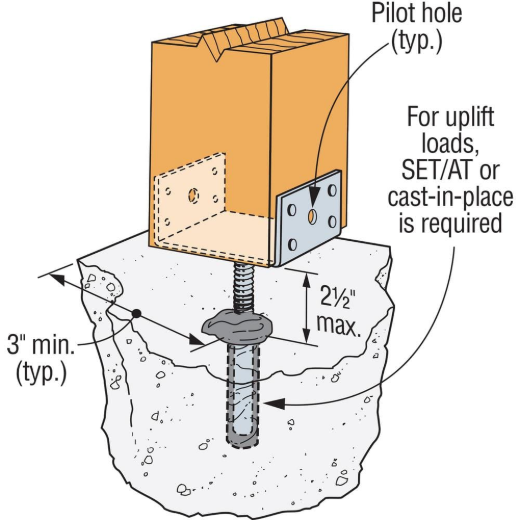

  • Compatible with both wet-cast and epoxy-anchor retrofit installations.
  • Heavy-gauge steel construction provides high strength and structural stability.
  • Approved for use with pressure-treated lumber due to the HDG finish.

Includes

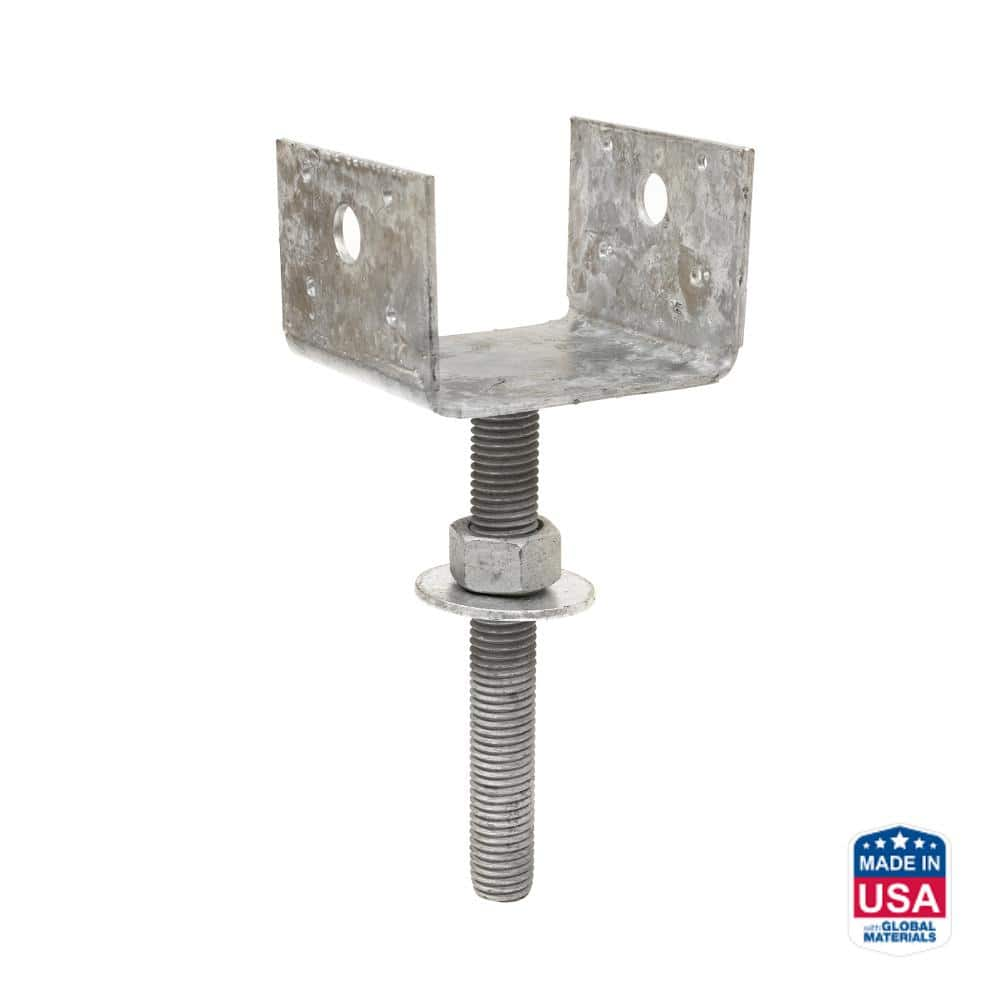

  • Elevated Post Base with 3/4 inch x 6 inch Threaded Rod
  • Pre-assembled Nut and Washer
Products specifications
Post Size 4x4
Material 12-Gauge Steel
Finish Hot-Dip Galvanized
Base Width 3-9/16 inch
Base Length 3-1/4 inch
Base Height 2-5/16 inch
Threaded Rod Size 3/4 inch x 6 inch
Standoff Range 1 inch to 2-1/2 inch
Required Fasteners (8) 0.162 inch x 3-1/2 inch Nails
*
*
*
