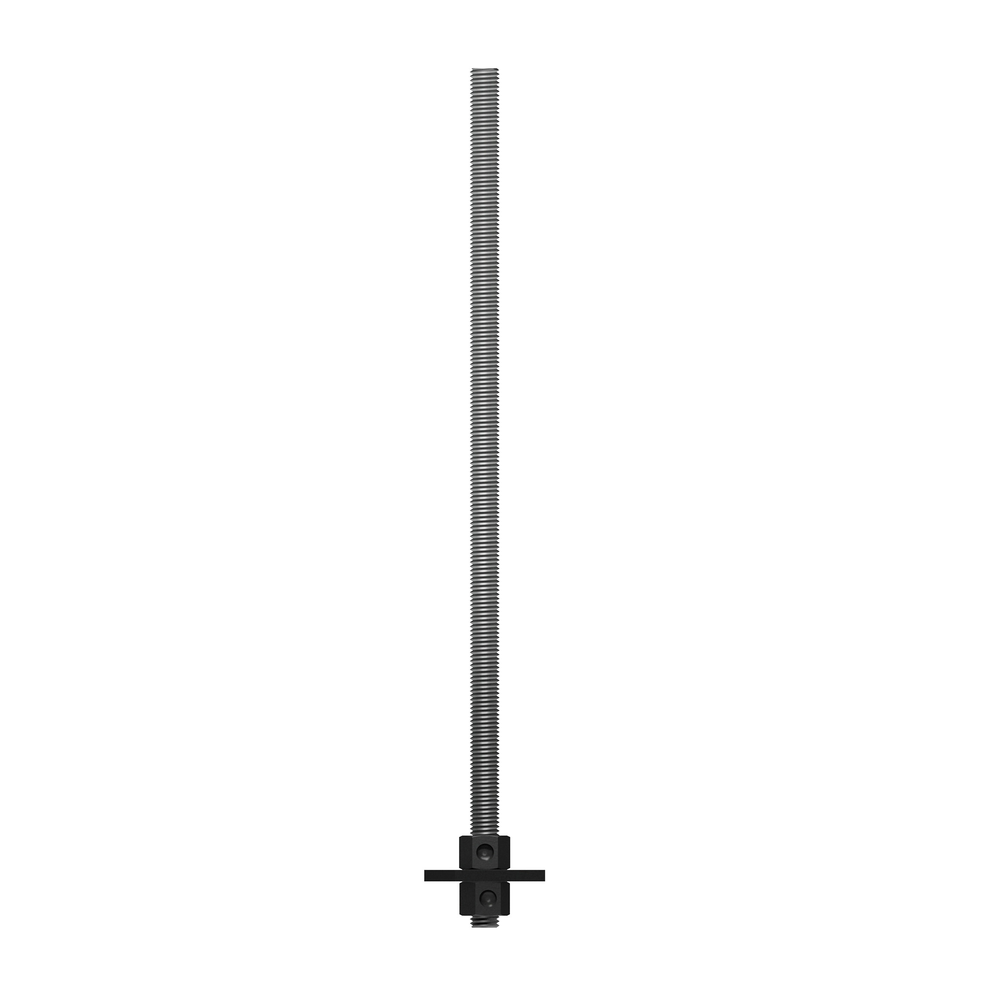

Simpson PAB 5/8" x 18" HDG Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I093350
Mfr. #: PAB5-18-HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $47.79
i h h

Description

The Simpson Strong-Tie PAB anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
  • Versatile cast-in-place anchor bolt for high-tension-load applications
  • Plate washer at embedded end between two fixed hex nuts
  • Head stamp for easy identification after pour

Features

  • Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
  • Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
  • Rod diameter: 5/8 in.
  • Rod length: 18 in.
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Specifications


Diameter1/2 inch to 1-1/4 inchLength12 inch to 36 inch (in 6 inch increments)
Rod Diameter5/8 inchRod Length18 inch
FinishHot-dip galvanization (HDG)
Products specifications
Anchor Diameter 5/8 in
Anchor Type Cast-In-Place
Code Listing ASTM F1554 Grade 36; HDG per ASTM A153
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Head Style Pre-Assembled with Washer & Nut
Material Carbon Steel
Overall Length 18 in
*
*
*
