Simpson Strong-Tie 6X6 Post Base Standoff

Mfr.: Simpson Strong-Tie
Item #: I091034
Mfr. #: PBS66HDG
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $58.40
i h h

Description

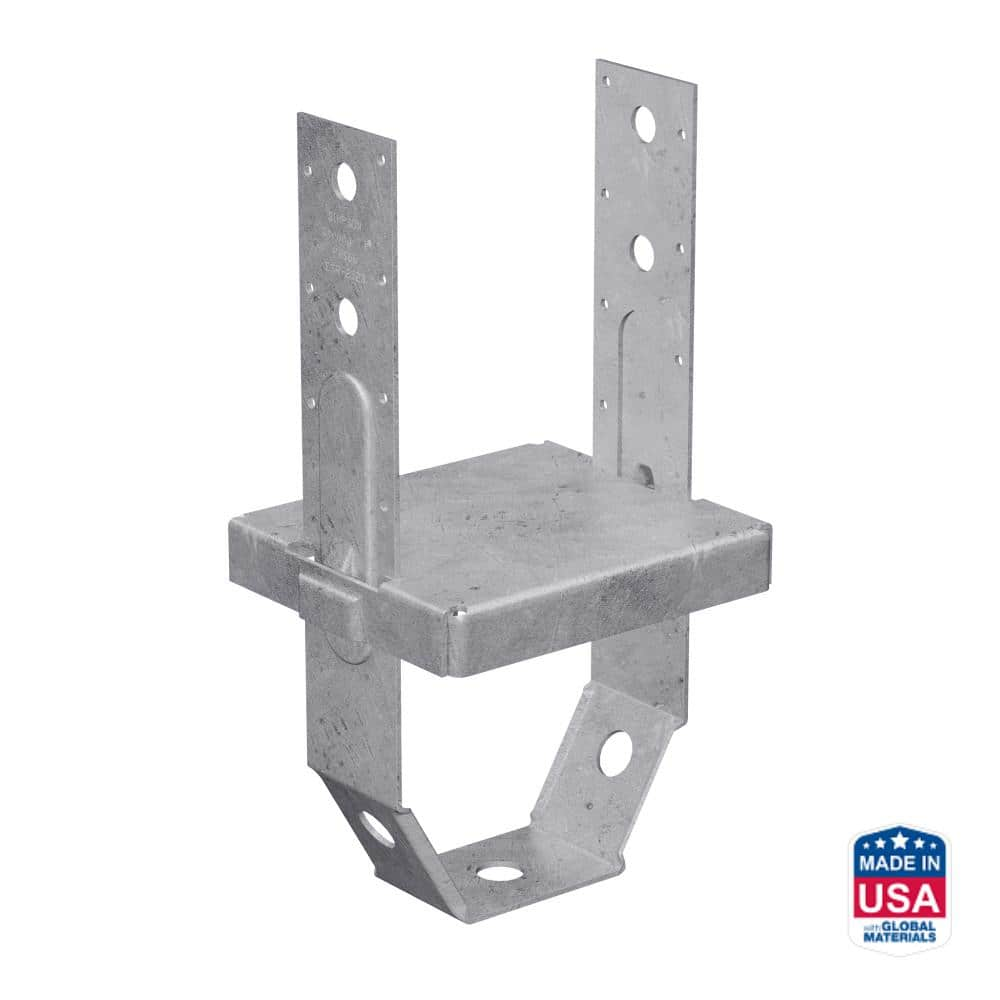

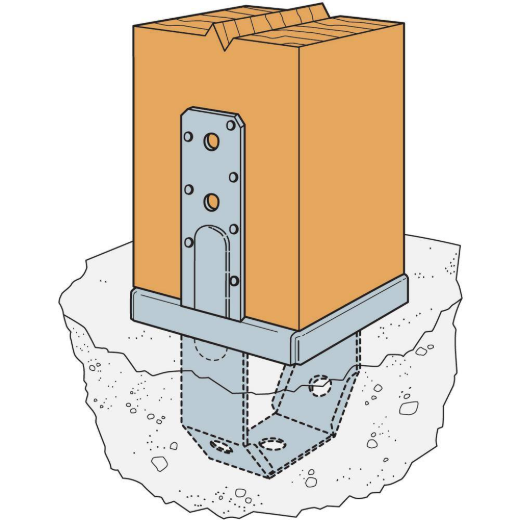

The Simpson Strong-Tie PBS66HDG is a high-strength post base designed to secure 6x6 wood posts to concrete foundations using a cast-in-place installation. It features a 1-inch standoff that elevates the post above the concrete, effectively preventing moisture-induced decay and meeting building code requirements. This heavy-duty connector is ideal for supporting outdoor structures such as decks, patio covers, and pergolas.
  • Hot-Dip Galvanized Finish
  • 1-Inch Standoff Height
  • 12-Gauge Steel Construction

Features

  • Elevated design protects wood posts from standing water and rot.
  • Hot-dip galvanization provides superior corrosion resistance for exterior and treated-wood applications.
  • Embossed vertical straps offer increased structural strength and stiffness.

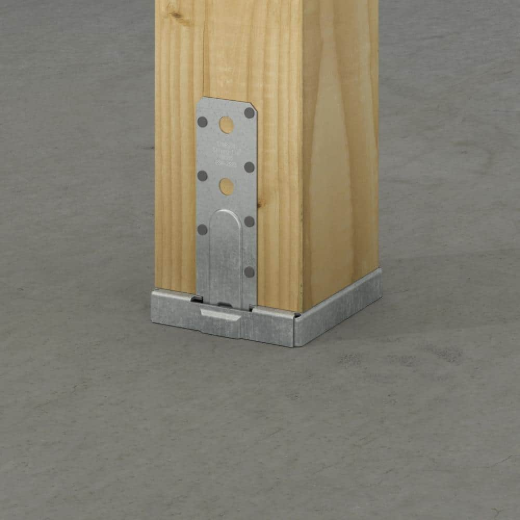

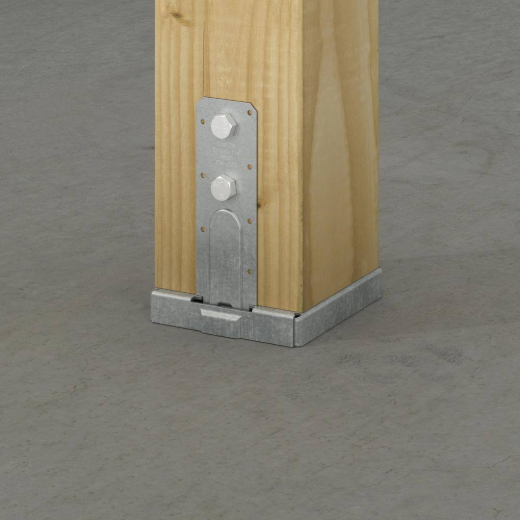

  • Versatile fastening options allow for use with either nails or bolts.

Includes

  • 1 x PBS66HDG Post Base Unit
Products specifications
Model Number PBS66HDG
Post Size 6x6
Material 12-Gauge Steel
Finish Hot-Dip Galvanized
Standoff Height 1 Inch
Embedment Depth 5 Inches
Fasteners Required 14 Nails or 2 Bolts
Nail Size 0.162 inch x 3-1/2 inch
Bolt Size 1/2 inch Diameter
Code Reference ESR-3050
*
*
*
