Simpson Strong-Tie 6X6 Post Base Zmax

Mfr.: Simpson Strong-Tie
Item #: I091030
Mfr. #: PB66Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $33.13
i h h

Description

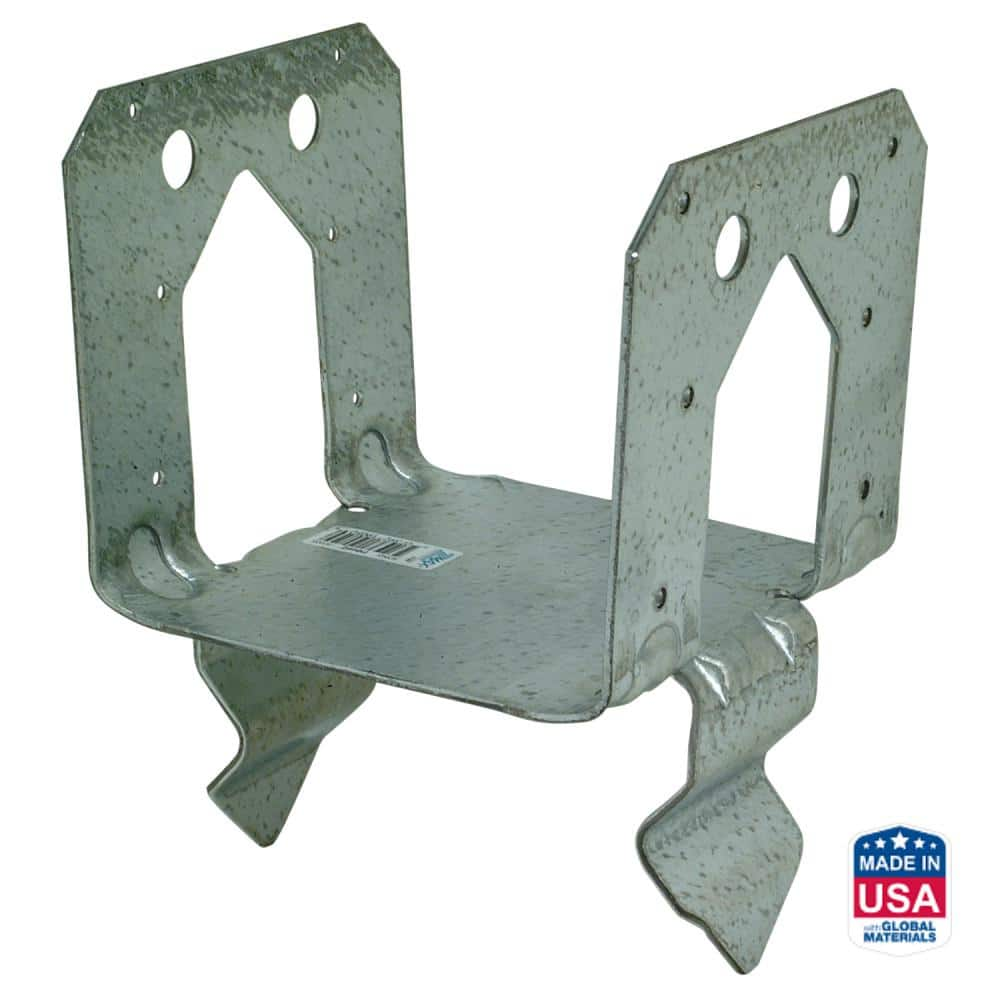

The Simpson Strong-Tie PB66Z is a heavy-duty post base designed to provide a secure connection between 6x6 wood posts and concrete for top-supported structures like decks and patio covers. Part of the Simpson PB Series, this non-standoff base is engineered for cast-in-place installation, embedding directly into wet concrete for a clean and flush finish. It is manufactured from 12-gauge steel and features a ZMAX coating to ensure superior corrosion resistance in exterior or treated-wood applications. This robust connector provides a dependable foundation for residential and light commercial framing projects.
  • ZMAX Galvanized Finish
  • 12-Gauge Steel Construction

Features

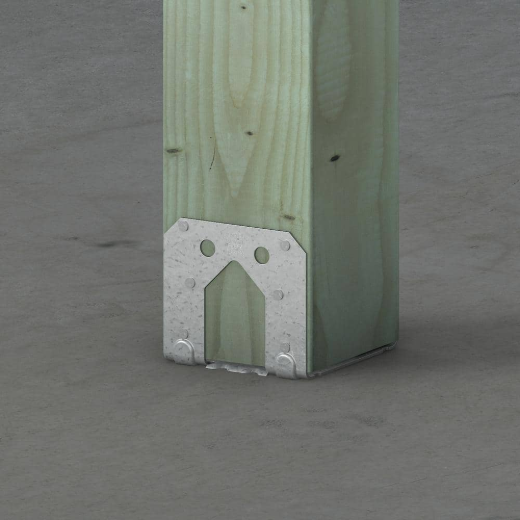

  • Designed to be cast-in-place in wet concrete for a permanent and secure post connection.
  • Flush installation with the concrete surface provides a professional, low-profile appearance.
  • Equipped with stress relief holes and seat embossment to increase overall strength and resist loading.
  • High uplift capacity of up to 850 lb ensures stability against wind and dynamic forces.

Includes

  • (1) PB66Z 6x6 Post Base
Products specifications
Material 12-Gauge Steel
Finish ZMAX Galvanized
Post Size 6x6
Base Type Non-Standoff
Length 5-1/4 inch
Width 5-1/2 inch
Uplift Capacity 850 lb
Fasteners Required (12) 16d nails or (2) 1/2 inch bolts
*
*
*
