  • Simpson Strong-Tie 6x6 Rough Column Base

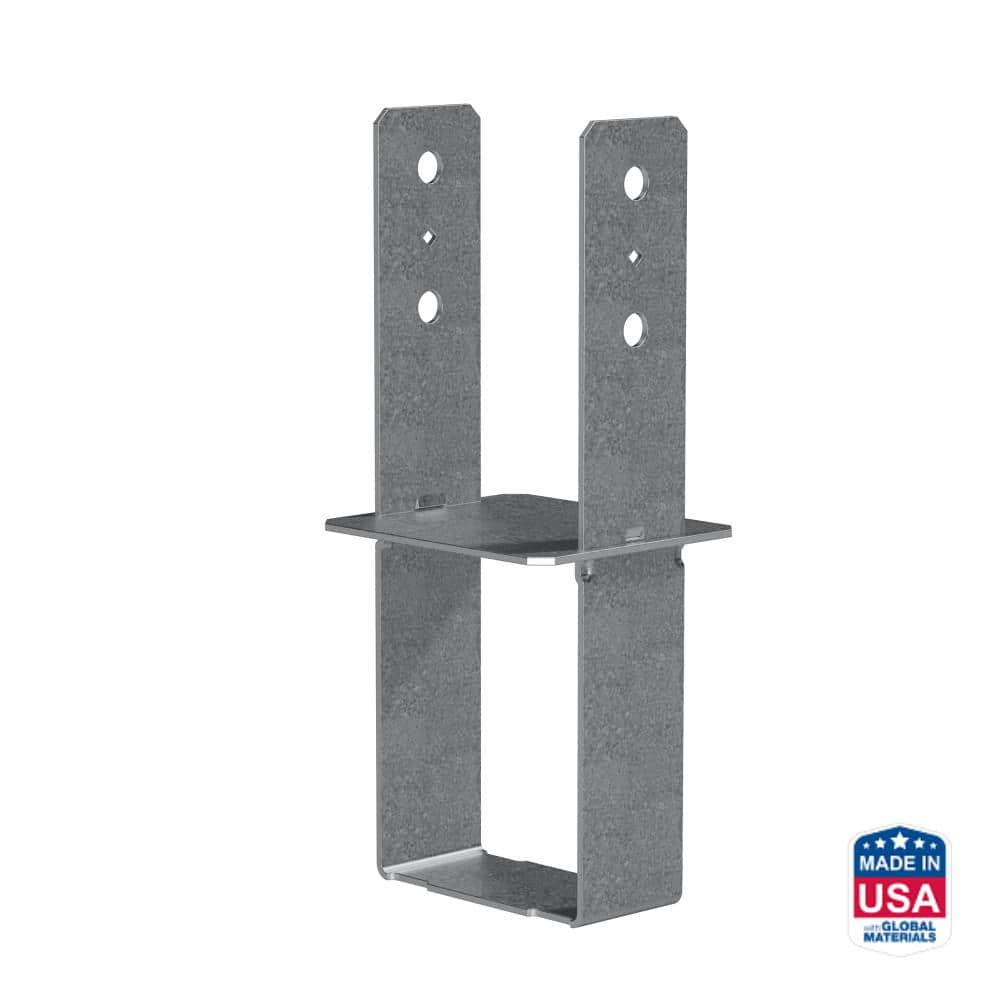

Simpson Strong-Tie 6x6 Rough Column Base

Mfr.: Simpson Strong-Tie
Item #: I090935
Mfr. #: CB66R
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $68.79
i h h

Description

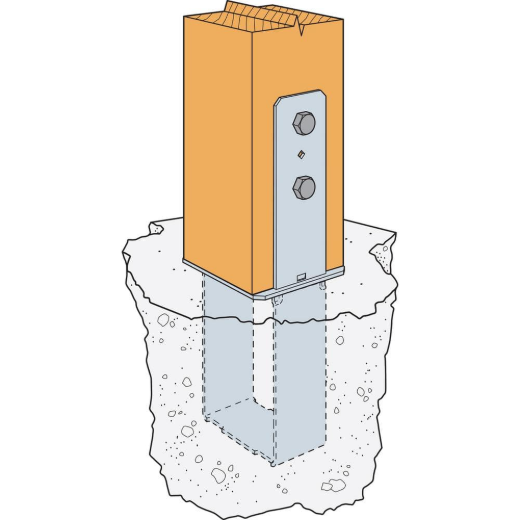

The Simpson Strong-Tie CB66R is a heavy-duty column base designed to provide a secure connection between 6x6 rough-cut lumber posts and concrete foundations. This connector is specifically engineered for cast-in-place or wet-set installation, ensuring the base plate sits flush with the concrete surface for maximum post bearing and stability. Ideal for structural projects requiring high load capacities, it offers significant uplift resistance against wind and seismic forces. Its rugged construction makes it a reliable choice for both residential and commercial applications where durability is paramount.
  • Designed for 6x6 Rough Cut Lumber
  • G90 Galvanized Finish
  • 7-Gauge Heavy Steel Construction

Features

  • Increased uplift resistance provides safety against wind and seismic loading.
  • Bolt hole locations are precision-engineered to meet code-required spacing for optimal capacity.
  • Flush-mount design allows for full post bearing on the concrete foundation.

Includes

  • (1) 6x6 Rough Column Base
Products specifications
Material 7-Gauge Steel
Finish G90 Galvanized
Post Size 6x6 Rough
Fasteners Required (2) 5/8-in Bolts

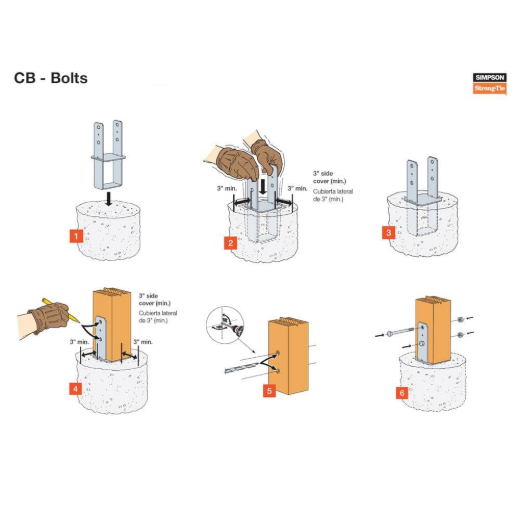

Installation Cast-In-Place / Wet-Set
Product Series CB Series
Lumber Type Rough-Cut
*
*
*
