  • Simpson Strong-Tie 8X8 Rough Column Base

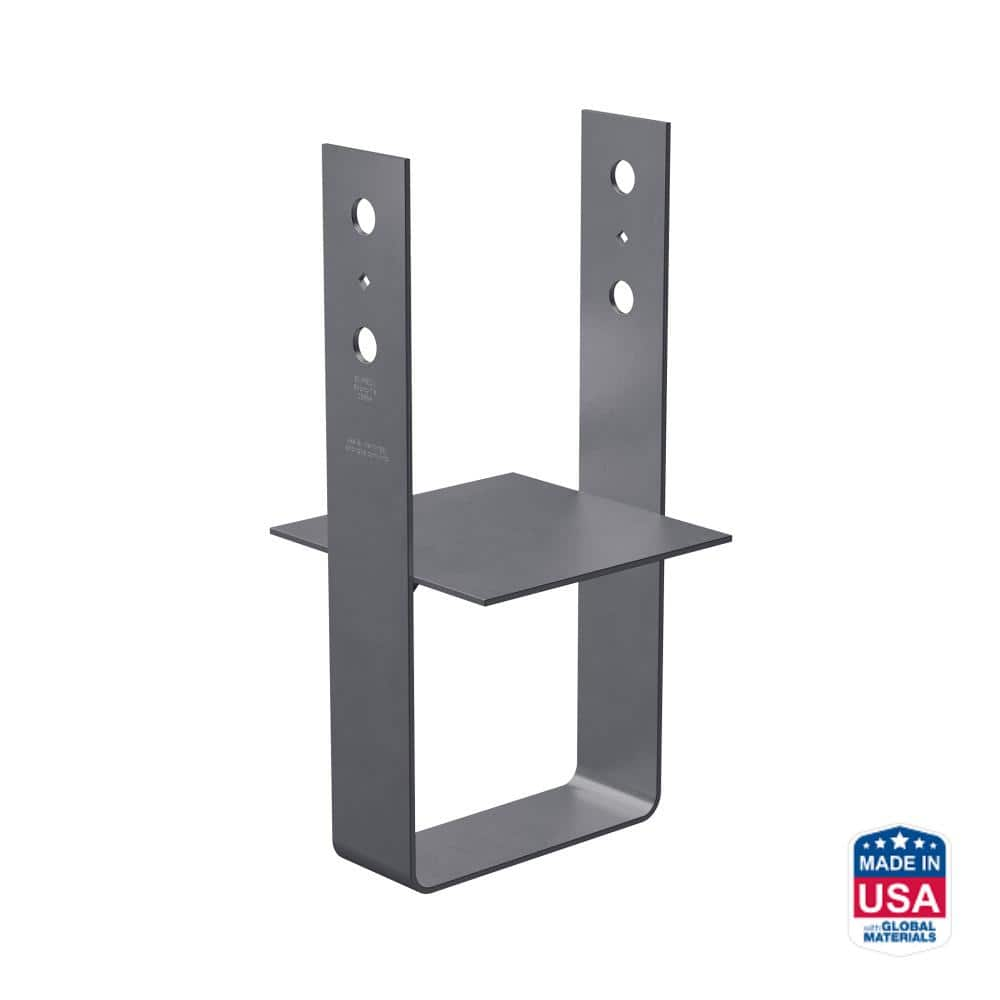

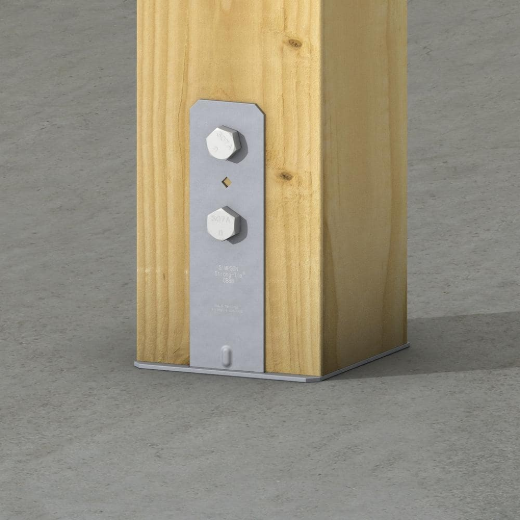

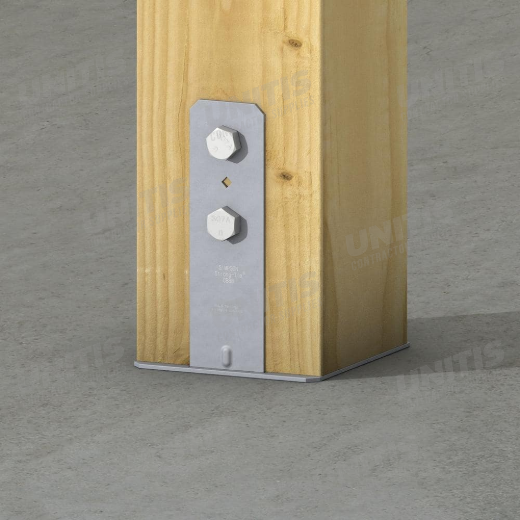

Simpson Strong-Tie 8X8 Rough Column Base

Mfr.: Simpson Strong-Tie
Item #: I090953
Mfr. #: CB88R
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $137.33
i h h

Description

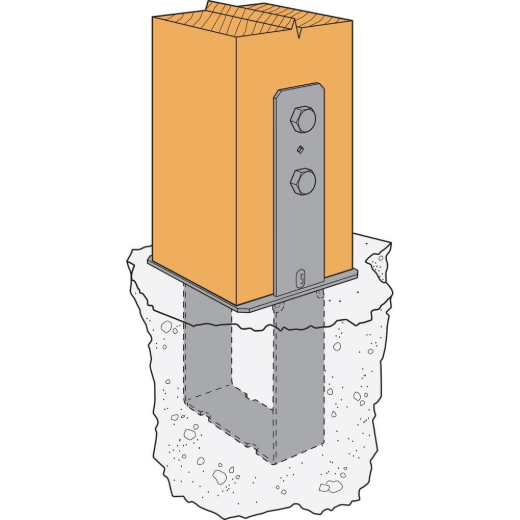

The Simpson Strong-Tie CB88R is a heavy-duty column base designed to provide a secure connection between 8x8 rough-cut wooden posts and concrete foundations. Engineered for high-load applications, this connector is cast-in-place or wet-set into concrete to ensure the base plate sits flush for optimal post bearing. It offers superior uplift resistance, making it an ideal choice for projects in areas prone to high winds or seismic activity. The durable steel construction and protective gray paint finish provide long-lasting structural integrity for both residential and commercial builds.
  • Heavy-Gauge Steel Construction
  • Gray Paint Protective Coating

Features

  • Designed specifically for 8x8 rough-cut lumber to ensure a precision fit without field modifications.

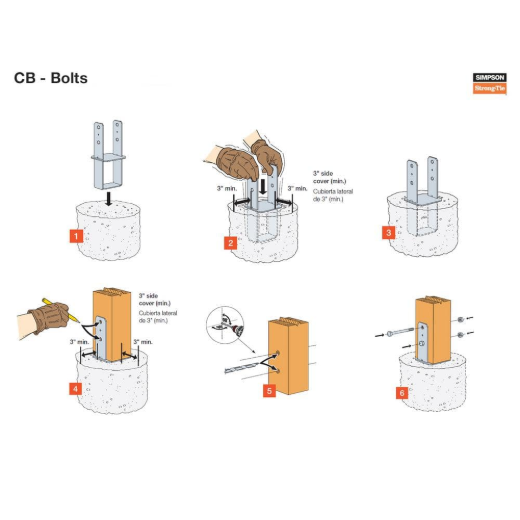

  • Wet-set installation allows the bottom of the base plate to sit flush with the concrete for full post bearing.
  • Increased uplift resistance provides essential stability against wind and seismic loading.
  • Bolt hole locations are engineered to meet code-required spacing for maximum structural capacity.

Includes

  • (1) CB88R 8x8 Rough Column Base
Products specifications
Model No. CB88R
Post Size 8x8 Rough Cut
Material Steel
Finish Gray Paint
Base Gauge 7 Gauge
Strap Gauge 3 Gauge
Bolts Required (2) 3/4 inch Bolts
Connection Cast-in-place
*
*
*
