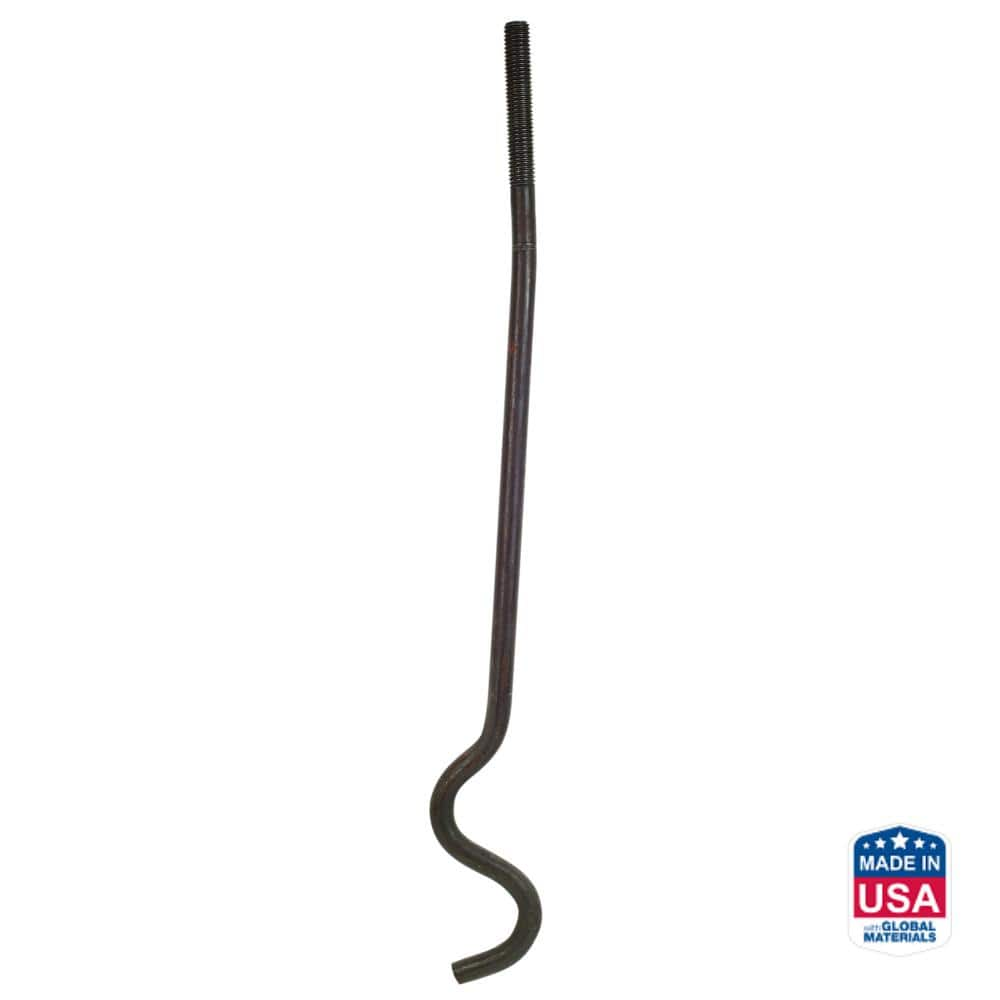

Simpson SSTB - 5/8" x 21-5/8" Stab Bolt - Plain

Mfr.: Simpson Strong-Tie
Item #: I093704
Mfr. #: SSTB20-R
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $13.22
i h h

Description

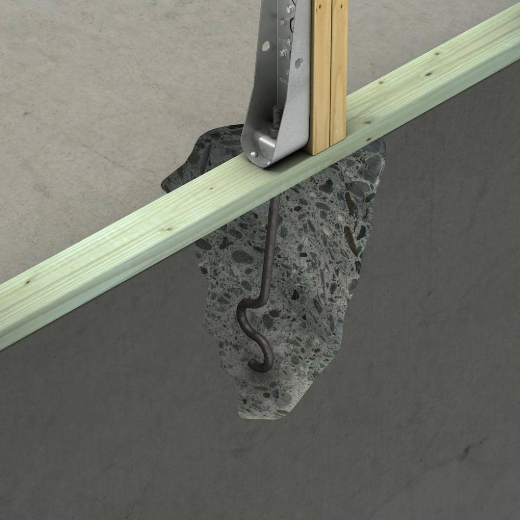

The Simpson Strong-Tie SSTB20-R Anchor Bolt is engineered for superior performance in concrete applications, specifically designed for holdowns and Simpson Strong-Tie Strong-Wall shearwalls. This anchor bolt offers high tensile capacity due to its rolled threads and features an offset angle that minimizes concrete side bursting while providing increased concrete cover. Extensive testing has validated its load capacity in various common installations, and it is code-listed by ICC-ES for use in IBC and IRC applications.
  • High tensile capacity
  • Corrosion resistant

Features

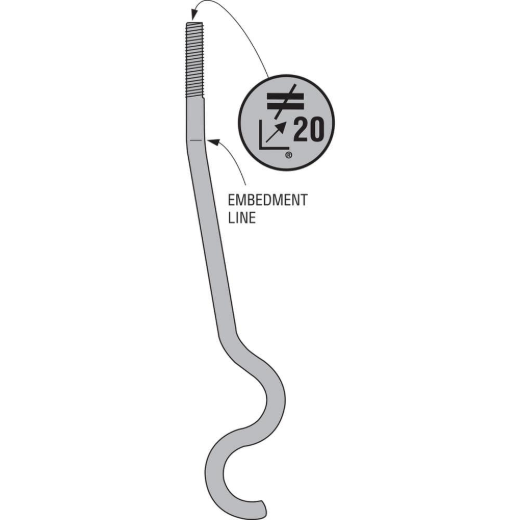

  • Identification on the bolt head showing embedment angle and model.

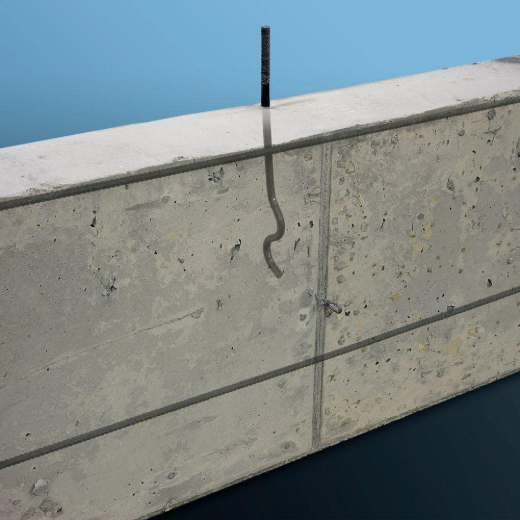

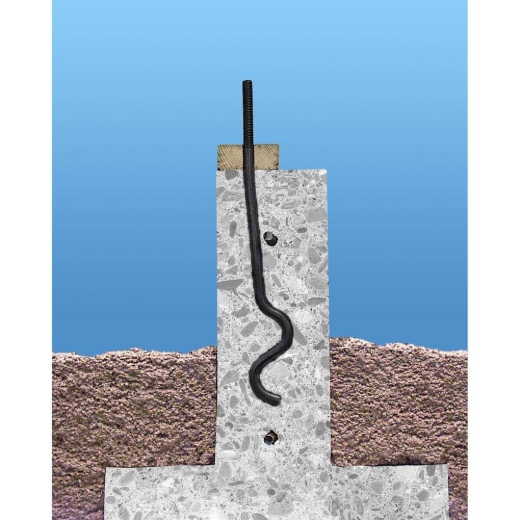

  • Offset angle reduces side bursting and provides more concrete cover.
  • Rolled thread for higher tensile capacity.

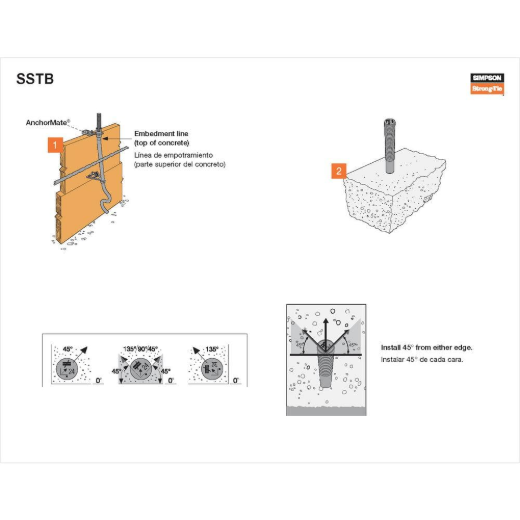

  • Stamped embedment line aids installation.

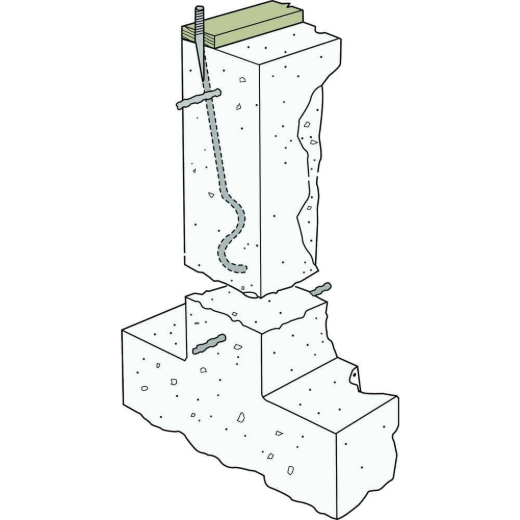

  • Suitable for monolithic and two-pour concrete applications.
  • Available in HDG for additional corrosion resistance.

Includes

  • 1 x Simpson Strong-Tie SSTB20-R Anchor Bolt
Products specifications
Anchor Diameter 5/8 in
Anchor Type Cast-In-Place
Code Listing ASTM F1554 Grade 36
Country of Origin Varies (subject to change)
Finish / Coating Plain
Head Style Threaded Stud
Material Carbon Steel
Overall Length 21-5/8 in
*
*
*
