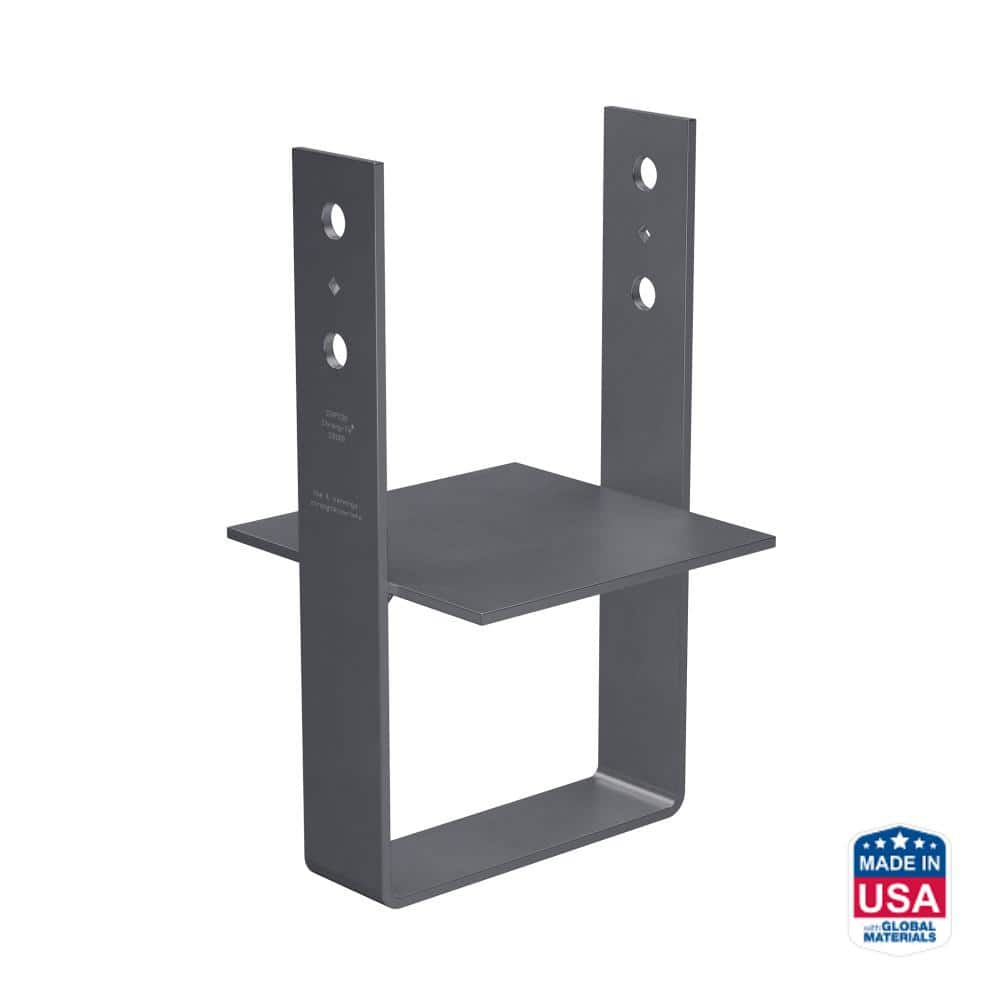

Simpson Strong-Tie CB1010 Column Base

Mfr.: Simpson Strong-Tie
Item #: I090914
Mfr. #: CB1010
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $152.48
i h h

Description

The Simpson Strong-Tie CB1010 is a heavy-duty column base designed to provide a secure and stable connection between 10x10 wood posts and concrete foundations. Engineered for cast-in-place or wet-set applications, this connector ensures that the bottom of the base plate sits flush with the concrete surface for full post bearing. It is ideal for high-load structural projects requiring rugged performance and exceptional durability in various wood types, including glulam and engineered lumber.
  • Heavy-Gauge 3-Gauge Steel
  • Simpson Gray Paint Finish

Features

  • Provides increased uplift resistance for high wind or seismic loading conditions.
  • Bolt hole locations are engineered to meet code-required spacing for optimal load capacity.

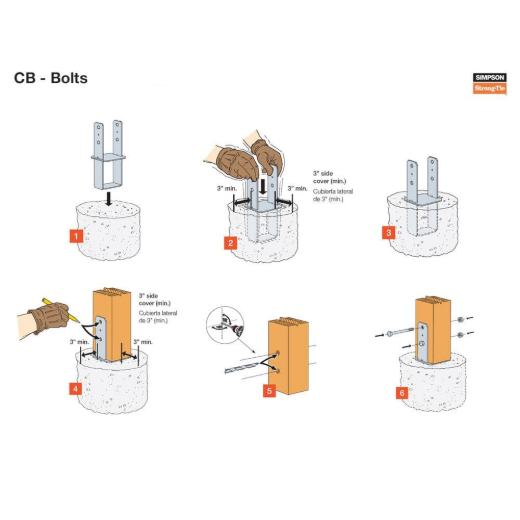

  • Cast-in-place design ensures a flush finish with the concrete for maximum structural stability.

Includes

  • (1) 10x10 Column Base
Products specifications
Material Heavy-Gauge Steel
Finish Gray Paint
Post Size 10x10
Strap Gauge 3 Gauge
Base Gauge 3 Gauge
Required Fasteners (2) 3/4 inch Machine Bolts
Connection Type Cast-in-Place / Wet-Set
*
*
*
