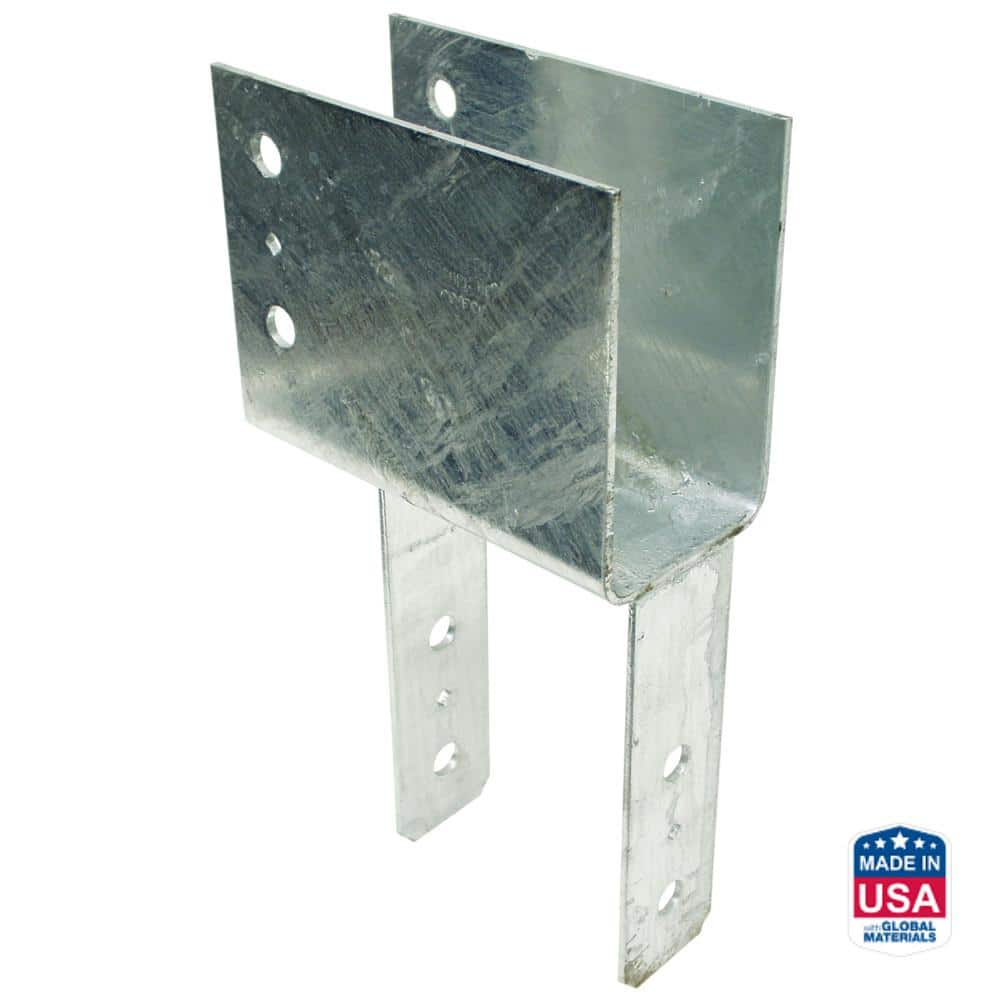

Simpson Strong-Tie CC46 Column Cap

Mfr.: Simpson Strong-Tie
Item #: I092229
Mfr. #: CC46
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $152.48
i h h

Description

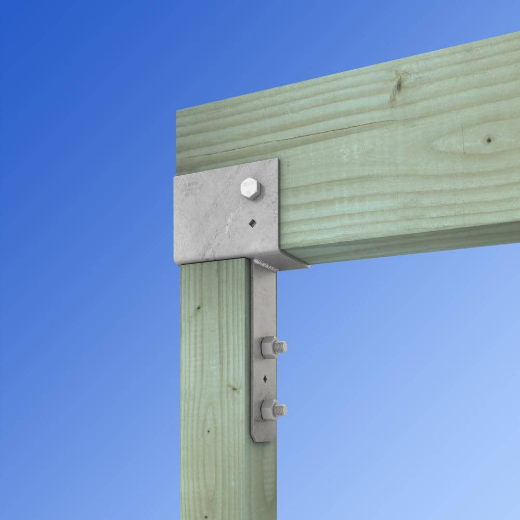

The Simpson Strong-Tie CC46 Column Cap is expertly engineered to ensure robust column-beam connections in wood construction, making it an essential component for any building project. It provides a strong connection for column-beam combinations, offering enhanced load distribution and increased bearing surface for superior stability. Constructed from heavy-gauge steel with a durable gray paint finish, the CC46 is built to withstand high structural loads and resist corrosion, ensuring lasting performance and safety in applications like wood decks, pergolas, and outdoor shelters.
  • Strong column-beam connections
  • Heavy-gauge steel construction
  • Durable gray paint finish

Features

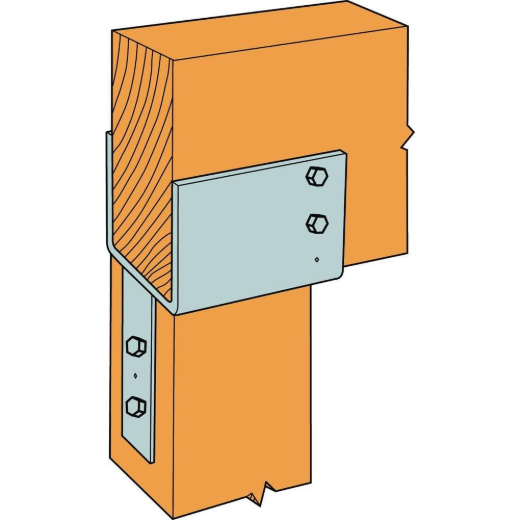

  • Precision-formed for accurate post-to-beam alignment.
  • Seat provides additional bearing surface beyond each side of the column.
  • Pre-punched holes for fast installation with structural connectors.
  • Designed for use with 4x4 posts and 6x beams.
  • Certified welds for confidence in strength and loading.
  • Uplift loads increased for earthquake or wind loading.
  • Bolt spacing meets NDS code requirements.

Includes

  • (1) CC46 Column Cap
Products specifications
Beam size 4x
Post size 6x
Material Heavy Gauge Steel
Finish Gray Paint
Gauge 7 Gauge
Beam Width (in.) 3 1/2
W1 (in.) 3 5/8
W2 (in.) 5 1/2
Length (in.) 11
Height (in.) 6 1/2
Bolt Size 5/8 inch
*
*
*
