Simpson Strong-Tie Galvanized Predeflected Holdown With SDS Screws

Mfr.: Simpson Strong-Tie
Item #: I093090
Mfr. #: HDUE3-SDS3
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $49.80
i h h

Description

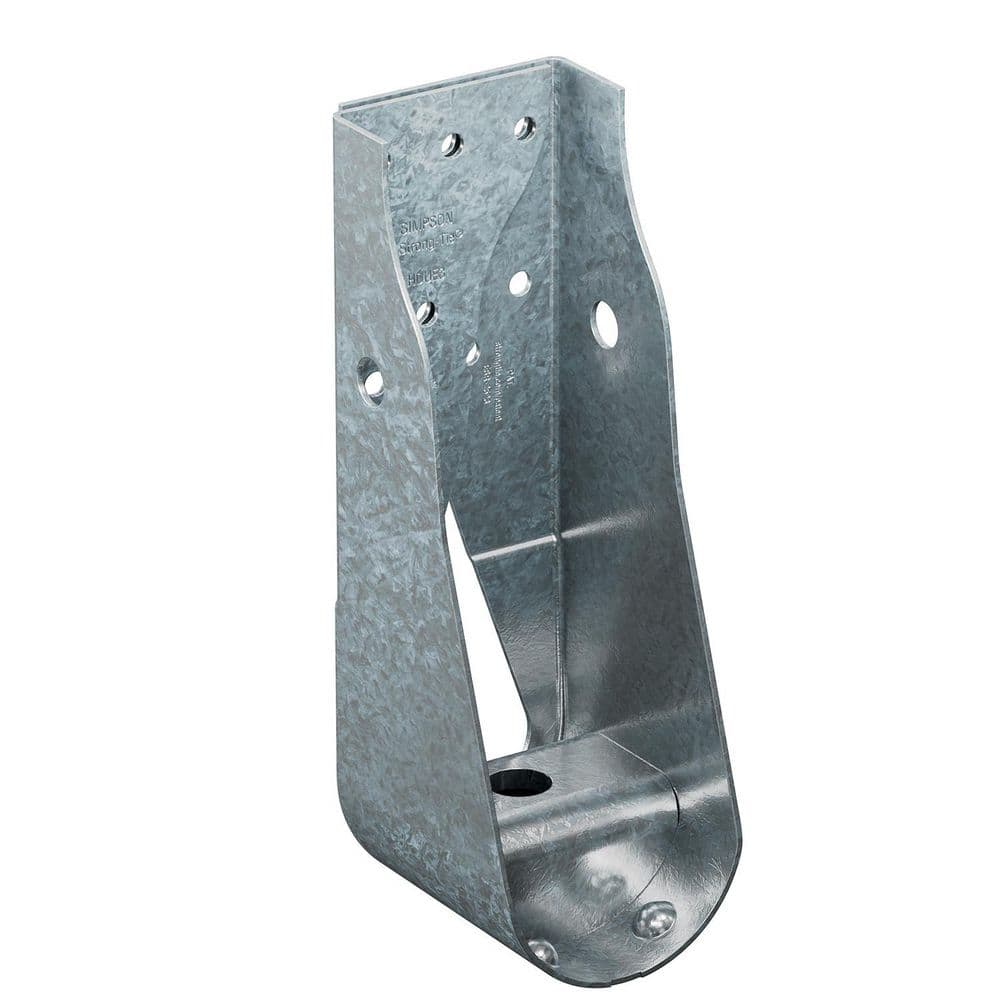

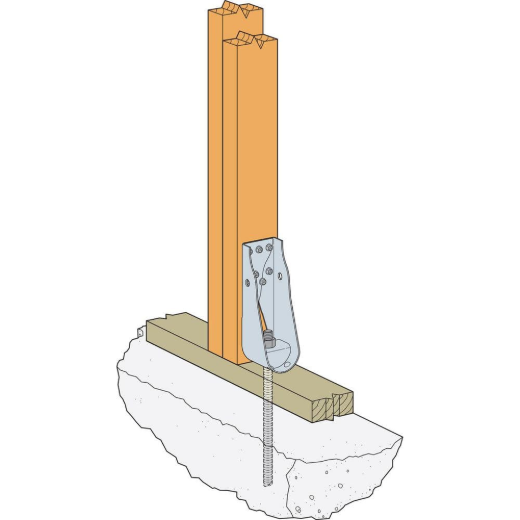

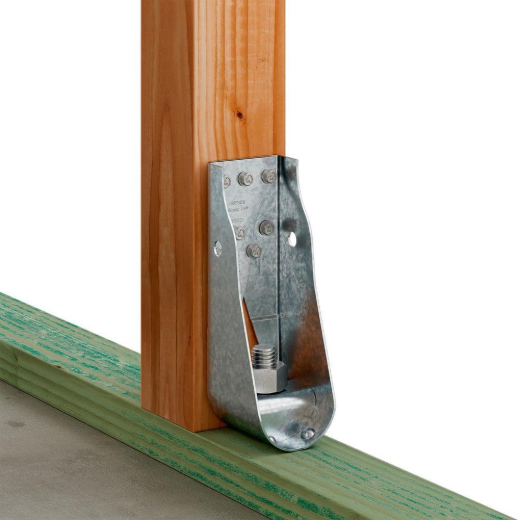

The Simpson Strong-Tie HDUE3-SDS3 is a high-capacity structural holdown designed for wood construction, providing exceptional lateral-load resistance and structural stability. It effectively transfers uplift and overturning forces from wood framing into concrete foundations, making it ideal for shearwalls, braced wall panels, and other lateral-force-resisting applications. Engineered with a predeflected seat and an overlapping back plate, this holdown minimizes deflection under load and reinforces steel strength for superior performance and reliability in demanding residential and multi-story projects. Installation is fast and efficient with the included Strong-Drive SDS Heavy-Duty Connector screws.
  • High Load Capacity
  • Pre-Deflected Design
  • Includes SDS Screws

Features

  • Predeflected seat reduces deflection under load for improved structural stability.
  • Overlapping back plate increases fastener strength and shear values, helping prevent post splitting.
  • Optimized screw patterns reduce wood splitting and maximize individual fastener capacity.
  • G90 Galvanized finish for corrosion resistance.

Includes

  • (7) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
  • (1) Crescent Washer
Products specifications
material Carbon Steel
finish G90 Galvanized
height 8-11/16 inch
width 2-7/8 inch
base_width 3-3/8 inch
thickness 14 Gauge
fasteners_required All included
manufacturer Simpson Strong-Tie
*
*
*
