Simpson Strong-Tie H10A-2Z Hurricane Tie

Mfr.: Simpson Strong-Tie
Item #: I093023
Mfr. #: H10A-2Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $6.97
i h h

Description

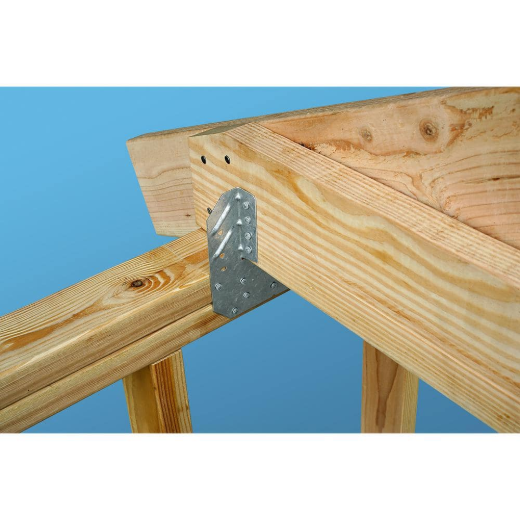

The Simpson Strong-Tie H10A-2Z Hurricane Tie provides a secure connection between a truss/rafter and the wall, specifically engineered to resist wind and seismic forces. Its U-shaped design allows for faster installation compared to single-sided ties, while integrated embossments enhance stiffness in critical areas for improved performance. This tie is suitable for high uplift applications and forms part of a continuous load path to strengthen structures against extreme weather.
  • ZMAX finish for enhanced corrosion resistance
  • Designed for wind and seismic force resistance
  • U-shaped design for faster installation

Features

  • Holds the rafter or truss on both sides for high uplift applications.
  • Embossments add stiffness in crucial areas for improved performance.
  • Optional fastener holes to connect roof blocking to the top plate.
  • Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.
  • Requires hot-dip galvanized fasteners meeting ASTM A153 specifications.

Includes

  • Each tie is sold individually.
Products specifications
Model H10A-2Z
Gauge 18
Finish ZMAX
Fastener Type Nail
Treated Lumber Yes
Manufacturer Simpson Strong-Tie
*
*
*
