Simpson Strong-Tie H10A Hurricane Tie

Mfr.: Simpson Strong-Tie
Item #: I093021
Mfr. #: H10A
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.27
i h h

Description

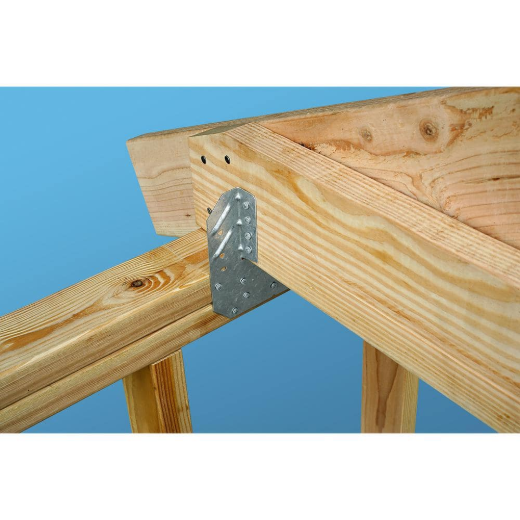

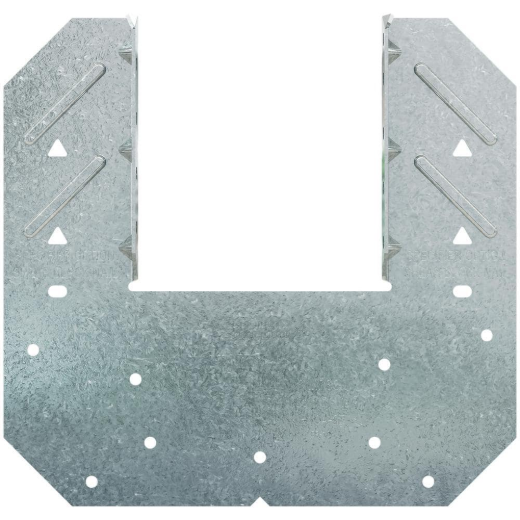

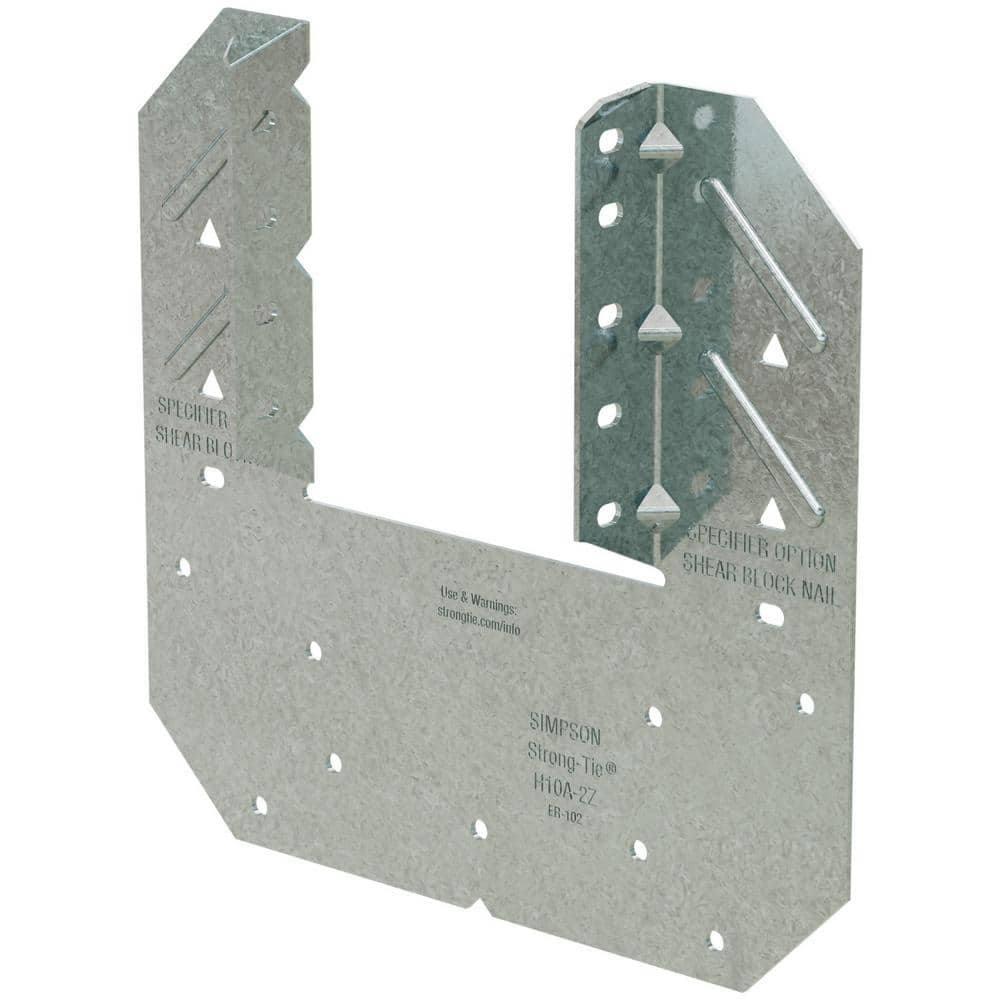

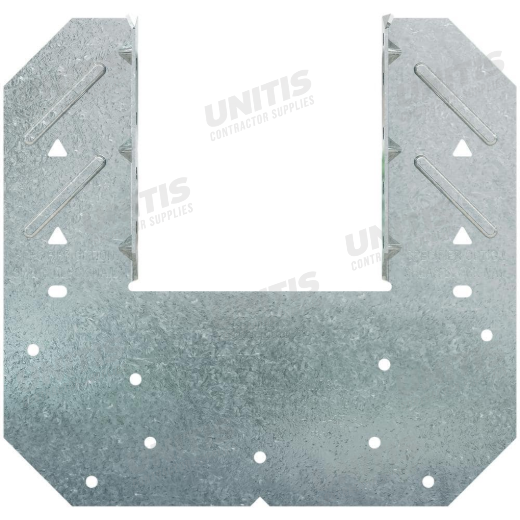

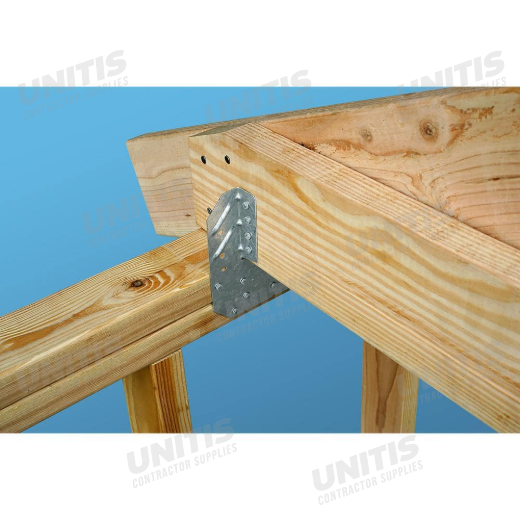

The Simpson Strong-Tie H10A Hurricane Tie is engineered to provide a robust connection for high uplift applications, securing rafters or trusses on both sides of the structure. Its efficient U-shaped design facilitates quicker installation compared to traditional single-sided ties. The tie features embossments that enhance strength in critical areas and is designed to form part of a continuous load path, crucial for resisting wind and seismic forces. For added versatility, it includes optional fastener holes for roof blocking and slots that allow for field bending up to a 6:12 pitch to accommodate angled blocking.
  • High uplift resistance
  • U-shaped design for faster installation

Features

  • Constructed from 18-gauge galvanized steel (G90 coating) for corrosion resistance.
  • Embossments add stiffness in crucial areas for improved performance.

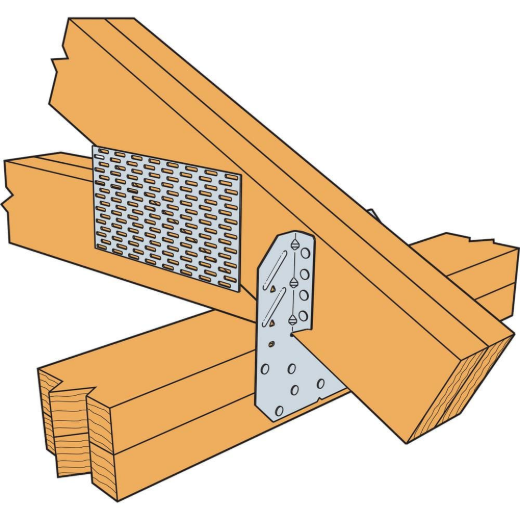

  • Optional fastener holes for connecting roof blocking to the top plate.
  • Slots allow field bending up to a 6:12 pitch for angled blocking.
  • H10A-2 model accommodates double-ply members.
  • H10AR model is designed for rough lumber sizes.

Includes

  • Sold as carton of 50.
Products specifications
material 18 ga steel
finish G90 Galvanized

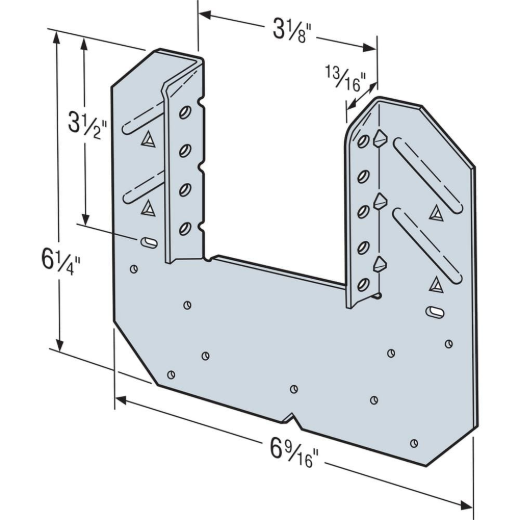

dimensions 6-1/4 inch x 6-9/16 inch x 13/16 inch
model variants H10A-2, H10AR
pitch allowance up to 6:12
*
*
*
